GE 324B8001G1 FREQSPD

Product Introduction

The GE 324B8001G1 FREQSPD is a specialized circuit board used within the GE Mark V Speedtronic turbine control platform. Current industrial references identify the board as a Frequency Speed Card, specifically designed for turbine-related applications. Versions associated with both 3600 Hz and 4800 Hz systems have been listed in industrial component databases.

This board is not a general-purpose controller. Instead, it performs a dedicated role in the collection, conditioning, and processing of speed-related signals.

Functional Role

Accurate speed measurement is essential in turbine operation. Therefore, the FREQSPD card works as an interface between field speed signals and the Mark V control processor.

The board may participate in functions such as:

• Rotational speed monitoring
• Frequency signal processing
• Turbine operating supervision
• Signal conditioning
• System feedback support

The exact functionality depends on the Mark V cabinet configuration and associated hardware.

Product Specifications

Brand: GE
Model: 324B8001G1
Board Name: FREQSPD Card
System: Mark V Speedtronic
Frequency Versions: 3600 Hz / 4800 Hz
Format: Printed Circuit Board
Typical Application: Turbine control systems
Installation: System-integrated module

Publicly available information does not provide a complete manufacturer datasheet for this legacy board. Consequently, voltage ratings, connector details, and environmental specifications should be confirmed using original system documentation.

Board Design

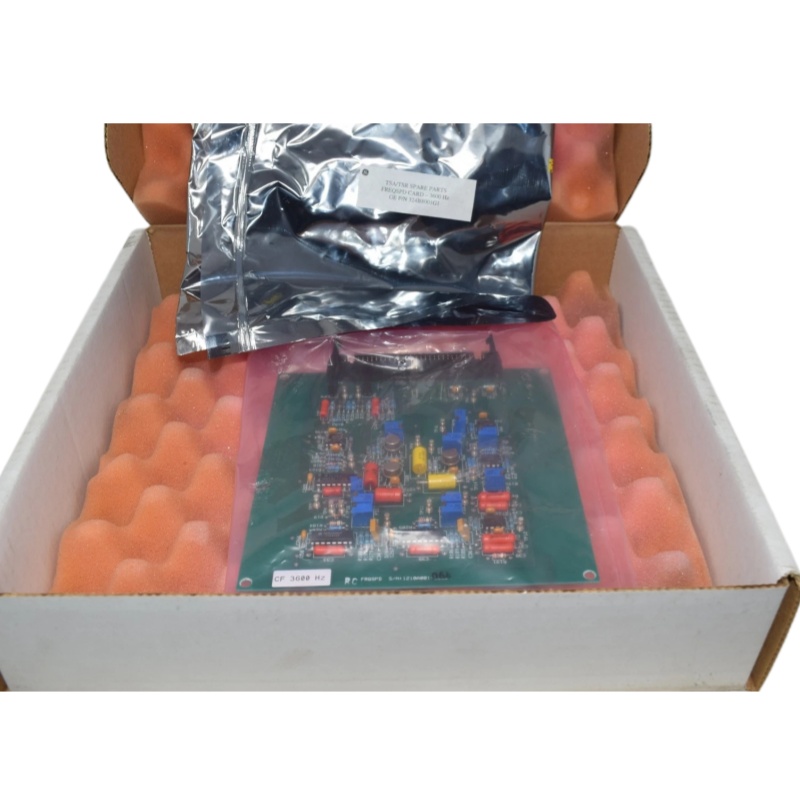

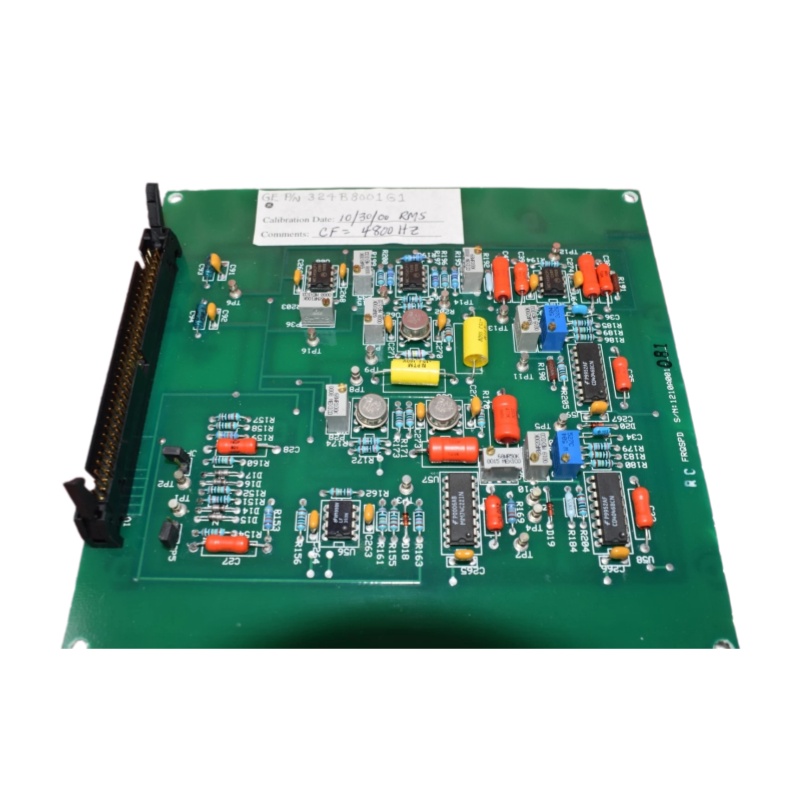

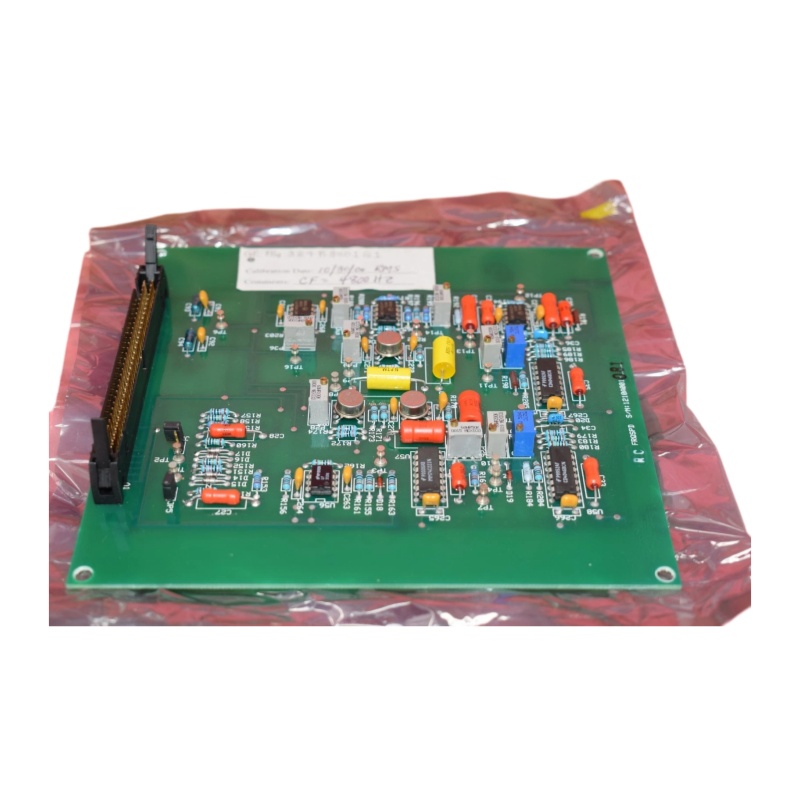

The 324B8001G1 uses a compact PCB structure integrating electronic components, signal interfaces, and processing circuits.

Its modular design allows maintenance personnel to replace a faulty board while retaining the overall turbine control architecture. This is especially valuable in facilities where Mark V systems remain in operation.

Industrial Applications

The GE FREQSPD card is suitable for:

• Power plants
• Gas turbine controls
• Steam turbine systems
• Industrial energy facilities
• Rotating equipment monitoring
• Legacy Mark V maintenance

Maintaining spare boards can reduce downtime and improve maintenance efficiency for critical equipment.

Replacement Recommendations

Before replacing the board, confirm the complete 324B8001G1 identification and verify whether the system uses the 3600 Hz or 4800 Hz configuration. Furthermore, inspect associated wiring, sensors, and connectors to ensure the original board failure was not caused by external issues.

After installation, perform signal checks and operational tests to confirm proper turbine-speed feedback and stable control performance. For long-term support of Mark V systems, keeping compatible spare FREQSPD boards available can help minimize unexpected outages.
