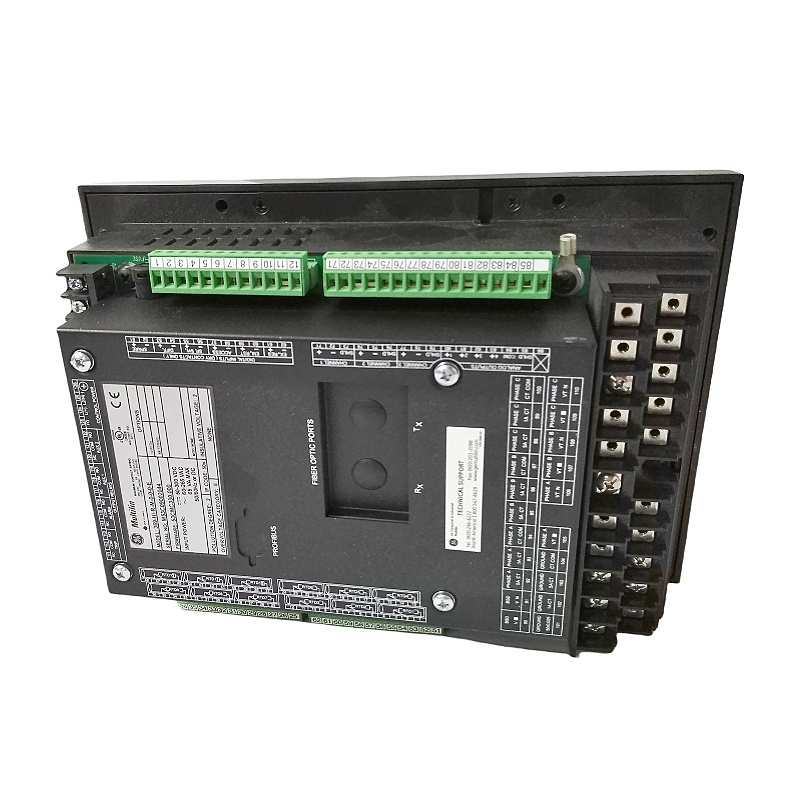

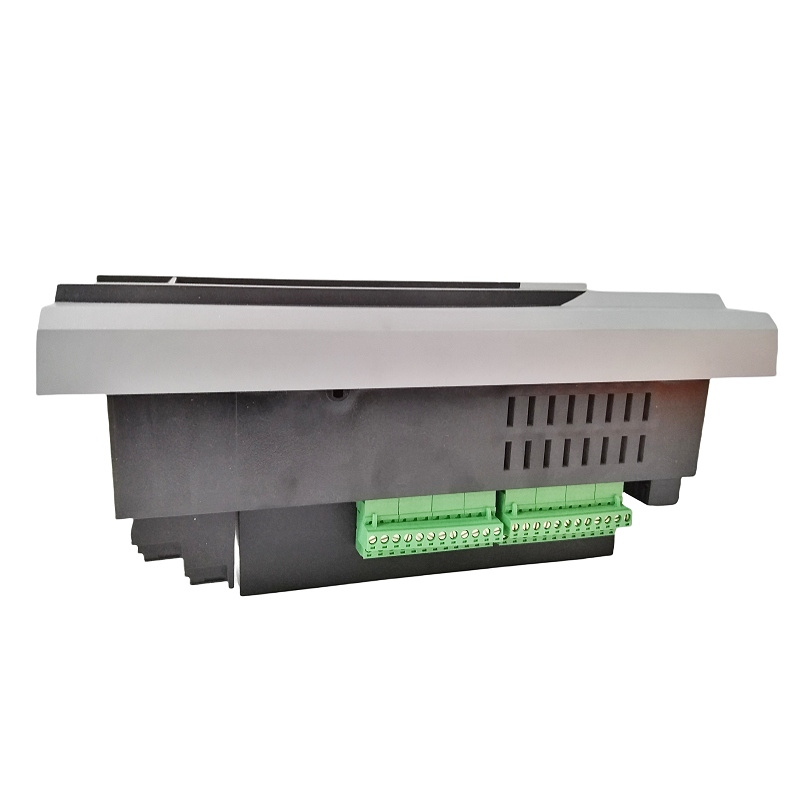

GE 369-HI-R-0-0-0-E

GE 369-HI-R-0-0-0-0-E is a high-performance intelligent motor protection relay in the GE Multilin 369 series. Specifically designed for medium and high-voltage three-phase asynchronous/synchronous motors, it integrates comprehensive electrical protection, diagnostic control, and energy efficiency monitoring functions. This product is equipped with enhanced diagnostic features, including an enhanced panel, motor health report, motor start data logger, and a more advanced event logger. It is mainly used to monitor and protect medium-sized AC motors and their auxiliary equipment, providing key insights into system performance and early warnings of faults.

Parameters

• Model: GE 369-HI-R-0-0-0-0-E
• Current Input: For HI version: direct connection of 1–100A AC (no CT required, built-in Rogowski coil)
• Rated Voltage: 24–240V AC/DC (wide power supply range)
• Communication Interface: RS485 Modbus RTU (standard configuration), optional Ethernet (expansion module required)
• Input Voltage Range: 0-1000V
• Output Current Range: 0-10A
• Operating Temperature Range: -40°C to 85°C
• Dimensions: 11cm × 30cm × 21cm
• Weight: Approximately 10 pounds

Product Features

• Powerful Functionality: Integrates multiple protection functions, such as overcurrent, overvoltage, undervoltage, phase sequence error, ground fault, and temperature monitoring.
• High Reliability: Adopts high-quality components and advanced technology to ensure long-term stable operation.
• Versatility: Supports multiple communication protocols (e.g., Modbus RTU, DNP3, IEC 61850) and software configuration, facilitating integration and customization.
• User-Friendly: Provides an intuitive user interface and configuration tools for easy operation and maintenance.

Structure and Composition

• Structure: Adopts a modular design with a robust structure, suitable for use in harsh environments.
• Composition: Includes input terminals, output terminals, communication interfaces, a display panel, and a power module.

Application Fields

• Industrial Automation: Used for motor control and protection of industrial equipment.
• Power Systems: Used for protection and control of auxiliary systems and power generation systems.
• Pump Stations and Wind Power Generation: Used for protection and control of pump station equipment and wind power generation systems.
• Motor Protection: Provides comprehensive motor protection functions to prevent faults such as overload and short circuit.

Installation and Maintenance

• Installation Method: Usually adopts wall-mounted or DIN rail mounting, with simple installation procedures.
• Maintenance: Features a compact structure for easy installation and maintenance, and supports remote monitoring and diagnosis.

————————————————————————————————————-
