GE 4199J53-1

Product Introduction

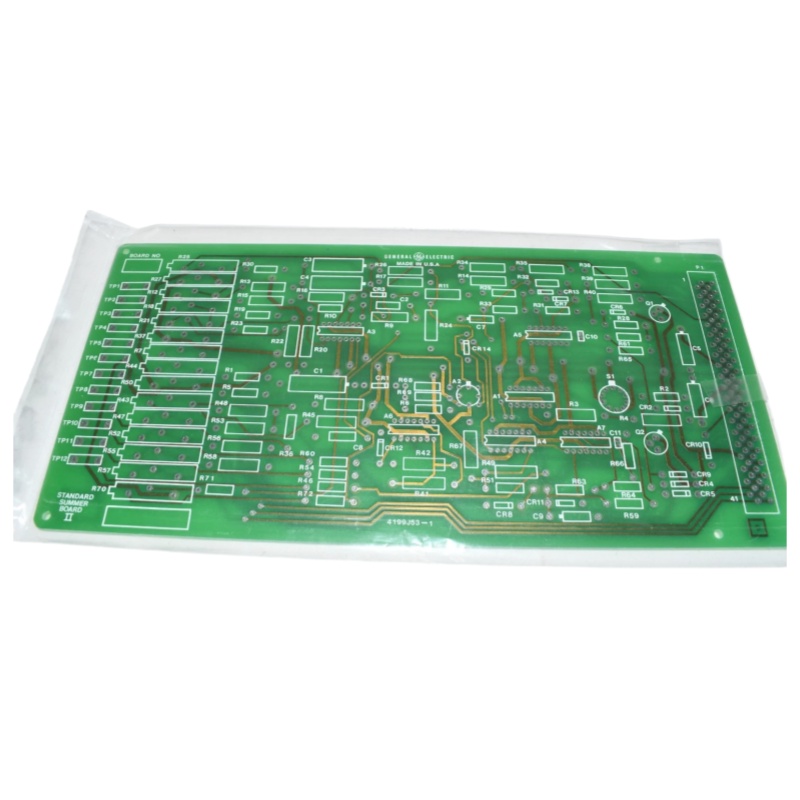

The GE 4199J53-1 is a specialized Standard Summer Board designed for integration into GE industrial equipment. Multiple industrial component references identify the 4199J53-1 under this designation, with one source also associating it with the 4199J51-G01 reference.

Its dedicated architecture makes the board useful when maintaining established GE control systems. In particular, replacing a failed circuit board can help preserve the original equipment configuration and reduce the need for extensive system modifications.

Functional Characteristics

The term Standard Summer Board indicates a circuit designed around signal-summing functionality. In an industrial control environment, several electrical signals may need to be combined or conditioned before being supplied to another part of the control system.

The exact implementation depends on the original GE equipment. Consequently, the 4199J53-1 should be treated as a system-specific component rather than a universal signal-conditioning board.

Main Specifications

Manufacturer: General Electric
Part Number: 4199J53-1
Board Designation: Standard Summer Board
Component Category: Industrial printed circuit board
Primary Function: Signal summing / signal conditioning
Installation: Integrated into compatible GE equipment
Related Reference: 4199J51-G01
Typical Service: Maintenance, replacement, and refurbishment

Publicly accessible information does not provide a complete manufacturer datasheet for this legacy component. Therefore, users should confirm operating voltage, input/output characteristics, connector assignments, physical dimensions, and environmental limits before placing the board into service.

Design and Construction

The board uses a conventional industrial PCB architecture. Electronic components are mounted on the circuit substrate, while conductive traces provide the necessary electrical paths between functional sections and external interfaces.

The compact board format allows it to be incorporated into a larger control assembly. In addition, its dedicated design can make board-level replacement a practical solution for older equipment that remains operational but requires individual component servicing.

Where It Fits

The 4199J53-1 is most relevant to industrial facilities maintaining legacy GE systems. Potential environments include:

• Factory automation
• Industrial motion-control systems
• Electrical control cabinets
• Process-control equipment
• Machinery maintenance
• Legacy equipment refurbishment
• Industrial control spare-parts programs

For critical installations, keeping a compatible spare board can also reduce repair time when an installed unit becomes defective.

Replacement Guidance

First, verify the exact 4199J53-1 identification on the existing board. Next, compare the replacement PCB’s physical arrangement and connectors with the original assembly.

Also inspect the connected wiring before powering up the replacement. If the original board failed because of an external electrical problem, installing a new board without addressing the underlying issue could result in another failure.

Finally, perform controlled functional testing after installation. Confirm that the relevant signals are being combined and transferred correctly within the host system before returning the equipment to normal production.
