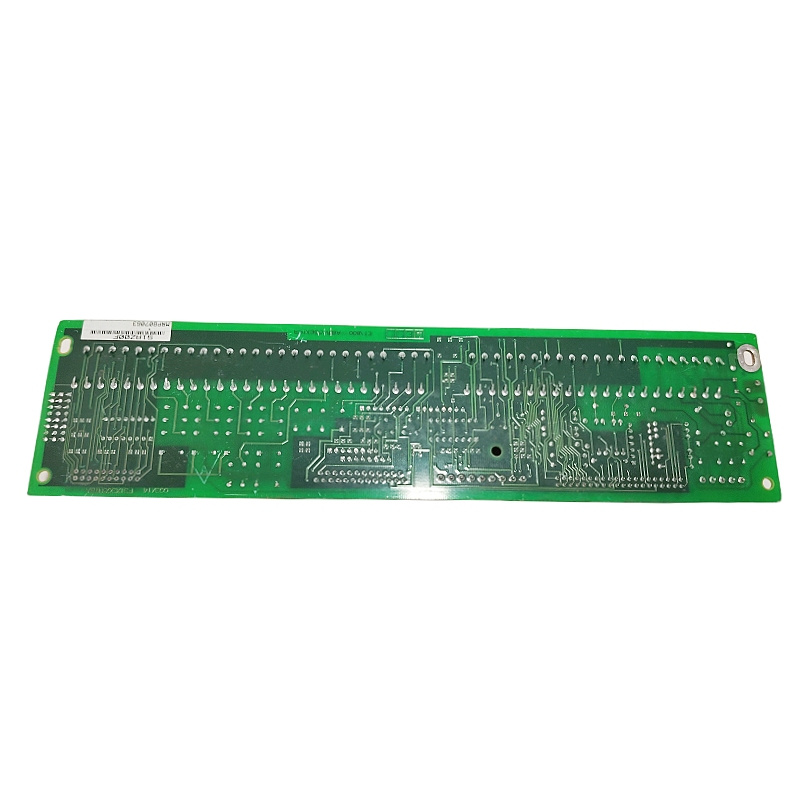

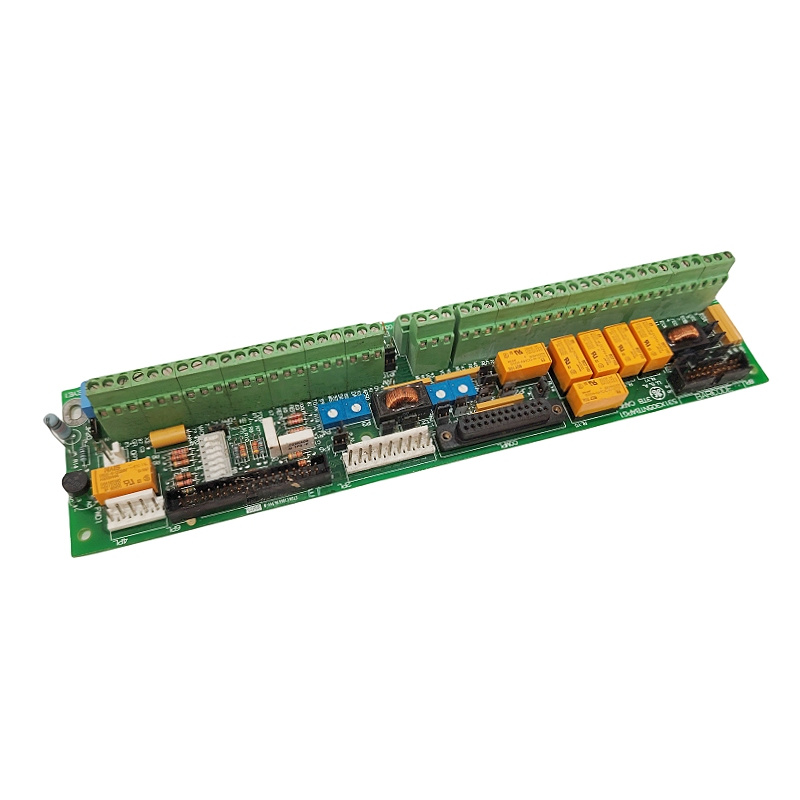

GE 531X305NTBAPG1 driver module

Short Description:

The GE 531X305NTBAPG1 is part of the GE 531X series of drives, mainly used in industrial automation and control systems. It offers multiple interfaces for connecting external devices such as sensors, actuators, encoders, etc., thereby expanding the functionality and flexibility of the drive. This module is widely applied in fields like industrial automation, power systems, process control, data acquisition, and building automation.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Brand: General Electric

Manager: Jinny

E-mail: sales5@xrjdcs.com

Tel: + 86-15359273791

( WhatsApp )Wechat: + 86-15359273791

Warranty: one year

In stock: In stock

Send email to us Download as PDF

Product Detail

Product Tags

GE 531X305NTBAPG1

Overview

Parameters

Model: 531X305NTBAPG1
Brand: GE
Type: NTB/3TB terminal board
Input voltage: Accepts 24V DC or 120V AC power input
Output voltage: Provides regulated +5V and +15V power outputs, as well as unregulated 24V DC or 120V AC power supply
Relay outputs: Offers seven types of A and C relay outputs, with contactors rated at 120V AC
Encoder interface: Supports differential A-quad-B encoder interface
Potentiometers: Includes four potentiometers for adjusting low-level analog I/O
Operating temperature: -40°C to 85°C
Installation method: Suitable for installation in control cabinets, with protection class IP20

Product Features

Multi-functional interfaces: Provides various interfaces, including serial ports, relay outputs, analog inputs/outputs, etc., which can connect various types of devices.
Power supply: Offers power supplies with multiple voltages to meet the power supply needs of different devices.
Configurability: Can be configured through jumpers and other methods to adapt to different application scenarios.
High reliability: Designed for industrial environments with high reliability.
Signal conditioning: Performs amplification, filtering, and other processing on analog signals.
Digital I/O: Provides digital input and output interfaces for controlling external devices.
Encoder interface: Connects to encoders for measuring speed, position, etc.
Power supply: Provides power for external devices.

Structure and Composition

The GE 531X305NTBAPG1 is a modularly designed terminal board, usually installed in the control cabinet of the GE 531X series drives. It offers multiple interfaces and power supplies for connecting external devices and systems. The structural design of this module enables it to adapt to various industrial environments and provide high reliability and stability.

Application Fields

Industrial automation: Used to control and monitor driving devices such as motors and actuators, improving production line efficiency and flexibility.
Power systems: Control and monitor equipment such as generators and motors in power plants to ensure the stable operation of power systems.
Process control: In industries such as chemical engineering, petroleum, and pharmaceuticals, real-time monitoring and adjustment of key parameters in the production process are carried out to ensure that equipment operates according to predetermined parameters and standards.
Data acquisition and processing: Connect to data acquisition systems to collect, process, and transmit data generated by sensors and instruments.
Building automation: Control and monitor subsystems such as lighting, air conditioning, and security.

Installation and Maintenance

Installation: During installation, the installation parameters provided by the manufacturer should be followed to reduce the risk of circuit board damage. Installation should be operated and carried out by qualified personnel.
Maintenance: Regularly inspect and maintain the equipment to ensure its normal operation. If problems are encountered, contact the manufacturer or professional technicians for repair.
