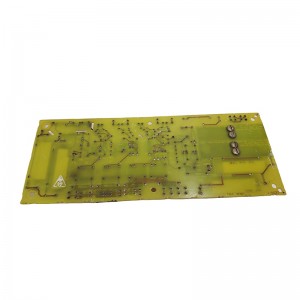

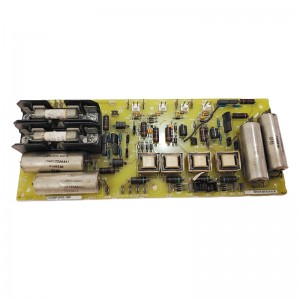

GE DS200FSAAG1ABA power amplifier module

Short Description:

The GE DS200FSAAG1ABA is a field power amplifier module designed by GE for industrial automation and control systems. Its primary function is to provide power and signal amplification to support control and drive tasks in industrial automation systems. This module is widely used in control systems across various fields, including power plants, industrial automation systems, wind power generation, and gas turbines

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Brand: General Electric

Manager: Jinny

E-mail: sales5@xrjdcs.com

Tel: + 86-15359273791

( WhatsApp )Wechat: + 86-15359273791

Warranty: one year

In stock: In stock

Send email to us Download as PDF

Product Detail

Product Tags

GE DS200FSAAG1ABA

I. Overview

II. Parameters

While specific technical parameters (such as voltage, current, and dimensions) are not entirely consistent across different sources, the main parameters and characteristics based on multiple references are as follows:

Input voltage: Typically industrial standard voltages (e.g., 24VDC or 125VDC).
Output voltage: Usually 24VDC, used to drive related equipment.
Output current: Up to 10A, suitable for driving industrial equipment.
Dimensions: Approximately 25.4 cm × 10.2 cm × 3.5 cm (some sources mention 16cm × 16cm × 12cm).
Weight: About 0.4 kg or 0.8 kg.
Installation method: Usually installed in control cabinets or racks, supporting DIN rail mounting.

III. Product Features

Power amplification function: Provides stable power and signal amplification for control systems, supporting the stable operation of industrial automation systems.
Signal isolation: Offers isolation between control signals and high-voltage drive circuits, enhancing system safety.
Protection functions: Built-in overcurrent and overvoltage protection to ensure safe system operation.
Modular design: Facilitates installation, maintenance, and replacement.
Anti-static design: Anti-static treatment is required during transportation and use to avoid damage to the circuit board.
High reliability: Uses high-quality electronic components to ensure long-term stable operation.

IV. Structure and Composition

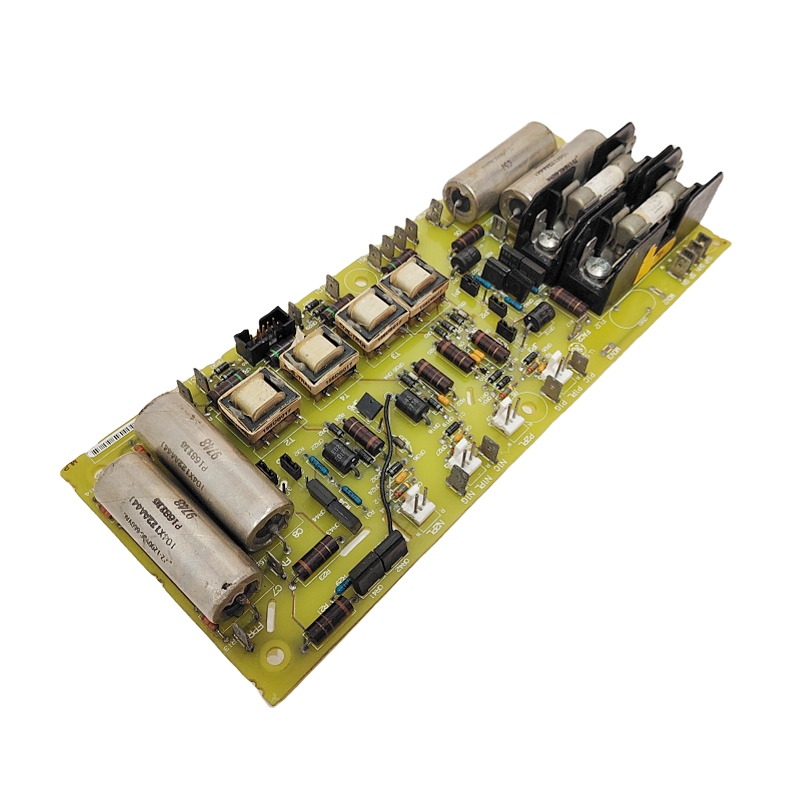

Physical structure: Includes 5 jumpers, 1 10-pin connector, 2 fuses, multiple test points, and multiple connectors (such as P1PL, P2PL, N1PL, N2PL).
Functional modules: Comprises power amplification, signal amplification, protection circuits, and test points, among others.
Installation method: Usually installed in control cabinets or racks, supporting DIN rail mounting.

V. Application Fields

Power industry: Used in control systems of equipment such as steam turbines, wind turbines, and gas turbines in power plants.
Industrial automation: Widely applied in industrial automation systems, including production line control, process control, and equipment driving.
Other industrial fields: Such as power transmission, substations, power distribution, and industrial machinery.

VI. Installation and Maintenance

Installation:

Anti-static measures must be followed, such as wearing anti-static wristbands and using sealed bags for transportation and storage.
During installation, ensure that connectors and jumpers are set correctly.

Maintenance:

Regularly inspect connectors, fuses, and test points to ensure the equipment operates normally.
Conduct regular system diagnostics and troubleshooting.
