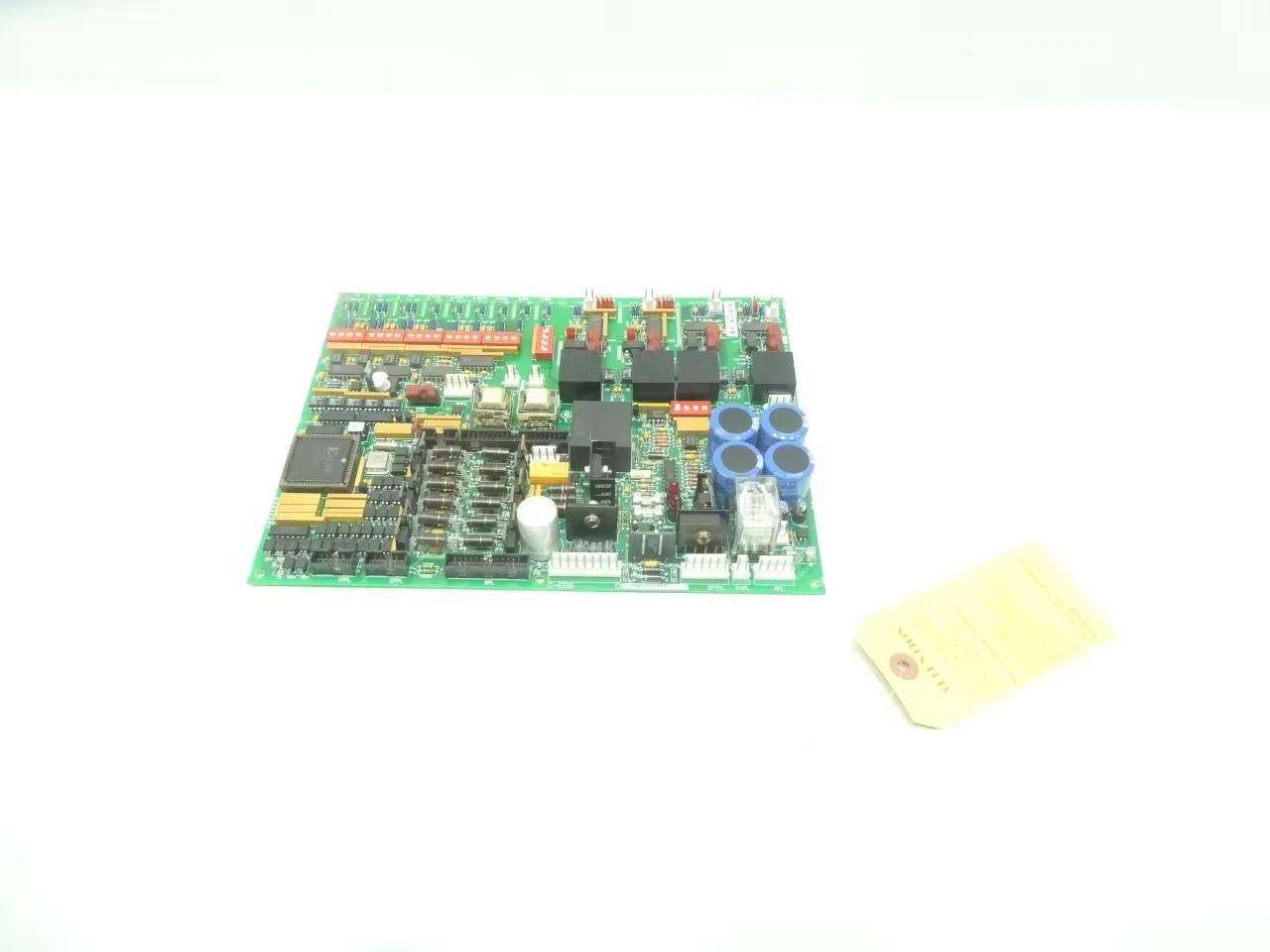

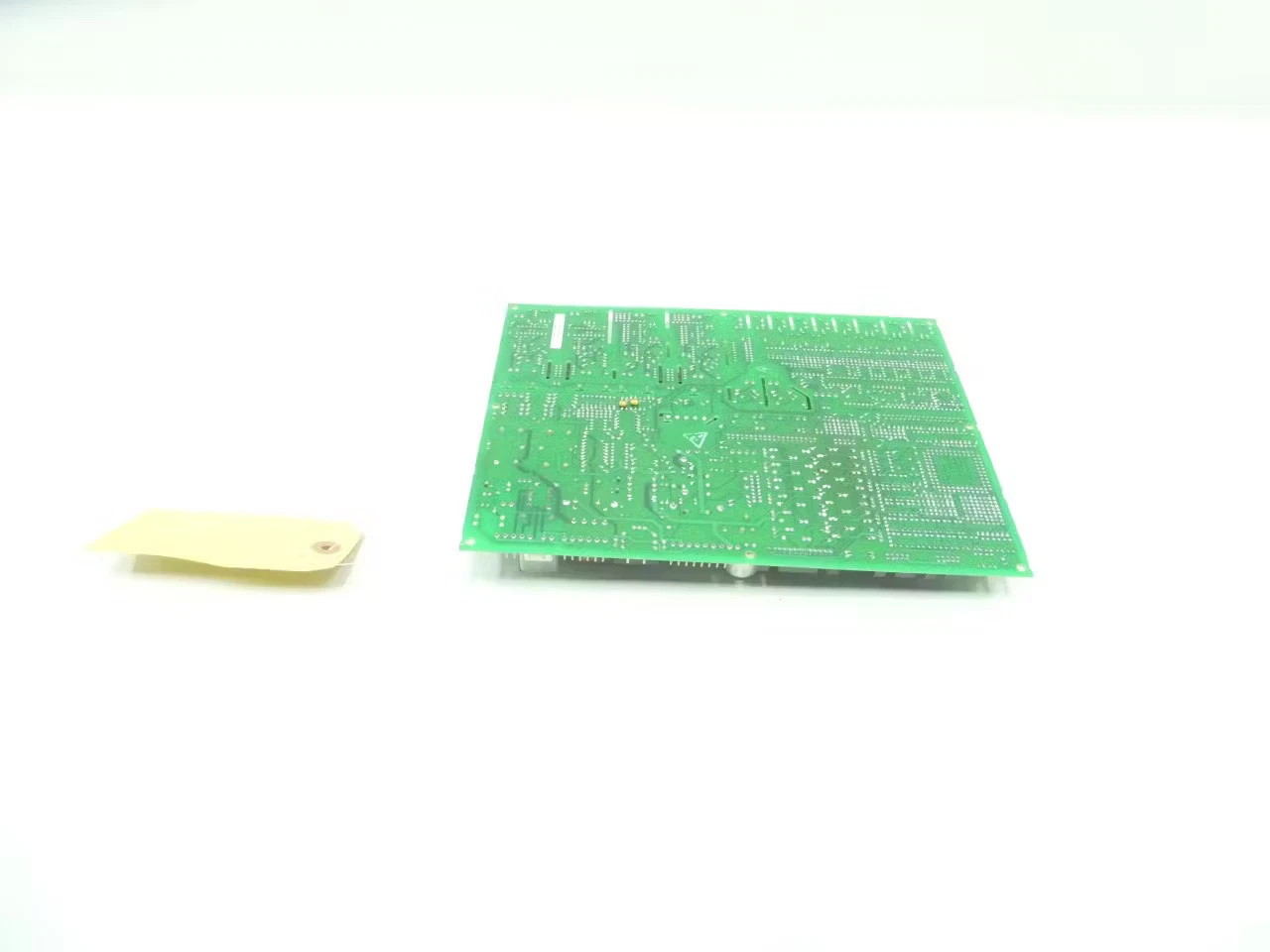

GE DS200DCFBG2BNC

The GE DS200DCFBG2BNC is a DC Field Bus terminal board/feedback module developed by General Electric (GE) for its Speedtronic Mark V series control systems. It is mainly used for closed-loop control and signal acquisition in gas turbines, steam turbines, and other large-scale industrial processes. It can provide reliable analog, digital, and temperature signal interfaces in harsh industrial environments.

Main Technical Specifications

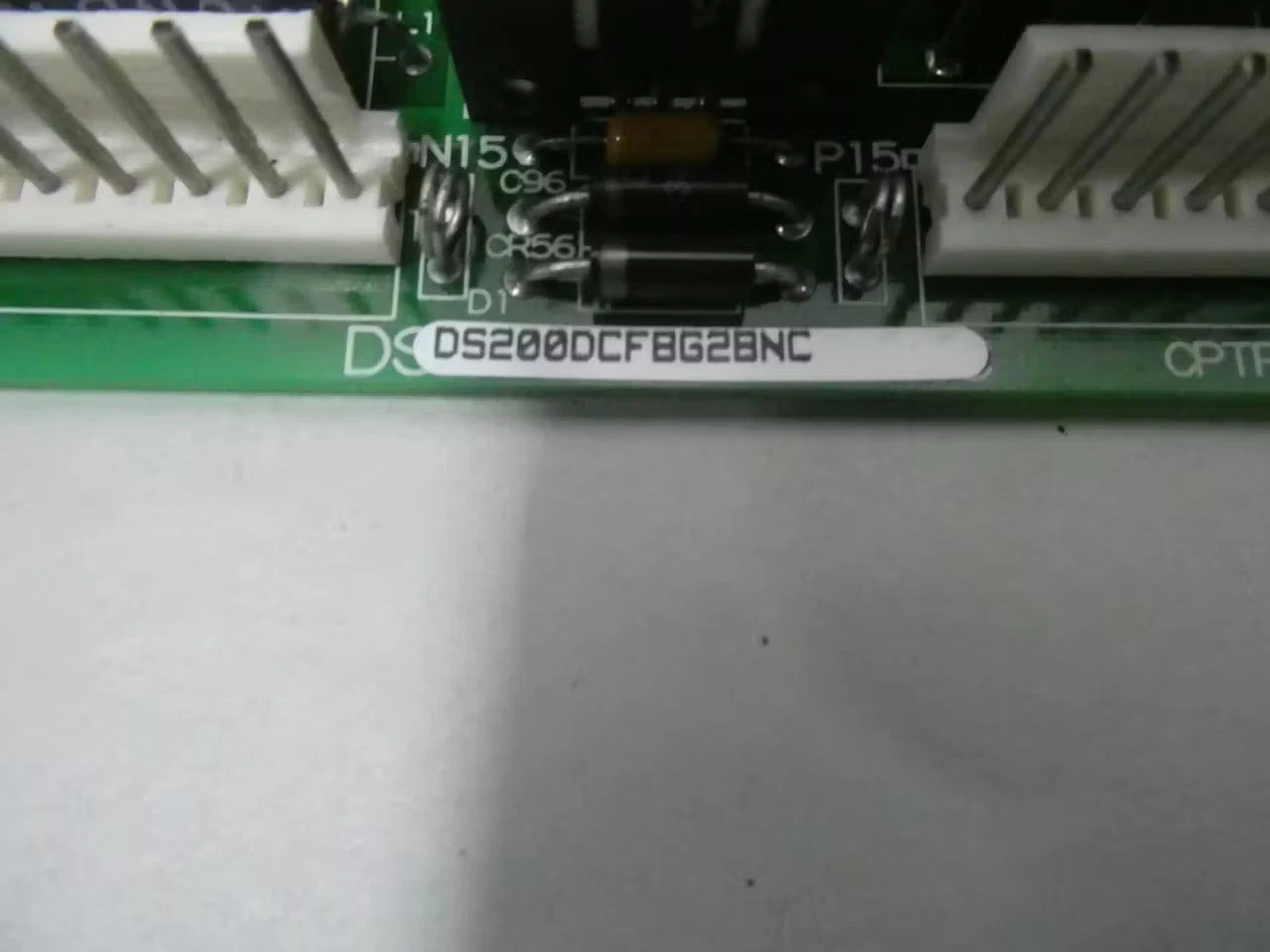

• Model: DS200DCFBG2BNC
• Supply Voltage: 24 ~ 30 V DC (powered from the I/O package)
• Operating Temperature Range: -25 °C ~ +70 °C
• Dimensions: Approximately 6.5 × 3.5 × 5.0 inches
• Weight: Approximately 1.3 ~ 1.5 kg
• Interfaces:
  • Screw terminals (analog/digital/thermocouple/RTD)
  • Dual BNC connectors (for vibration probes)
  • DC Field Bus port (120 Ω termination)
• Signal Support:Resolution/Accuracy: 16-bit ADC, 14-bit DAC, linear error of approximately ±0.05% FSR
  • Analog current 4-20 mA, ±10 V
  • Digital 24 V DC I/O
  • RTD (Pt100/1000)
  • Thermocouple (J/K/T/E)
  • Vibration signals (via BNC)
• Isolation Voltage: 250 V AC/DC (field side – system side)
• Protection Class: IP20 (indoor DIN rail mounting)
• Compliance Standards: UL 508, CE, RoHS, industrial EMI/RFI immunity

Product Features

1. Multifunctional Signal Acquisition: It provides analog, current, digital, RTD, thermocouple, and vibration channels at one time, meeting the multi-source signal requirements of complex process control.
2. High Resolution and Fast Response: 16-bit ADC and response time of less than 1 ms ensure real-time monitoring of key parameters.
3. Robust and Reliable: Industrial-grade temperature range, 250 V isolation, and compliance with safety certifications such as UL/CE make it suitable for on-site environments with high temperature and high noise.
4. Flexible Installation: Supports standard 35 mm DIN rail or panel mounting, facilitating quick integration into existing control cabinets.
5. Modular Design: Equipped with 7 DIP switches, 12 jumpers, and 3 fuses, allowing configuration of voltage, signal routing, and protection according to on-site needs.
6. Strong Compatibility: Compatible with GE Speedtronic Mark V e and earlier Mark V systems, and backward compatible with previous generations of hardware.

Structure and Composition

• Power Supply and Protection Unit: Includes input filtering, voltage stabilization circuit, and three fuses to provide overcurrent and overvoltage protection.
• Analog Front End: Composed of multiple amplifiers, filters, and a 16-bit ADC, responsible for collecting current, voltage, RTD, and thermocouple signals.
• Digital I/O Area: 24 V DC relay or transistor output, with LED indicators to show the working status.
• BNC Vibration Channel: Dedicated shielded BNC interface with a built-in 120 Ω termination resistor, suitable for on-site vibration sensors.
• DC Field Bus Interface: Bus port in RJ45/terminal form, providing 120 Ω termination and enabling multi-board communication.
• Configuration and Diagnosis: 7 DIP switches for voltage selection and function enabling, 5 TP test points, and 12 jumpers for on-site debugging and fault location.

Typical Application Fields

• Gas Turbine and Steam Turbine Control: Closed-loop regulation of speed, position (LVDT/RVDT), and magnetoresistive probe (MRP) signals.
• Power Plants and Energy Systems: Real-time acquisition and control of process variables such as flow, pressure, and temperature.
• Chemical and Petroleum Refining: Integration of sensor signals and safety monitoring in high-temperature and high-pressure environments.
• Transportation and Rail Systems: Vibration monitoring and status diagnosis of key components.
• General Industrial Automation: Any scenario that requires multiple analog/digital signal inputs and communicates with the upper system via DC Field Bus.

Installation and Maintenance Points

Installation

1. Fix the module on a standard 35 mm DIN rail or use panel screws for panel mounting.
2. Ensure the supply voltage is within the range of 24-30 V DC, and the power supply has sufficient filtering and voltage stabilization.
3. Use DIP switches to configure the voltage level and functions as needed, and enable the corresponding signal channels.
4. When connecting the BNC vibration probe, ensure the use of shielded cables and check whether the 120 Ω termination is correctly connected.

Wiring

1. Analog signal cables should use shielded twisted pairs and be kept separate from high-power cables to reduce EMI interference.
2. Digital I/O and DC Field Bus use terminal blocks or RJ45 that meet industrial standards to ensure reliable contact.

Debugging

1. Use the TP test points and LED indicators provided on the board to check the status of the power supply, signal input, and fuses.
2. Use an on-site portable multimeter or oscilloscope to verify the amplitude and phase of the analog signal, and confirm that the ADC sampling is normal.

Maintenance

1. Regularly check the integrity of fuses, jumpers, and DIP switches to prevent poor contact caused by vibration or corrosion.
2. During high-temperature seasons or when the ambient temperature is close to the upper limit, ensure good ventilation and heat dissipation, and install heat sinks if necessary.
3. If abnormal noise or signal drift is found, first check the termination resistor and shielding integrity of the BNC vibration channel, then check the power supply filtering.

————————————————————————————————————-
