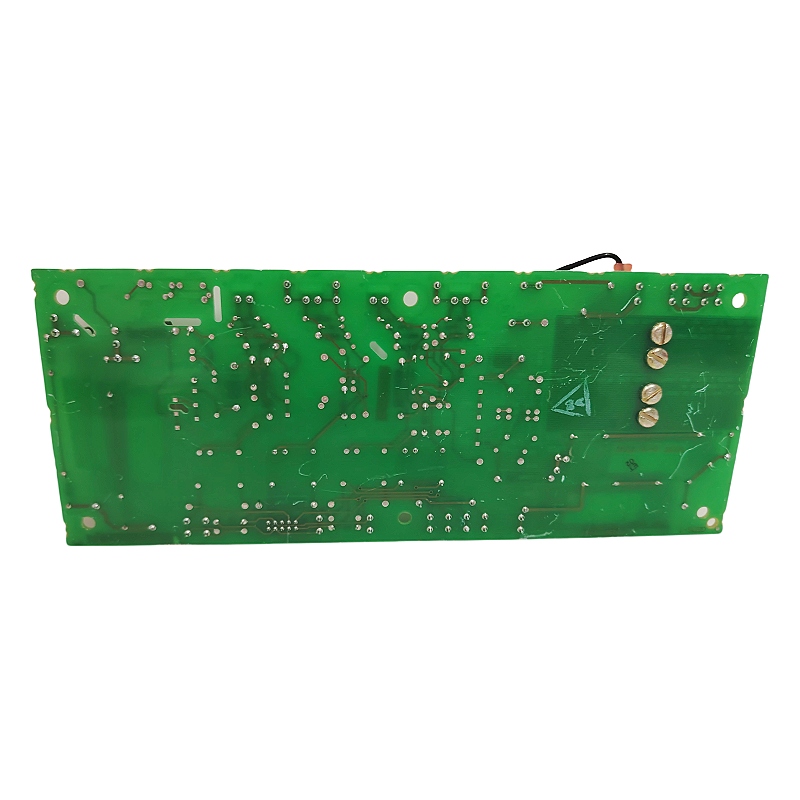

GE DS200FSAAG2ABA

I. General Description

II. Technical Parameters

1. Input and Output Voltage
   • Input voltage: Supports ranges such as 24VDC, 125VDC, 115-230VAC, 90-260VAC.
   • Output voltage: 24VDC.
   • Maximum output current: 10A.
2. Dimensions and Weight
   • Dimensions: 100mm x 50mm x 20mm.
   • Weight: 0.5kg.
3. Operating Temperature Range
   • Operating temperature range: -40°C to 70°C.
4. Other Parameters
   • Response time: <1ms.
   • Accuracy: ±0.1%FS.
   • Communication interfaces: Supports RS485, EtherNet/IP, Modbus TCP, etc.

III. Product Features

• High-precision amplification function: Provides high-precision signal amplification to ensure the stable operation of industrial automation systems.
• Fast response: With a response time of less than 1ms, it ensures that the system can quickly respond to changes in control signals.
• High reliability: Adopts high-quality components to ensure long-term stable operation.
• Modular design: Facilitates installation, maintenance, and expansion.
• Protection functions: Equipped with overvoltage, undervoltage, overcurrent, and overheating protection functions to ensure system safety.

IV. Structure and Composition

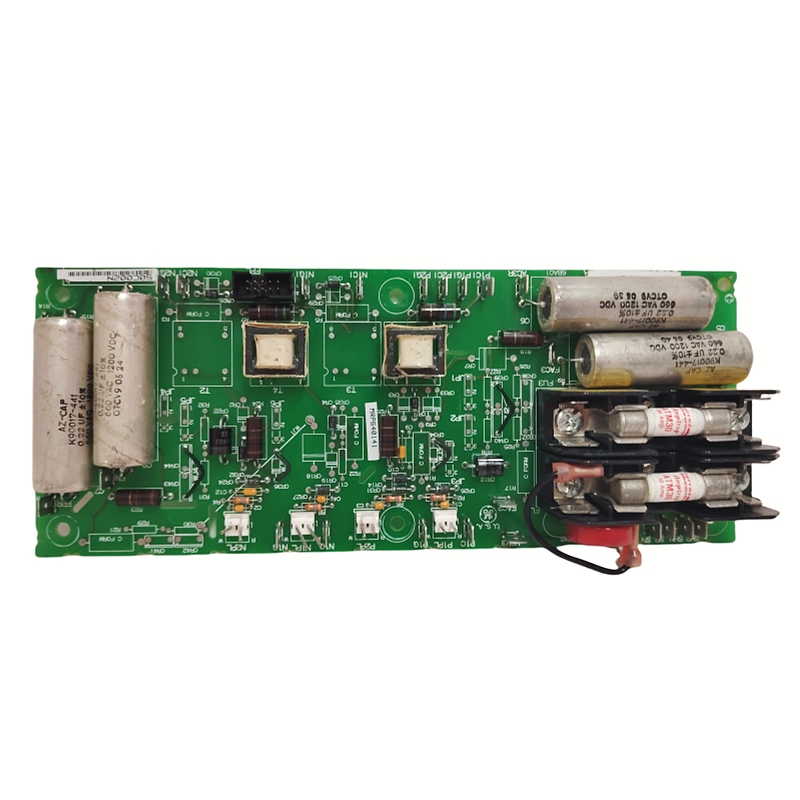

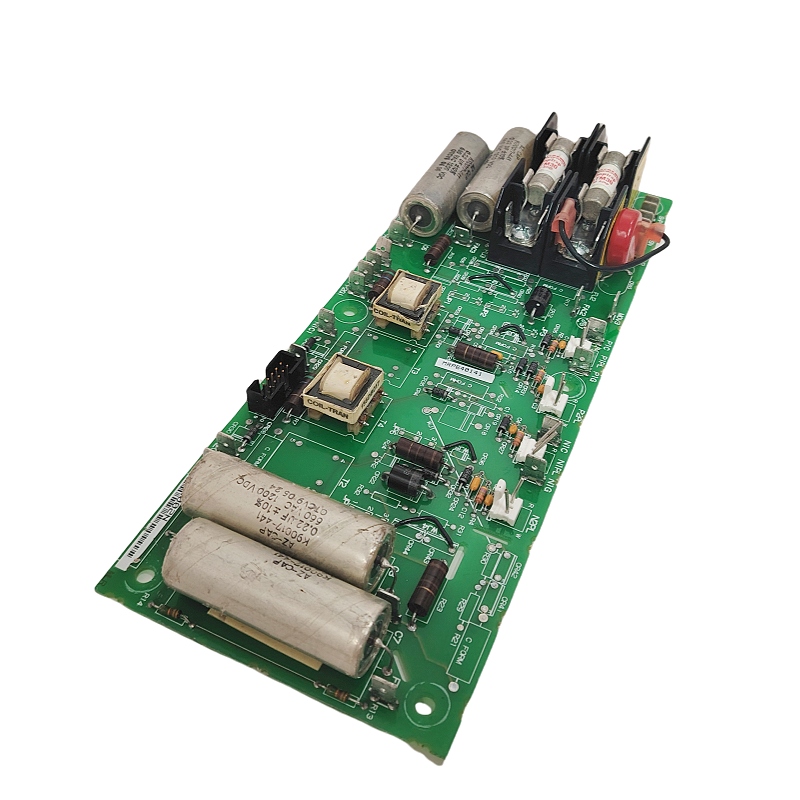

• Hardware composition: Includes 5 jumpers, 10-pin connectors, 2 fuses, 4 2-pin connectors, test points, etc.
• Installation method: Supports rail mounting or DIN rail mounting.
• Protective coating: Uses a normal PCB coating to enhance environmental adaptability.

V. Application Fields

• Industrial automation: Widely used in industrial automation systems to achieve precise control and monitoring of various processes.
• Power industry: Applied in power plants, wind power generation, petroleum, natural gas, mineral mining and other industrial fields.
• Process control: Used in production process control of chemical industry, metallurgy, papermaking, water conservancy and other industries.
• Electromechanical equipment control: Used for controlling motors, pumps, valves and other equipment.

VI. Installation and Maintenance

• Installation: During installation, it is necessary to follow the requirements of the product manual to ensure the correct connection of connectors and cables, so as to avoid damaging the equipment.
• Maintenance: Regularly check the equipment status to ensure the stable operation of the system. When replacing the module, attention should be paid to matching the jumper positions to ensure consistent functions.
• Maintenance recommendations: It is recommended to conduct regular system inspections and maintenance to extend the service life of the equipment.

————————————————————————————————————-
