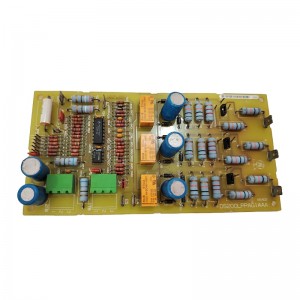

GE DS200LPPAG1AAA

The GE DS200LPPAG1AAA is a Line Protection Panel Board (LPPB) module manufactured by General Electric (GE). It is widely used in industrial automation and power systems. Below is a detailed outline:

I. Product Overview

• Brand: GE (General Electric)
• Model: DS200LPPAG1AAA
• Product Type: Line Protection Panel (LPPB) module
• Application Fields: Power plants, industrial drive systems, and other power systems requiring protection. It is used to protect equipment such as generators, transformers, large motors, and fans.

II. Technical Specifications

1. Functional Description

• Line Protection: Provides multiple protection functions including overcurrent protection, overvoltage protection, ground fault protection, and undervoltage protection to ensure the safe operation of power systems.
• Signal Processing: Processes signals from various sensors and transmitters, performs logical judgments, and controls operations.
• Alarm Output: Issues alarm signals to alert operators when a fault occurs.
• Interface and Connection:
  • Interface Type: Equipped with 2 RJ45 interfaces, supporting Ethernet communication.
  • Connection Length: Supports a maximum connection length of 100 meters.
  • Network Scalability: Supports up to 65,535 EtherCAT terminal modules, and compatible with linear and star topologies.

2. Electrical Parameters

• Input Signals: Analog, digital.
• Output Signals: Alarm signals, control signals.
• Power Requirements: Supports power redundancy, 24V system, and field power supply. The system power supply capacity is 5V/2A, and it can provide up to 10A of power for I/O components through power contacts.

3. Environmental Parameters

• Operating Temperature: -10°C to 60°C.
• Storage Temperature: -40°C to 85°C.
• Protection Level: Designed for industrial environments, with certain anti-vibration, dustproof, waterproof, and temperature resistance properties.

III. Product Features

• High Reliability:
  Adopts a modular design and supports power redundancy, ensuring the system automatically switches to the backup power supply when the main power supply fails, thus improving system availability and reliability.
• Easy Installation and Maintenance:
  The modular design simplifies installation and maintenance. It can be installed on standard guide rails or panels through simple plug-and-play operations.
• Strong Compatibility:
  Compatible with other GE automation products, such as Programmable Logic Controllers (PLCs), Input/Output (I/O) modules, and communication modules, forming a complete automation solution.
• Flexible Topology Expansion:
  Supports linear and star topologies, allowing users to build network structures according to actual needs, improving system scalability and adaptability.
• High-Precision Control and Monitoring:
  Adopts advanced control algorithms and sensor technology to achieve precise control and efficient monitoring of specific industrial processes.

IV. Structure and Composition

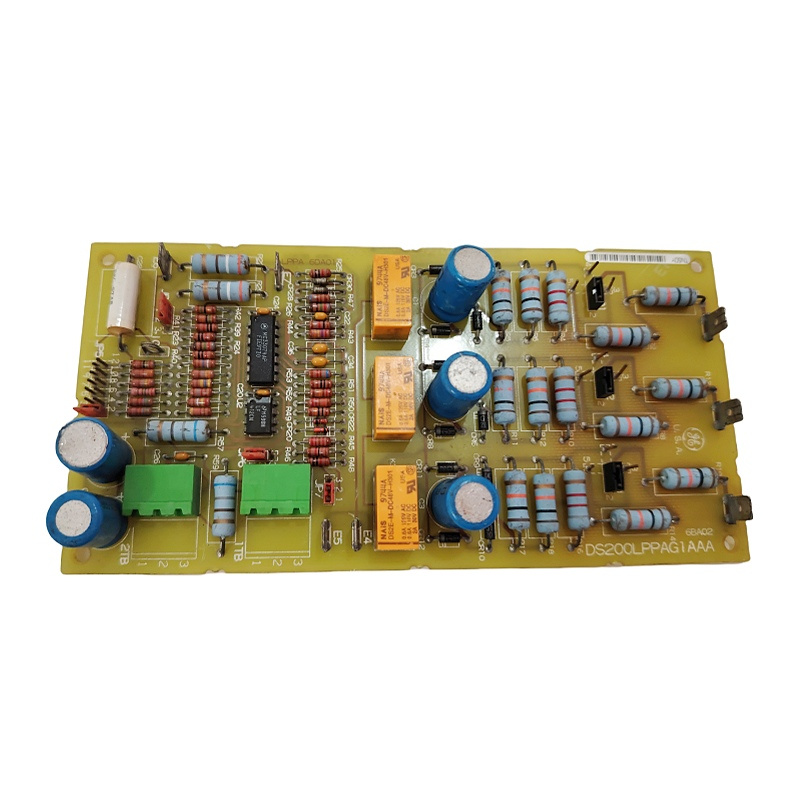

• Jumpers and Terminal Blocks: The board is equipped with seven jumpers (JP1 to JP7) and two terminal blocks, each with three terminals for wiring and signal transmission.
• Test Points: Test points are provided on the board for easy diagnosis and testing.
• Installation Method: The board is mounted on the bracket of another component of the drive.
• Signal Lines: Signal lines connected to the board come from another component, used for signal transmission and control.
• Diagnostic Tools: If the board is suspected of not working properly, the diagnostic tools attached to the drive can be used to generate success and component health reports.

V. Application Fields

• Power Industry: Used for protection in power systems such as substations, power plants, and distribution networks.
• Industrial Automation: Used for power protection and control of mechanical equipment, production lines, etc.
• Other Fields: Including manufacturing plants, oil and gas industry, chemical plants, etc., widely used in industrial automation systems.
• Specific Applications: Such as control systems for equipment like steam turbines, wind turbines, and gas turbines in power plants.

VI. Installation and Maintenance

Installation Environment

Installation Method

Maintenance Recommendations

• Conduct regular inspections and maintenance according to the manufacturer’s instruction manual, including software updates and hardware status checks, to maintain optimal performance.
• Follow all relevant safety specifications and standards to prevent safety accidents such as electric shocks and fires.

Diagnosis and Troubleshooting

• Built-in diagnostic functions and LED status indicators facilitate monitoring and troubleshooting.
• Use the diagnostic tools attached to the drive to generate success and component health reports.

————————————————————————————————————-
