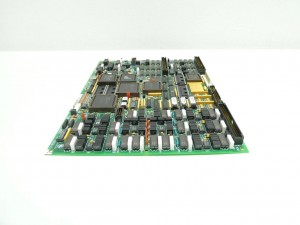

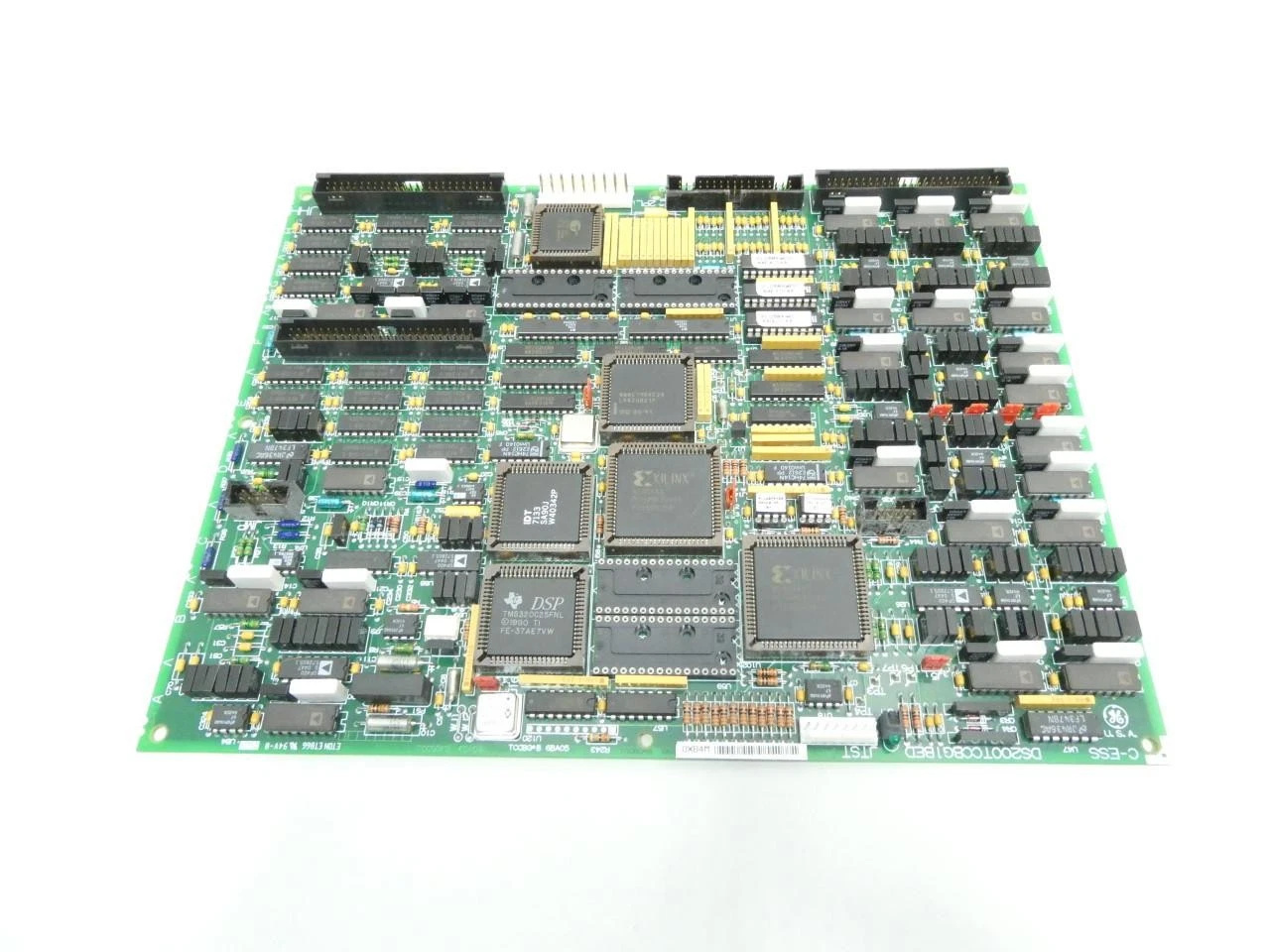

Ge DS200TCCBG1BED Analog I/O Board
Ge DS200TCCBG1BED
1. Overview
The DS200TCCBG1BED is a universal analog I/O expansion board card belonging to the GE Mark V series control system. This module is responsible for receiving critical measurement signals of gas turbines (including temperature, pressure, and current signals), and transmitting the processed data to the main control system, so as to support the safe operation and performance optimization of gas turbines.
_______________________________________________________________________________________________________
2. Parameters
|
Parameter Category
|
Specific Parameters
|
|---|---|
|
Hardware Specifications
|
Adopts 80196 series microprocessor, integrated with multiple PROM modules
|
|
Physical Dimensions
|
Standard DIN rail mounting size (approx. 100mm × 50mm × 25mm)
|
|
Input/Output
|
Multi-channel analog inputs (thermocouple, RTD, milliampere input), equipped with a 50-pin connector
|
|
Indicator Lights
|
LED indicator lights are installed on the side of the board card for status display
|
|
Communication Interface
|
Connects with other modules of the Mark V system via high-speed bus or dedicated backplane
|
|
Operating Environment
|
Designed for industrial field applications, resistant to high vibration, impact and wide temperature range (-40℃ to +85℃)
|
_______________________________________________________________________________________________________
3. Product Features
- High Reliability and Safety: As a key component of the gas turbine control system, the DS200TCCBG1BED adopts a redundant design to ensure stable operation even under extreme conditions, preventing equipment damage caused by misoperation. It serves as a core safeguard for the stable and reliable operation of gas turbine control systems, meeting the strict safety requirements of industrial power and energy equipment.
- Modular Design: The board card features a modular structure, enabling quick installation, replacement and maintenance. Users only need to insert the PROM modules from the old board into the new one to restore the original configuration, greatly simplifying the maintenance process and reducing equipment downtime.
- Precise Signal Processing: Specially designed to process thermocouple, RTD and milliampere signals, it provides high-precision data input to support accurate control and fault diagnosis of gas turbines, ensuring the monitoring and control of core operating parameters are accurate and efficient.
- Strong Anti-Interference Capability: Equipped with milliampere filtering function, it can effectively suppress electromagnetic interference (EMI), guarantee signal integrity and ensure the stability and accuracy of data transmission in complex industrial electromagnetic environments.
_______________________________________________________________________________________________________
4. Structure and Components
- Microprocessor (CPU): Responsible for instruction execution and data processing, serving as the core control unit of the board card to ensure efficient operation of various functions.
- PROM Module: Stores firmware programs, and users can upgrade functions by replacing the PROM modules, making functional updates and upgrades more convenient and flexible.
- LED Indicator Lights: Used to display the working status of the board card, including power status, communication status and other key indicators, facilitating real-time monitoring and quick troubleshooting by operation and maintenance personnel.
- 50-Pin Connectors (JCC, JDD): Used for connecting input/output lines, realizing stable and reliable connection between the board card and field sensors and external equipment.
- Power Supply and Heat Dissembly Components: Ensures the stability of the board card under high-load operation, adapting to the harsh working conditions of industrial sites and prolonging the service life of the equipment.
_______________________________________________________________________________________________________
5. Application Fields
- Gas Turbine Control Systems: Applied in the GE Speedtronic Mark V gas turbine control system to monitor key operating parameters of gas turbines and ensure efficient and safe operation of turbine equipment.
- Power Stations: Serves as a core measurement and control unit in thermal power stations, undertaking the monitoring and control of key parameters of power generation equipment to support stable power output.
- Oil and Gas Facilities: Used to monitor the operating status of equipment such as fracturing units and compressor stations in oil and gas production and transportation links, ensuring the safe and stable operation of process equipment.
- Other Industrial Automation Systems: Suitable for various industrial scenarios requiring high-precision analog signal processing, such as petrochemical, metallurgical and other heavy industrial automation control systems.
_______________________________________________________________________________________________________
6. Installation and Maintenance
6.1 Installation
The board card adopts a standard DIN rail mounting method, ensuring tight integration with other modules in the cabinet. During installation, it is necessary to ensure a firm connection between the board card and the backplane of the main control system, and connect field sensor cables through the 50-pin connector to guarantee stable signal transmission.
6.2 Maintenance
The board card is designed as a Field Replaceable Unit (FRU), allowing direct plugging and unplugging during troubleshooting. Maintenance personnel only need to insert the PROM modules from the faulty board into the new replacement board to quickly restore system operation, without the need for reprogramming, which greatly shortens maintenance time and reduces maintenance costs.
6.3 Fault Diagnosis
The board card is equipped with a built-in diagnostic function, which can detect abnormal input signals or communication faults in real time. It can quickly locate fault points, helping maintenance personnel carry out targeted troubleshooting and minimize the impact of faults on industrial production.
————————————————————————————————————-
