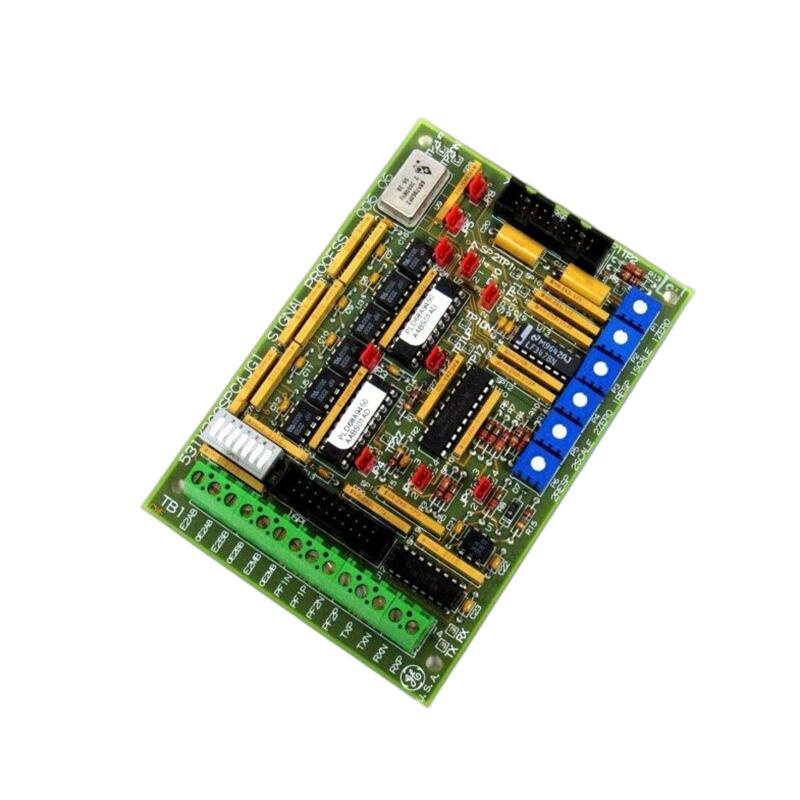

GE DS3800HLIA1B1C Logic Input Module
GE IS200ICBDH1A
1. Overview
The GE DS3800HLIA1B1C is a logic input module (Logic Input Board) based on the GE DS3800 series. This module is mainly used to collect discrete on-site signals (such as switch signals and sensor signals) and transmit them to the main control system (such as DCS or PLC), serving as a key bridge for information interaction between the on-site and the control system.
______________________________________________________________________________________________
2. Key Parameters
|
Parameter
|
Description
|
|---|---|
|
Input Voltage
|
24V DC (Commonly used in industrial control systems)
|
|
Rated Current
|
5A (Input current specification compliant with industrial standards)
|
|
Operating Temperature
|
-40℃ – 85℃ (Wide temperature range, suitable for harsh environments)
|
|
Protection Level
|
IP65 (Dustproof and waterproof, adaptable to complex on-site environments)
|
|
Communication Interface
|
Supports industrial protocols such as RS-485, Modbus RTU, Profibus, and DeviceNet
|
|
Module Type
|
Logic Input (Digital Input), used for collecting discrete signals
|
______________________________________________________________________________________________
3. Product Features
- High Reliability and Durability: Adopts industrial-grade components, has anti-interference capability, and can resist the impact of adverse factors such as humidity, vibration, and dust.
- Modular Design: As a member of the DS3800 series, it supports standard 19-inch rack-mounted installation, facilitating quick maintenance, expansion, and diagnosis.
- Multi-function Integration: Built-in digital input interface, supports multiple communication protocols (such as Modbus, Profibus), and can be flexibly configured to meet different system requirements.
- Wide Compatibility: Compatible with other GE series (such as DS3800HPTF, DS3800DLCA), suitable for various DCS (Distributed Control System) and PLC environments.
______________________________________________________________________________________________
4. Structure and Composition
- Housing and Dimensions: Usually made of aluminum-magnesium alloy, the surface is treated with oxidation, which has good heat dissipation performance and protection capability. Standard rack-mounted size, easy to integrate into large control cabinets.
- Internal Composition: Includes core components such as input circuit board, digital signal processing chip, communication interface module, and power management module.
- Installation Method: Standard 19-inch rack-mounted design, supports slide-in installation in industrial control cabinets, facilitating quick on-site wiring and replacement.
______________________________________________________________________________________________
5. Application Areas
- Power Industry: Used in steam turbines, gas turbines, and power grid monitoring systems of power plants.
- Industrial Automation: Suitable for production line automation control, robot control, and factory building automation systems.
- Process Control: In process industries such as petrochemical, metallurgy, and papermaking, it is used to monitor and control discrete states in the production process (such as valve switches, pump operation status).
______________________________________________________________________________________________
6. Installation and Maintenance
- Installation: Adopt standard 19-inch rack-mounted installation method. Power off before installation to ensure that the on-site ambient temperature and humidity meet the specification requirements (-40℃-85℃). Strictly distinguish the input voltage polarity during wiring to prevent module damage caused by reverse connection.
- Maintenance: The module supports Hot-swap, which allows replacing faulty modules without interrupting the entire system during operation. It is recommended to regularly check whether the wiring terminals are loose, clean the dust on the module surface, and ensure good heat dissipation and ventilation.
______________________________________________________________________________________________
7. Compatibility and Upgrade
- Compatibility: This module is compatible with other modules of the DS3800 series (such as HPTF, DLCA, etc.), and can be seamlessly integrated with GE and third-party DCS and PLC systems.
- Upgrade Path: If higher communication speed or more functions are needed, you can choose to upgrade to a module with network control function (such as DS3800HLND), or replace it with the DS3800DL series that supports higher bandwidth.
————————————————————————————————————-
