1. Overview

2. Parameters and Technical Specifications

• Voltage and Power Consumption: Suitable for industrial standard voltage ranges (such as 24V DC) and has high power processing capacity (usually above 100 watts).
• Operating Temperature Range: -40℃ to 85℃, capable of adapting to harsh industrial environments.
• Communication Protocol: Supports industrial communication standards such as Modbus, facilitating integration with DCS systems.

3. Product Features

• Modular Design: Facilitates quick installation, maintenance and replacement, reducing system downtime.
• Anti-Interference Capability: Equipped with good protection performance, it can resist adverse factors such as humidity, vibration, dust and electromagnetic interference.
• High Reliability: As part of the turbine control system, it is required to operate stably for a long time in key facilities such as power plants.

______________________________________________________________________________________________

4. Structure and Composition

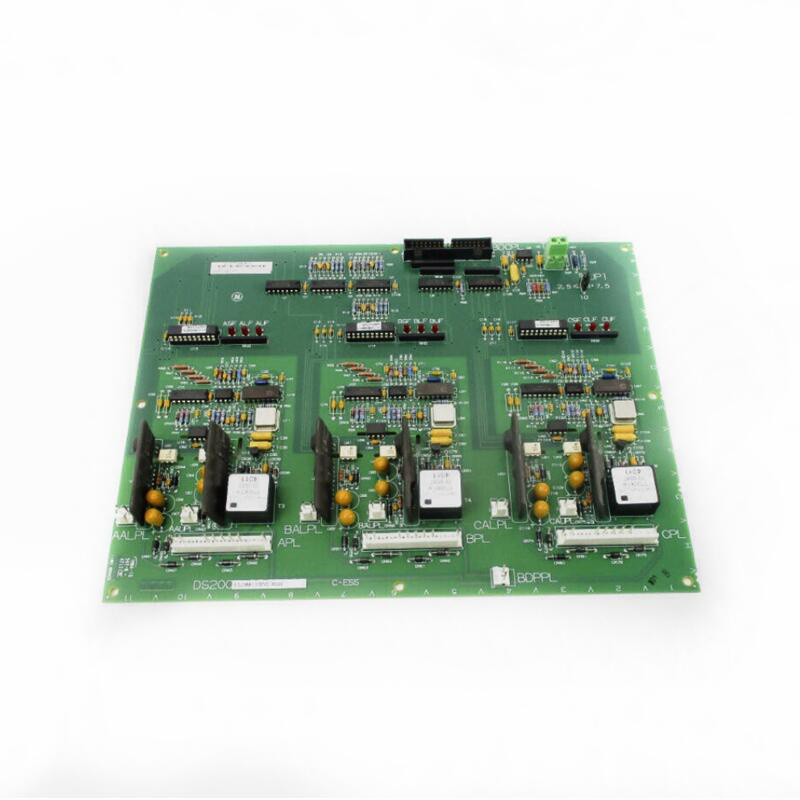

• Component Layout: The board is equipped with resistors of various colors and patterns (with color identification bands), black diodes, yellow capacitors, and approximately 18 integrated circuits (ICs).
• Resistor Network: There are 4 resistor networks, each containing several resistors, and the total resistance value is the sum of each resistor.
• Indicator Lights: Equipped with 4 light-emitting diodes (LEDs), which usually emit orange light for status indication.
• Test Points: 15 test points are set to facilitate on-site detection of the normal working status of the circuit board.
• Connector Ports: Independent connector ports are provided on one side and the central position of the board for electrical connection with other components.

______________________________________________________________________________________________

5. Application Fields

• Power Generation Industry: Widely used in the control systems of gas turbines and steam turbines, it is an important part of power plant automation control.
• Industrial Automation: Used in production line automation control and robot control systems.
• Process Control: Plays a key role in process control in industries such as petrochemicals and metallurgy.

______________________________________________________________________________________________

6. Installation and Maintenance Recommendations

• Anti-Static: It must be packaged in an anti-static bag during handling and installation to prevent electrostatic damage to electronic components.
• Environmental Requirements: The installation environment should be kept dry and ventilated, avoiding excessive vibration and high-temperature environments to ensure its anti-interference performance.
• Test Points: Use the 15 test points set on the board for on-site detection to ensure that the circuit board can work normally after installation.
• Professional Support: It is recommended to select models and obtain after-sales service through authorized GE Fanuc channels or professional industrial control system integrators.
