Key Technical Parameters

Product Features

High Reliability and Stability

• Adopts advanced power conversion technology to ensure extremely low output voltage and current loss (<1%), maintaining stability even under high temperature or heavy load conditions.
• Equipped with overcurrent, overvoltage and short-circuit protection functions to effectively prevent the spread of electrical faults.

Modular Design

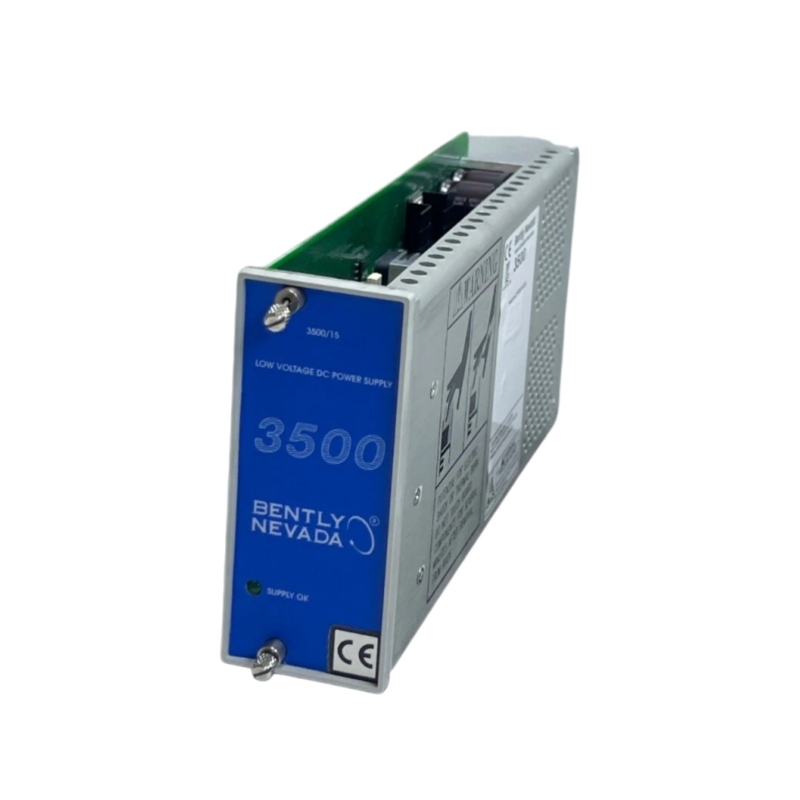

• Designed as a half-height module, it can be directly inserted into the dedicated left slot of the 3500 system for easy installation.
• Supports “hot-swappable” feature, which means it can be replaced while the system is running, or a second module can be installed as a backup power supply.

Environmental Adaptability

• With IP67 protection, it can work normally in high humidity (95% non-condensing) and dusty environments, making it very suitable for heavy industry scenarios such as petrochemical, electric power and metallurgy.

Structure and Composition

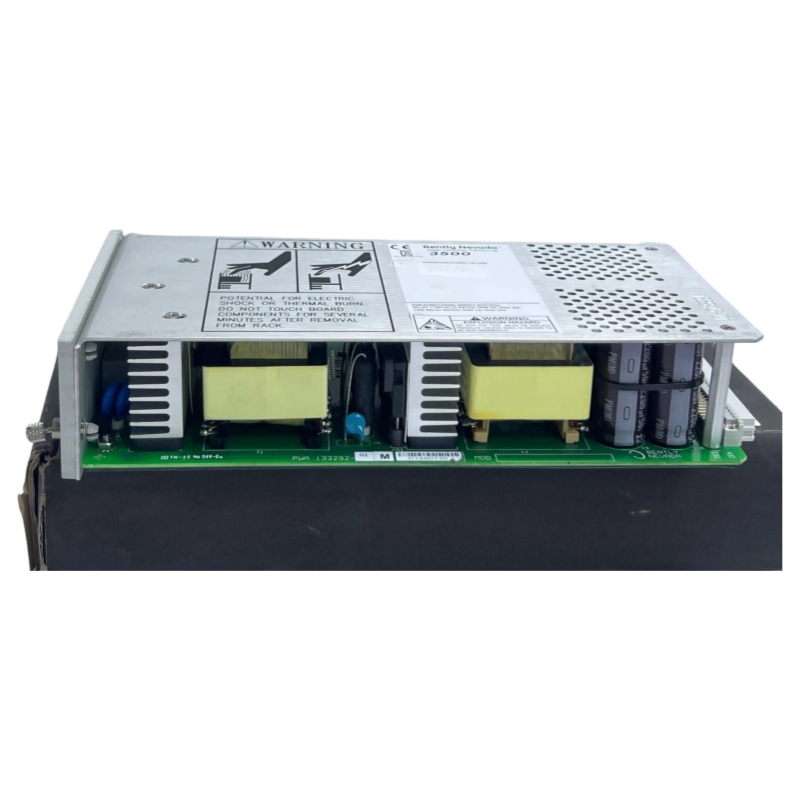

• Power Conversion Unit: The core internal component, responsible for converting the input voltage (usually 85-264VAC or 24VDC) into a stable 20-30V DC output.
• Heat Dissipation System: A necessary heat dissipation device for large industrial power supplies (usually air-cooled), used to maintain the module’s operating temperature between -40℃ and +70℃.
• Terminals: Equipped with input power terminals and output terminals; some models support RS485 or Ethernet communication interfaces for monitoring power supply status.

Main Application Fields

• Power Plants and Energy: Provide continuous power supply for steam turbines, gas turbines and generator sets, and monitor the vibration status of bearings and blades.
• Industrial Manufacturing: Applied to condition monitoring of continuously operating equipment such as compressors, pumps and fans.
• Petrochemical Industry: Provide power guarantee for online monitoring of key equipment in high-temperature and high-corrosion environments.

Installation and Maintenance Recommendations

• Installation: Must be installed in the designated left slot of the Bently Nevada 3500 Series rack. Ensure that the input power meets the module’s rated input requirements (usually industrial standard AC power), and correctly connect the output terminal to supply power to other modules.
• Operation Monitoring: The module is usually equipped with status indicator lights (LEDs), and its output voltage, current and fault status can be monitored through the rack front panel or the upper computer system.
• Maintenance: It is recommended to regularly check the tightness of the input power connection and clean the dust on the module surface to prevent overheating faults caused by poor heat dissipation.
