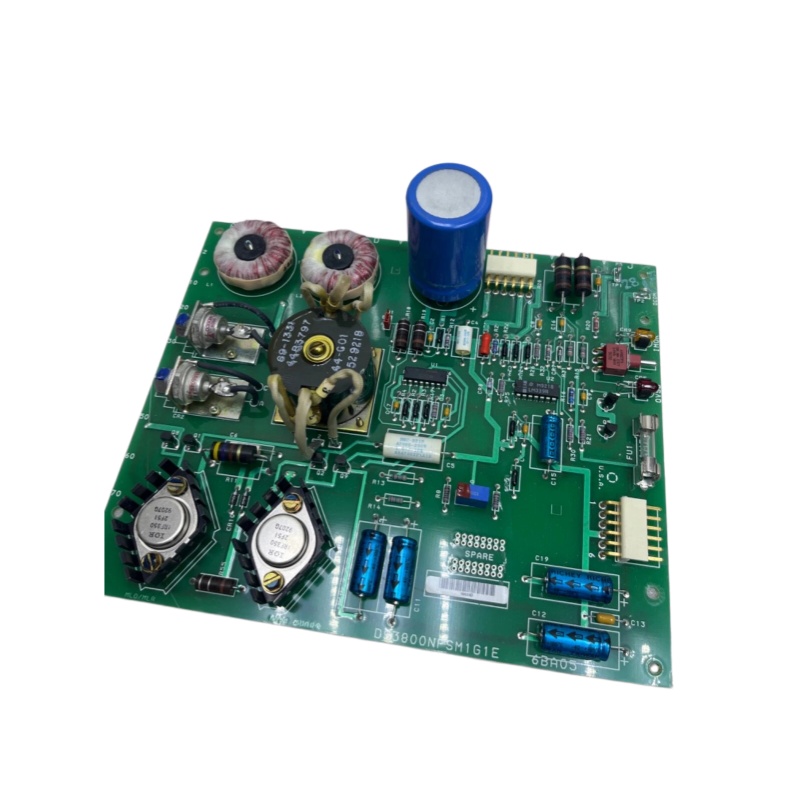

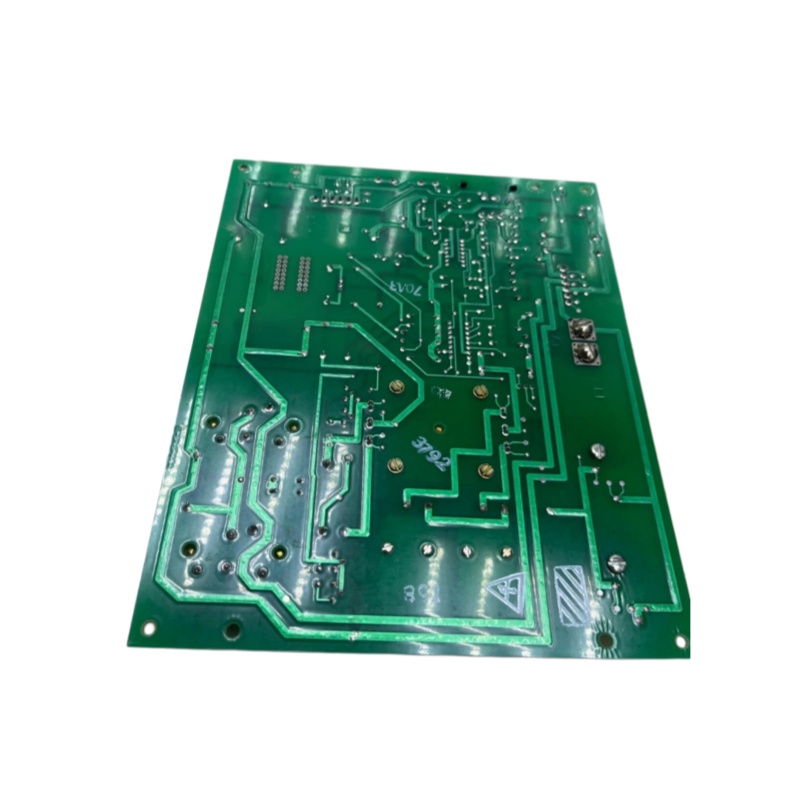

GE DS3800NPSM1G1E Power Circuit Board
GE DS3800NPSM1G1E
1. Product Overview
2. Technical Specifications
|
Parameter Item
|
Specification Description
|
|---|---|
|
Product Type
|
Power Supply Module / Power Supply Panel
|
|
System Series
|
GE Mark IV DS3800
|
|
Operating Temperature Range
|
-40°C to +70°C, or 0°C to 40°C (ambient temperature requirement for Mark IV cabinet)
|
|
Humidity Requirement
|
5% to 95% (non-condensing)
|
|
Dimensions
|
Approx. 16×12×10 inches
|
|
Weight
|
Approx. 3 pounds
|
3. Structure and Composition
- Physical Form: Power supply circuit module based on printed circuit board (PCB)
- Series Positioning: The DS3800NPSM series is categorized as a standard power supply panel
- Circuit Configuration: The power supply board is equipped with arrays of diodes and a complete set of power management electronic components
- Connectors: The Mark IV DS3800 series circuit boards are fitted with multiple groups of 12-pin and 6-pin terminal blocks
- System Architecture: As an indispensable part of the Mark IV turbine control system, it works in coordination with other control boards to realize integrated system control
4. Application Fields
|
Application Industry
|
Specific Application Purposes
|
|---|---|
|
Power Generation Industry
|
Speedtronic control system for gas turbines and steam turbines
|
|
Oil and Gas Industry
|
Equipment monitoring and automatic control in oil and gas production processes
|
|
Chemical Industry
|
Real-time process monitoring and safety protection of chemical production processes
|
|
Manufacturing Industry
|
Control of various industrial automation equipment, covering automotive, electronics, food processing and other sub-industries
|
|
Infrastructure Industry
|
Automatic management of public facilities such as water treatment plants and traffic control systems
|
5. Installation and Maintenance
5.1 Installation Precautions
- Ambient Temperature: 0°C – 40°C (32°F – 72°F)
- Humidity: 5% – 95% (non-condensing)
5.2 Maintenance Guidelines
|
Maintenance Item
|
Instructions
|
|---|---|
|
Warranty Period
|
Third-party suppliers generally provide a warranty service ranging from 30 days to 1 year.
|
|
Regular Inspection
|
It is recommended to regularly check the operating status of the circuit board and maintain a clean and dry operating environment.
|
|
Version Difference Reminder
|
Different board versions may have differences in pin configuration and functional definitions. Compatibility verification is required before replacement.
|
————————————————————————————————————-
