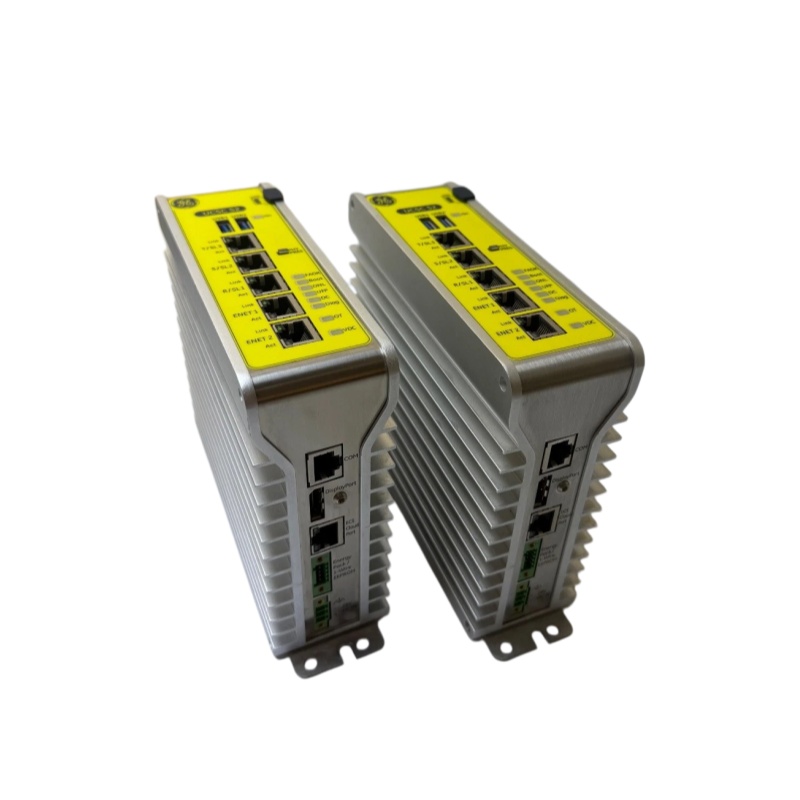

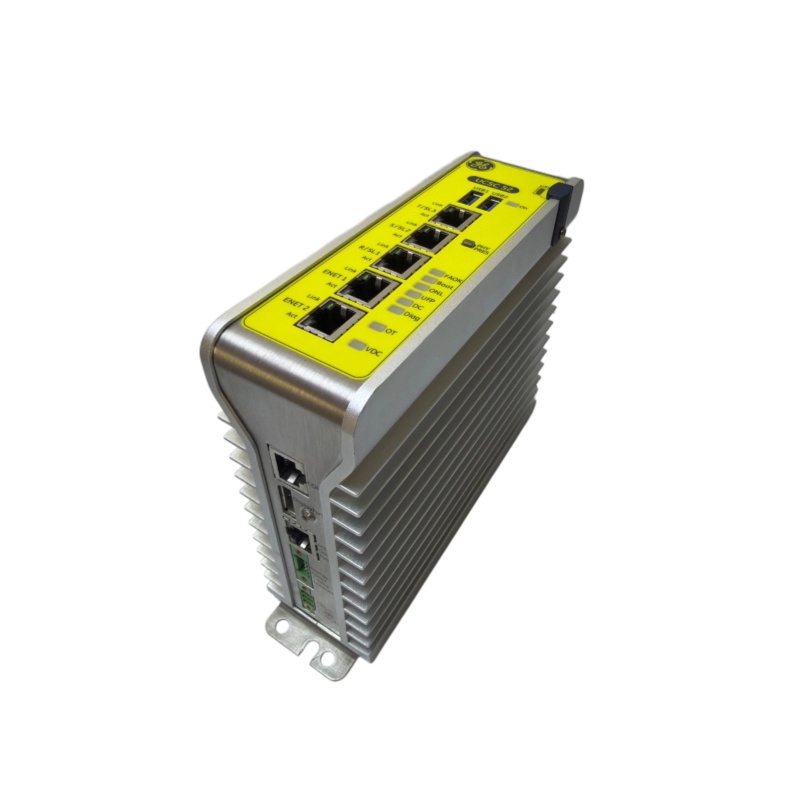

GE IS420UCSCS2A-B

1. Overview

2. Technical Specifications

Environmental Conditions

• Operating Temperature: -40°C to 70°C
• Storage Temperature: -40°C to 85°C
• Humidity: 0-95% RH, Non-condensing
• Hazardous Area Certification: Compliant with G3 Standards

3. Product Features

• Functional Safety: Supports SIL 2 and SIL 3 safety integrity levels, fully compliant with the IEC 61508 standard.
• Redundancy Configuration: Supports single-unit, dual-module, and triple modular redundancy (TMR) configurations to significantly enhance system reliability.
• Software-based Configuration: All system configurations are implemented via software, eliminating the need for hardware jumpers or physical switch adjustments.
• Status Monitoring: Equipped with multiple health indicator lights and status LEDs to enable real-time equipment condition monitoring.
• Cooling Mode: Adopts a natural convection cooling design with no forced cooling equipment required.
• Operating System: Embeds QNX Neutrino real-time multitasking operating system, with ControlST V07.02 software version.
• Programming Language Support: Compatible with multiple programming languages, including Function Block Diagram (FBD), Relay Ladder Diagram (RLD), and Causal Effects Matrix.
• Warranty Service: Comes with a 1-year standard warranty and supports extended warranty services.

4. Structure and Composition

4.1 Hardware Structure

• Main Control Unit: Adopts dual-core AMD G-Series microprocessor as the core computing unit to ensure stable and efficient operation of control tasks.
• Storage Unit: Equipped with 2GB DDR3-1066 SDRAM for system operating memory and 128GB SSD for high-speed data storage and data logging.
• Communication Module: Features dual communication interfaces (IONet and ENET) to support mainstream industrial field bus communication and realize efficient data interaction.
• Power Management: Built-in professional power management circuit, supporting wide-range DC input (18-32VDC) to adapt to complex industrial power supply environments.
• Status Indication: Integrated multiple health and status LED indicators to intuitively display real-time equipment operating status and fault information.

4.2 Mechanical Structure

• Adopts standard PCB circuit board design with stable and reliable hardware integration.
• Supports DIN rail mounting, facilitating quick installation and integration in industrial cabinets.
• Compact and independent controller shape design, suitable for installation in space-limited industrial scenarios.

5. Application Fields

• Manufacturing Automation: Applied to automatic control systems of factory production lines to realize intelligent and automated production control.
• Process Industry Automation: Widely used in process control scenarios of chemical, petroleum and other process industries.
• Energy and Power Industry: Suitable for gas turbine control systems, steam turbine control systems, and control systems of power stations and oil & gas facilities.
• Building and Transportation Industry: Applied in building automation and transportation power control fields.
• Other Industrial Applications: Covering water treatment, papermaking, food processing and other industrial sectors.
• Safety Instrumented System (SIS): Serves as core equipment for safety instrumented systems, realizing risk reduction functions for key industrial safety loops and ensuring production safety.
