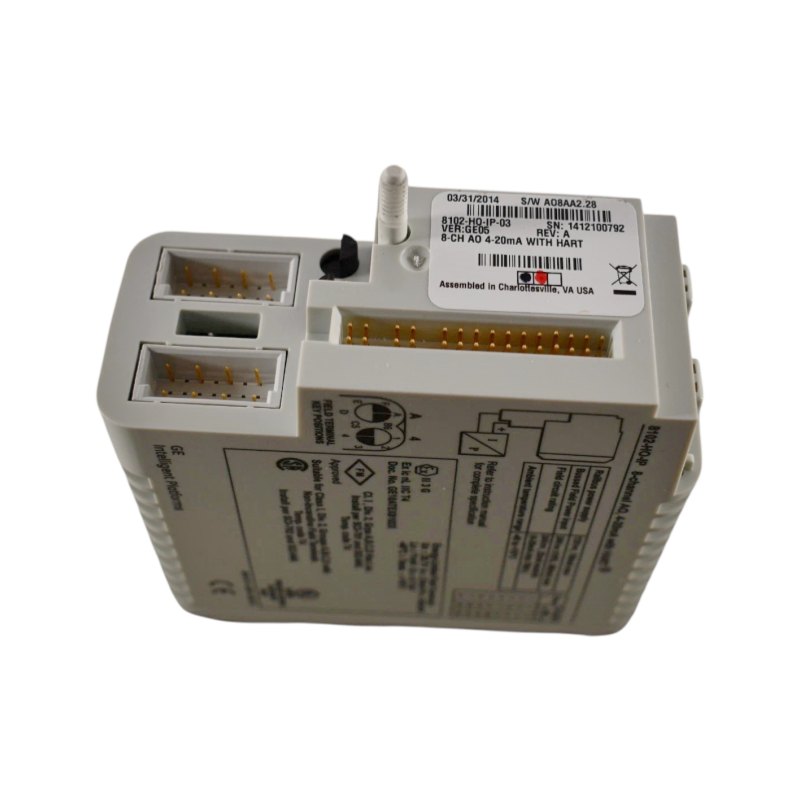

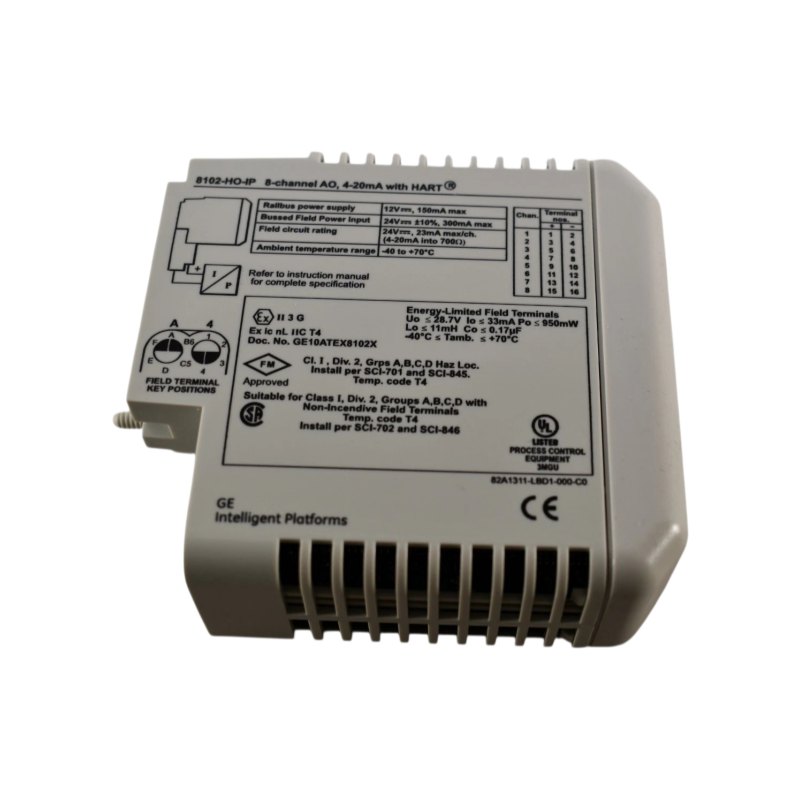

GE Fanuc 8102-HO-IP

Eight-Channel Process Control

The GE Fanuc 8102-HO-IP is a compact process I/O module built for applications where accurate analog control and HART communication are required together. As an 8-channel 4–20 mA analog output module, it converts controller commands into continuous field signals for industrial devices.

Unlike a standard analog output module, the 8102-HO-IP adds HART pass-through and data acquisition capabilities. This gives operators access to additional information from compatible intelligent field instruments.

Output Performance

Each channel provides a standard 4–20 mA output, while the specified full signal range extends from 1 to 23 mA. The module offers 12-bit resolution and an accuracy of ±0.25% of span over its specified temperature range.

The response time is also suited to process applications:

• 4–20 mA mode: maximum 25 ms
• HART mode: approximately 0.75 seconds per channel
• Open-loop detection: 0.7 ±0.25 mA for 1 second
• Output ripple: less than 0.02% of span

These characteristics allow the module to support both conventional analog control and intelligent instrumentation.

HART Communication Advantage

HART is one of the most useful features of the 8102-HO-IP. Each channel can communicate with a compatible HART field instrument, while HART Universal Command 3 can provide access to multiple dynamic process variables together with status information.

As a result, the module can be useful when a control system needs more than a simple analog signal. Engineers can combine traditional 4–20 mA control with additional instrument information without installing a separate communication module.

Module Architecture

The module has a compact 42 mm-wide design and weighs approximately 200 g. It interfaces with the PAC8000 Railbus and uses 24 VDC bussed field power for field-side operation. Channel-to-Railbus isolation is specified at 100 VAC, while the field circuits are designed as non-incendive circuits.

Compatible field terminals include options for general-purpose and non-incendive wiring, allowing the module to be incorporated into different industrial installation environments.

Where It Can Be Used

Typical applications include:

Valve Control:
Sending precise 4–20 mA commands to control valves and positioners.

Process Regulation:
Providing analog outputs for pressure, temperature, flow, and level control loops.

Intelligent Instrumentation:
Using HART communication to obtain additional field-device information.

Distributed Control:
Integrating multiple analog control loops into a PAC8000 process automation architecture.

Maintenance Considerations

Routine inspection should focus on field terminals, signal wiring, power connections, and channel status indicators. Stable field power is particularly important because the module relies on a 24 VDC bussed field supply.

When replacing a module, confirm the exact catalog number and system configuration before installation. For hazardous-area applications, the applicable wiring, certification, and installation requirements should also be verified.

Practical Choice for PAC8000 Systems

The 8102-HO-IP combines eight analog outputs with HART functionality in a compact PAC8000 I/O module. Its combination of accurate 4–20 mA control, diagnostic capability, and intelligent instrument communication makes it a practical option for process automation systems requiring flexible analog output control.
