GE IC693MAR590C

Built for Series 90-30 Control

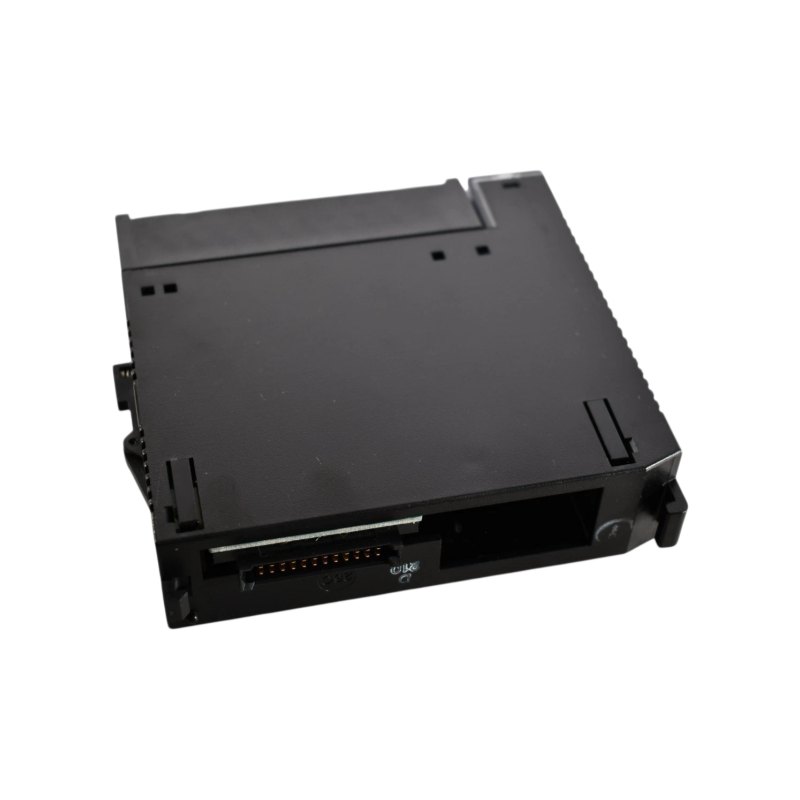

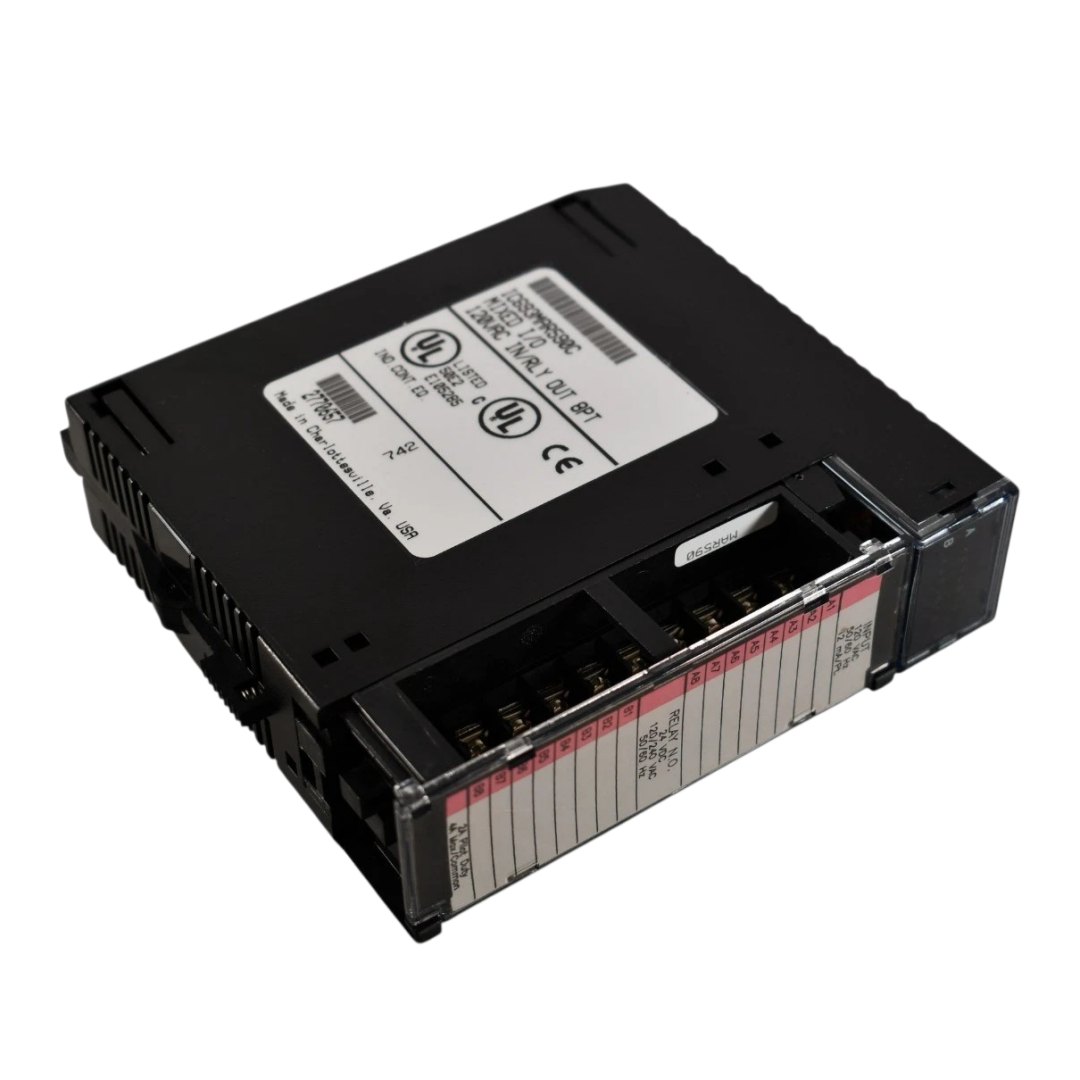

The IC693MAR590C provides a convenient combination of AC sensing and relay switching for GE Fanuc Series 90-30 PLC systems. Instead of using separate input and output modules, this device integrates 8 AC inputs and 8 relay outputs into a single I/O unit.

It is well suited to control panels where discrete field signals need to be monitored while external electrical loads are switched through relay contacts.

Input and Output Configuration

The module’s input side is designed for 120 VAC signals, with an operating range of 0 to 132 VAC. Eight input points share a common input power arrangement.

On the output side, eight normally-open relay circuits provide flexible load switching. The outputs can operate with DC voltages from 5 to 30 V or AC voltages from 5 to 250 V at 50/60 Hz, with a maximum output load of 2 A.

This configuration gives engineers a straightforward way to connect AC field devices to a Series 90-30 controller.

Why This Module Is Useful

The IC693MAR590C offers several practical advantages:

Combined I/O:
Eight inputs and eight outputs are integrated into one module.

Relay Switching:
The relay outputs can accommodate both AC and DC loads within their specified limits.

Clear Diagnostics:
LED indicators show the status of individual input and output points.

Flexible Installation:
The module can occupy a standard I/O position in a compatible Series 90-30 baseplate.

Simplified Panel Design:
Combining input and output functions can help reduce the number of individual modules required.

Electrical Isolation

The module incorporates isolation between the field circuits and the logic side. Published specifications identify 1500 VAC RMS isolation between field and logic, with additional isolation between input/output groups.

This design helps separate controller electronics from field-side electrical circuits and is valuable in industrial environments where different voltage levels are present.

Operating Considerations

When designing a system around the IC693MAR590C, engineers should verify the voltage and current requirements of every connected device. Although the relay outputs support a wide voltage range, the maximum load rating must not be exceeded.

The input signal should also remain within the specified AC voltage range. Proper terminal wiring is essential for reliable operation, especially when switching inductive loads.

Maintenance Tips

Routine maintenance should include checking:

• Terminal tightness
• AC input wiring
• Relay output connections
• External load conditions
• Module seating
• LED status indicators
• Baseplate connections

If an output does not operate correctly, first verify the PLC logic, field wiring, external power supply, and connected load before determining whether the module requires replacement.

Industrial Compatibility

The GE Fanuc IC693MAR590C remains a useful replacement option for existing Series 90-30 installations that require mixed discrete I/O functionality. Its 8-in/8-out configuration, AC input capability, and relay-based outputs make it suitable for a wide variety of legacy industrial automation and machine-control applications.
