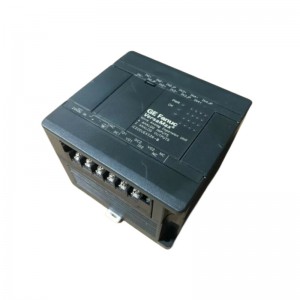

GE IC200ALG230B


Overview
The GE IC200ALG230B is a high-performance analog input module designed specifically for industrial automation. It provides accurate analog signal acquisition and processing, suitable for various industrial control scenarios. This module features high precision, high reliability, and good expandability, capable of meeting the needs of different industrial applications.

Structure and Composition
The GE IC200ALG230B module adopts a modular design, facilitating installation and maintenance. Its structure includes the following parts:

Input channels: The module has 4 independent input channels, supporting the input of voltage and current signals.
Isolation function: The module supports channel isolation to ensure stability and safety during multi-channel input.
Interface: The module is installed via DIN rail, making it easy to connect with other devices.
Power supply: The module supports 24V DC power input to ensure stable operation.

Parameters
The main parameters of the GE IC200ALG230B are as follows:

Input type: Voltage/current (4~20mA and 0~10V).
Number of channels: 4 channels.
Resolution: 12 bits.
Accuracy: 0.3%.
Input impedance: 126KΩ for voltage input, 200Ω for current input.
Update rate: 10ms per channel.
Isolation voltage: 250V AC/DC.
Operating temperature: -40℃ to +70℃.
Communication method: RS-485 Modbus.

Application Fields
The GE IC200ALG230B is widely used in the field of industrial automation, including but not limited to:

Production line control: Used for precise control of various equipment on the production line.
Process control: Used for monitoring and controlling parameters such as temperature, pressure, and flow in industrial processes.
Energy management: Used for monitoring and optimizing energy usage to improve energy efficiency.
Manufacturing industry: Used for the control and monitoring of automated manufacturing equipment.

Product Features

High precision: 12-bit resolution and 0.3% accuracy ensure the accuracy of signal acquisition.
High reliability: Undergoes rigorous testing to ensure stable operation in various industrial environments.
Easy installation: The modular design and DIN rail mounting method make it easy to install and maintain.
Strong expandability: Supports integration with other modules and systems, facilitating system expansion.

Installation and Maintenance

Installation: The module can be installed on the main rack or expansion rack via DIN rail, supporting both non-isolated and expanded or isolated modes.
Maintenance: Sufficient space needs to be reserved for the installation and maintenance of the module, usually 400mm x 400mm, and 100mm of space above the equipment for maintenance.
Notes: During installation and maintenance, ensure stable power supply and avoid electrical interference to ensure the normal operation of the module.

————————————————————————————————————-
