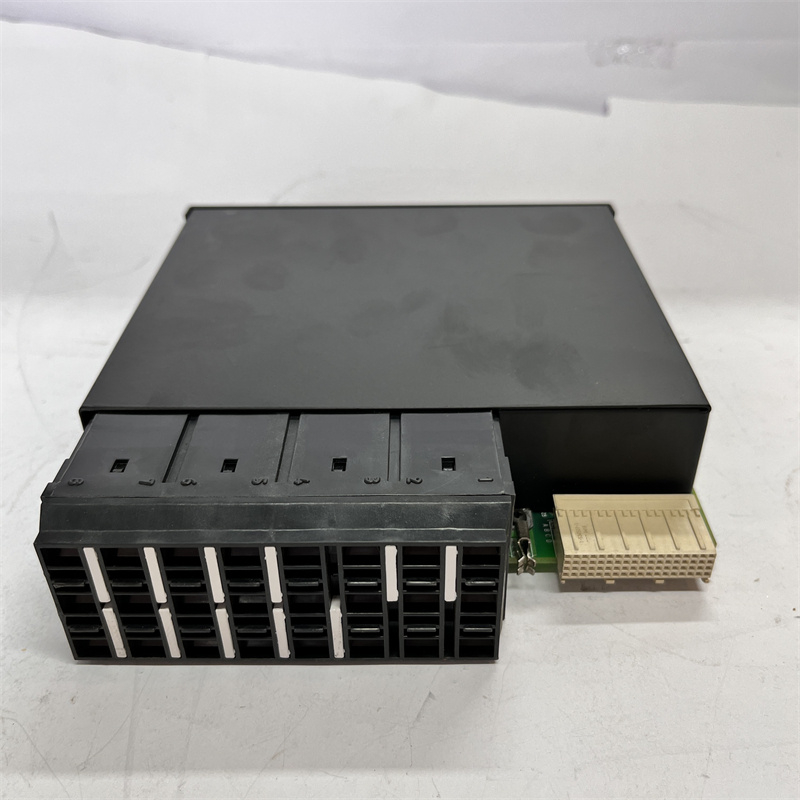

GE UR-1HH

Overview

The GE UR1HH is one of the UR series relays manufactured by GE (General Electric). It is a key component in industrial automation and control systems, featuring high reliability, flexibility, and scalability, making it suitable for various industrial environments.
Structure and Composition

Modular Design: The UR1HH adopts a modular design, facilitating easy installation, maintenance, and expansion.
Compact Size: With dimensions approximately 78mm x 22mm x 109mm, it is convenient for installation and integration.
Robust Design: It is suitable for harsh industrial environments, boasting good mechanical strength and durability.

Parameters

Model: UR1HH
Series: UR Series
Supply Voltage: 9~30VDC
Communication Interface: RS485, supporting Modbus RTU protocol
Input Voltage: -10V to +10V
Output Voltage: 0V to +10V
Input Current: -20mA to +20mA
Output Current: 0mA to +20mA
Sampling Rate: 12-bit
Accuracy: 0.1%
Operating Temperature Range: -40°C to +85°C
Protection Class: IP65
Rated Current: 10A
Contact Current: 10A AC/DC
Contact Configuration: 1SPDT (1 trip, 1 normally open, 1 normally closed)
Mounting Method: Panel mounting or DIN rail mounting
Certifications: CE, CSA, UL

Application Fields

Industrial Automation: Used in industries such as manufacturing, oil and gas, water treatment, and environmental protection.
Power System Control: Applied in renewable energy fields like wind power generation, solar power generation systems, and energy storage systems.
Building Automation: Utilized to control various equipment and systems in buildings, such as HVAC systems, lighting, and security systems.
Process Control: Employed to monitor and control the operating status of production lines.
Transportation: Used in automation systems for railways, airports, and ships.
Other Fields: Including chemical industry, electronics, aerospace, and electrical engineering, etc.

Product Features

High Reliability: Equipped with multiple protection functions to ensure the safe operation of motors and drives.
High-Speed Data Transmission: Supports efficient data exchange, suitable for harsh industrial environments.
Multifunctional Configuration: Supports various protection functions and configurations to meet different power system requirements.
Ease of Use: Provides a user-friendly operation and setting interface, with simple operation that is easy to learn and use.
Wide Operating Temperature Range: Ensures reliable operation in extreme temperatures.
Multiple Communication Options: Including support for RS485 interface and Modbus RTU protocol.

Installation and Maintenance

Installation Method: Supports panel mounting or rail mounting, facilitating integration into existing systems.
Maintenance: The modular design allows for easy maintenance and expansion, reducing downtime.
Software Support: Managed and configured through EnerVista LaunchPad software, enabling programming configuration of setting values and firmware management.
Safety Standards: Complies with IEC 61800 standards to ensure product quality and performance.

————————————————————————————————————-
