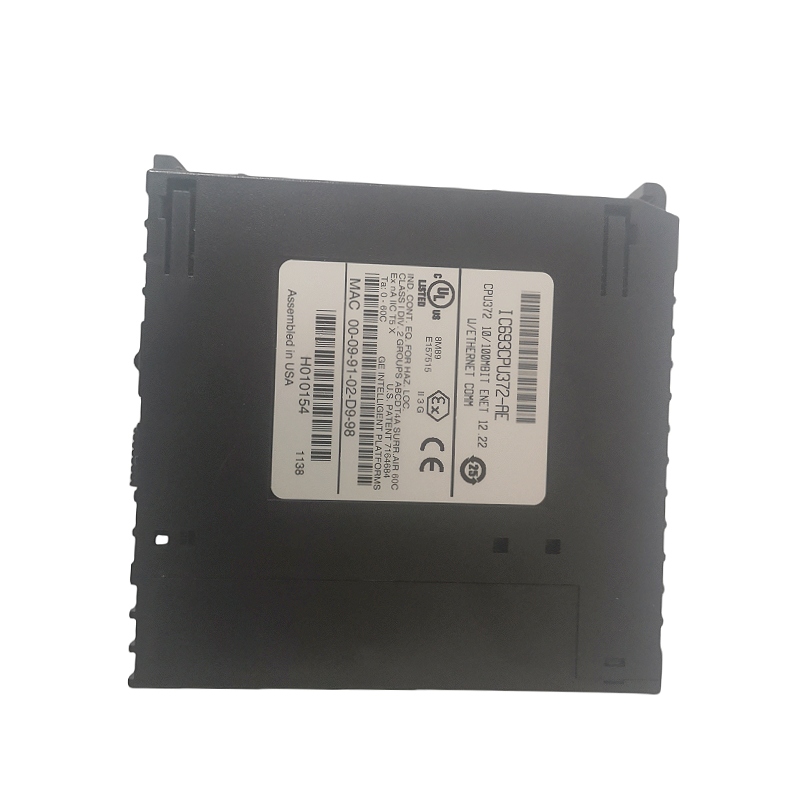

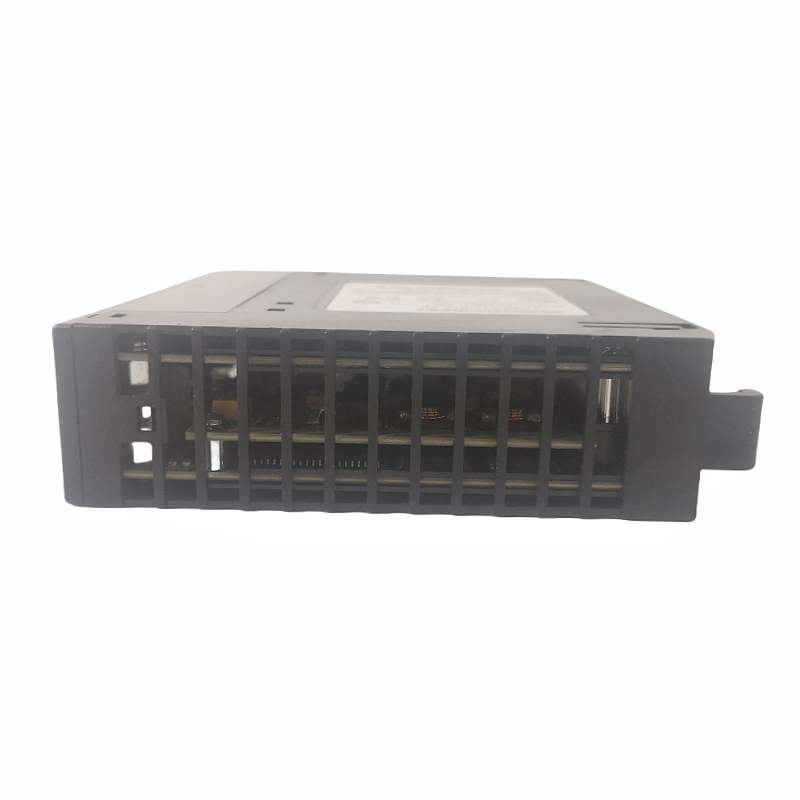

GE IC693CPU372-AE

Overview

Specifications

• Dimensions: 133 mm x 42 mm x 3 mm
• Weight: Approximately 0.01 kg
• Operating Voltage: 24 VDC
• Operating Temperature Range: -40°C to 85°C
• Storage Temperature Range: -55°C to 125°C
• Memory: 240 KB user memory
• Processor: AMD SC520 with a clock speed of 133 MHz
• Communication Interfaces: Supports Ethernet (2 RJ45 ports), RS-485, and RS-232
• Communication Protocols: TCP/IP, Modbus TCP, SNP, EGD
• I/O Points: 2,048 discrete inputs/outputs and 32,640 analog inputs/outputs

Product Features

1. High-Performance Processor: Adopts the AMD SC520 processor to provide fast computing capabilities, which is suitable for complex control tasks.
2. Modular Design: Facilitates replacement and upgrading, and adapts to different application requirements.
3. High Reliability: Uses high-quality electronic components and advanced design technologies, making it suitable for harsh industrial environments.
4. Flexible Communication Capabilities: Supports multiple communication protocols and network topologies, such as star, bus, and ring networks.
5. Multitasking: Supports multitasking, enabling simultaneous execution of multiple control tasks, which improves the efficiency and flexibility of the system.

Structure and Composition

• Modular Design: Single-slot module for easy installation and maintenance.
• Communication Interfaces: Built-in Ethernet interfaces (2 RJ45 ports), RS-485, and RS-232.
• Power Supply: 24 VDC with a maximum power consumption of 4 W.
• Protection Level: IP67, suitable for harsh industrial environments.

Application Fields

• Industrial Automation: Widely used in manufacturing, energy, transportation, water treatment, automation equipment, and other fields.
• Specific Industries: Automotive, electronics, food and beverage, petrochemical, pharmaceutical, metallurgy, energy, and transportation.
• Application Scenarios: Production line automation, logistics control systems, environmental monitoring systems, etc.

Installation and Maintenance

1. Installation Environment: Ensure the module is installed in a dry and well-ventilated environment, away from high temperatures, humidity, and corrosive gases.
2. Power Supply: Use a stable power supply to avoid damage to the module caused by voltage fluctuations.
3. Anti-Static Measures: Before touching the module, be sure to take anti-static measures, such as wearing an anti-static wristband.
4. Professional Operation: Programming, configuration, and maintenance of the module should be performed by professional personnel to avoid module damage caused by incorrect operations.

————————————————————————————————————-
