1. Overview

2. Specifications

2.1 Display and Processing Capabilities

• High-resolution color touchscreen display, supporting real-time data visualization and operation interfaces.
• Powerful processing capabilities, enabling real-time data processing and analysis.

2.2 Communication and Interfaces

• Supports multiple communication interfaces, such as Ethernet, USB, RS-232/485, etc., facilitating integration with various devices and systems.
• Complies with VME64x, VME64, and VME32 bus standards, supporting a variety of VME modules and expansion.

2.3 Power Supply and Environment

• Power input: AC 100-240V, 50/60Hz, supporting a wide voltage range.
• Operating temperature: 0°C to 55°C; Storage temperature: -40°C to 70°C; Humidity range: 5%~95% (non-condensing).

2.4 Dimensions and Weight

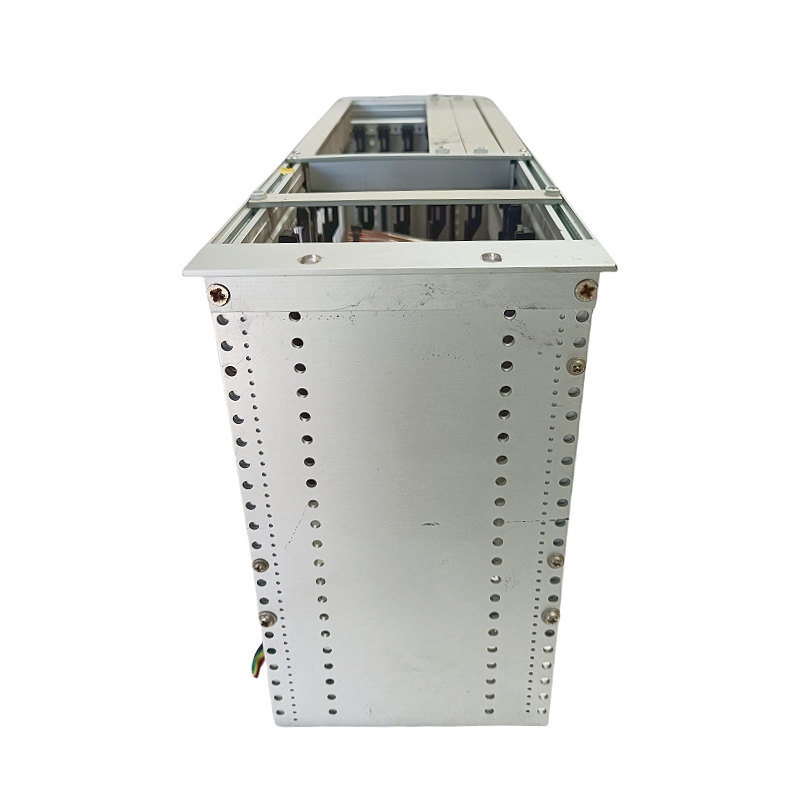

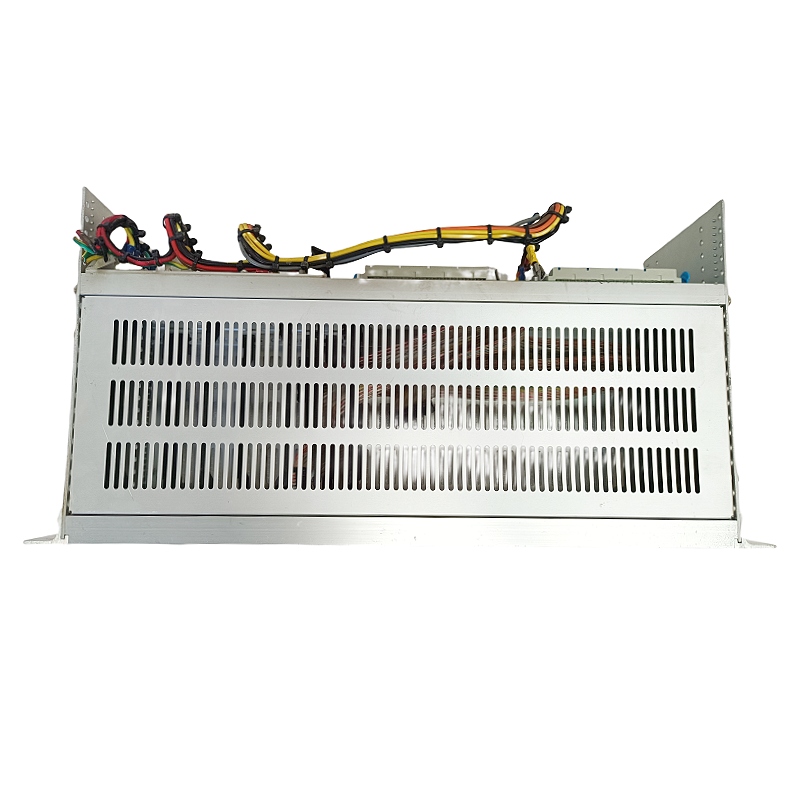

• Rack dimensions: 19-inch rack-mounted, 5U height, weight approximately 15kg.
• Module dimensions: 233 mm x 167 mm x 23 mm, weight approximately 800g.

3. Product Features

3.1 High Performance and Reliability

• Adopts high-performance FPGA and VME bus architecture, supporting high-speed data transmission and real-time processing.
• Uses high-quality components and undergoes strict testing to ensure long-term reliable operation.

3.2 Modular Design

• Supports modular design, allowing users to expand and customize according to their needs.
• Compatible with a variety of VME modules, such as CPU, I/O, data acquisition, and communication interface modules.

3.3 User-Friendliness

• Provides a user-friendly operation interface and pre-programmed functions, facilitating setup, monitoring, and control.
• Supports multiple communication protocols and interfaces, enabling easy integration with other systems.

4. Structure and Composition

4.1 Hardware Composition

• VME bus architecture: Complies with VME64x, VME64, and VME32 bus standards, supporting a variety of VME modules.
• Power supply module: Supports multiple power inputs and protection circuits to ensure stable operation.
• Interface module: Supports multiple communication interfaces, such as USB, RS-232, RS-485, and Ethernet.

4.2 Software and Functions

• Supports a customizable software platform, providing data visualization, control, and analysis functions.
• Enables pre-programmed functions and modular design, allowing users to customize according to their requirements.

5. Application Fields

5.1 Industrial Automation

• Widely used in industrial automation control systems, such as production line control, data acquisition, and communication equipment.
• Applicable to industries including manufacturing, power, transportation, medical care, and aerospace.

5.2 Military and Mission-Critical

• Specifically designed for mission-critical environments, meeting the high-reliability requirements of fields such as military and aerospace.

5.3 Other Fields

• Suitable for systems such as communication, testing, measurement, and simulation.

6. Installation and Maintenance

6.1 Installation

• Features a modular design for easy installation, supporting standard VME bus interfaces and connectors.
• Compatible with multiple installation methods, such as card insertion and rack mounting.

6.2 Maintenance

• Provides regular inspection and maintenance recommendations to ensure stable system operation.
• Offers technical support and warranty services to guarantee long-term reliability.
