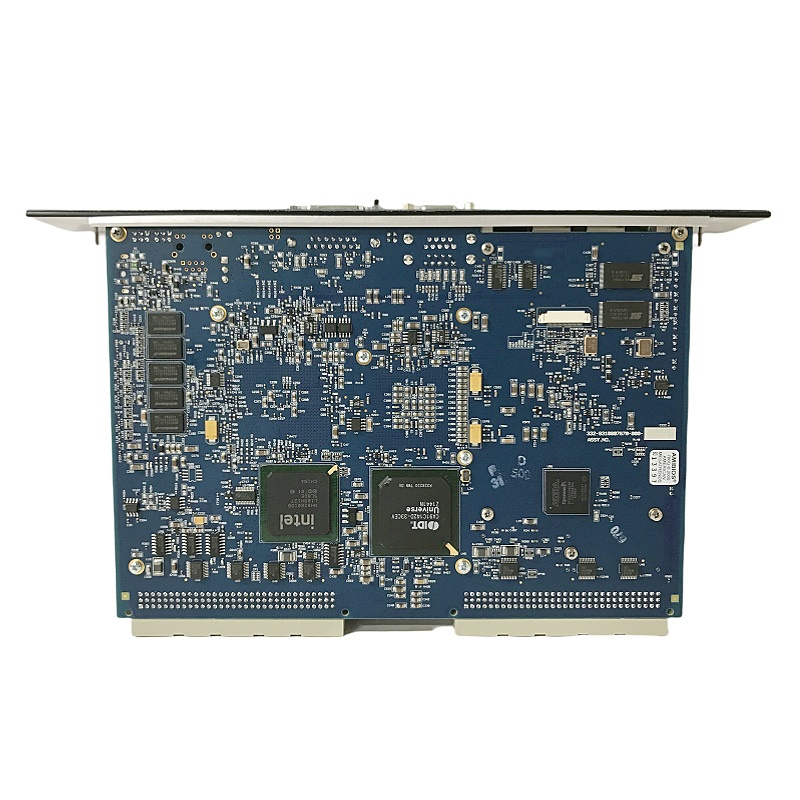

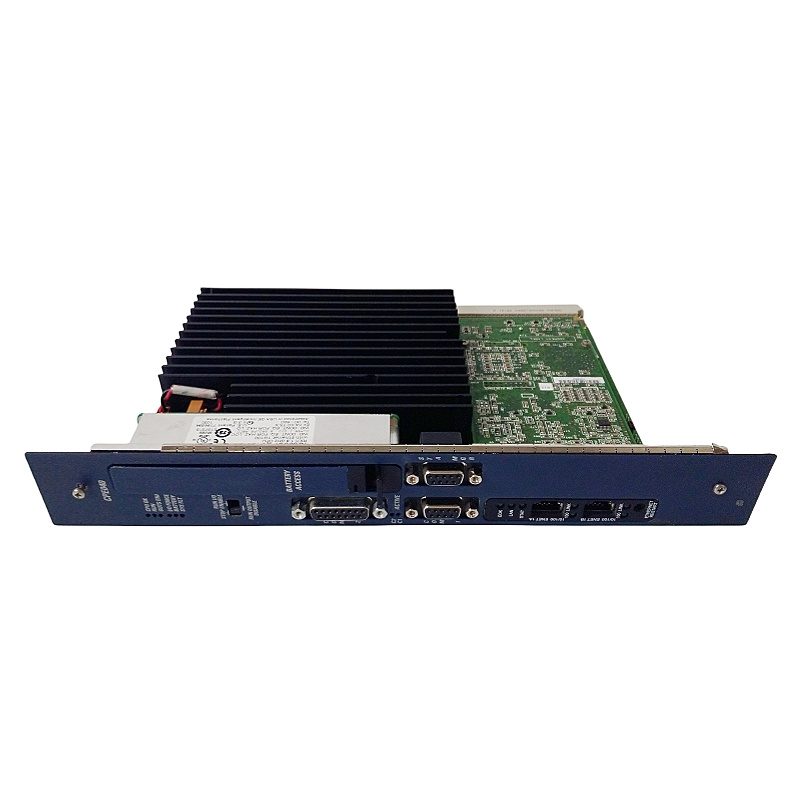

GE IC698CPE040

I. Overview

II. Parameters

• Processor: PowerPC 604e or Intel Pentium-M (varies by source)
• Clock speed: 400 MHz or 1.8 GHz (varies by source)
• Memory: 256 MB SDRAM or 64 MB user memory (varies by source)
• Communication interfaces: RS-232, RS-485, Ethernet
• Operating temperature: -20°C to 60°C or -25°C to +70°C (varies by source)
• Protection class: IP67
• Dimensions: 110 mm x 160 mm x 35 mm or 12.3 x 4.3 x 5.1 inches (varies by source)
• Weight: 0.5 kg or 2.5 pounds (varies by source)

III. Product Features

• High performance: Equipped with a high-performance processor, it has strong processing capabilities to meet the needs of complex control tasks.
• Strong scalability: Supports multiple I/O modules, with a maximum expandability of 2048 points, capable of meeting application requirements of different scales.
• Powerful communication capabilities: Supports various communication interfaces such as RS-232, RS-485, and Ethernet, enabling convenient communication with other devices.
• High reliability: Designed with industrial-grade components, it has high reliability and can work in harsh environments.
• Easy to use: The supporting programming software is user-friendly, allowing even personnel without programming experience to master it quickly.
• Rugged and durable design: The CPU features a rugged and durable design, capable of withstanding harsh industrial environments, including shock, vibration, and extreme temperatures.
• Advanced memory function: The CPU includes 256 MB SDRAM, providing sufficient memory to store control programs, data, and application software.

IV. Structure and Composition

• Processor: Responsible for executing control logic and data processing tasks.
• Memory: Used for storing control programs and data.
• Communication interfaces: Used for data exchange with other devices and systems.
• I/O modules: Supports multiple types of I/O modules, allowing flexible expansion of I/O points.
• Power module: Provides 24V DC power to ensure stable operation of the module.

V. Application Fields

• Manufacturing: Used to control robots, machine tools, conveyors, and other equipment on production lines.
• Process control: Used to control industrial processes such as oil, natural gas, and chemical industries.
• Electrical drive: Used to control electrical drive equipment such as frequency converters and servo drives.
• Building automation: Used to control systems such as air conditioning, lighting, and security in buildings.
• Transportation: Used to control equipment such as traffic lights and railway switches.
• Medical equipment: Used in automation systems for controlling medical equipment.
• Aerospace equipment: Used in automation systems for controlling aerospace equipment.
• Intelligent transportation systems: Used in automation systems for controlling intelligent transportation systems.

VI. Installation and Maintenance

• Installation method: Rack-mounted, suitable for RX7i I/O enclosures.
• Installation steps:
  1. Ensure the installation environment meets the requirements, such as temperature and humidity.
  2. Install the module on the RX7i I/O enclosure.
  3. Connect the power supply and communication interfaces.
  4. Configure the module parameters to ensure its normal operation.
• Maintenance recommendations:
  • Regularly check the operating status of the module to ensure it is running normally.
  • Regularly update the firmware and software to improve the stability and security of the system.
  • Regularly back up data to prevent data loss.
  • Regularly clean the module to prevent dust and dirt from affecting its performance.

————————————————————————————————————-
