GE ILI-K001 115D2236G1

Product Overview

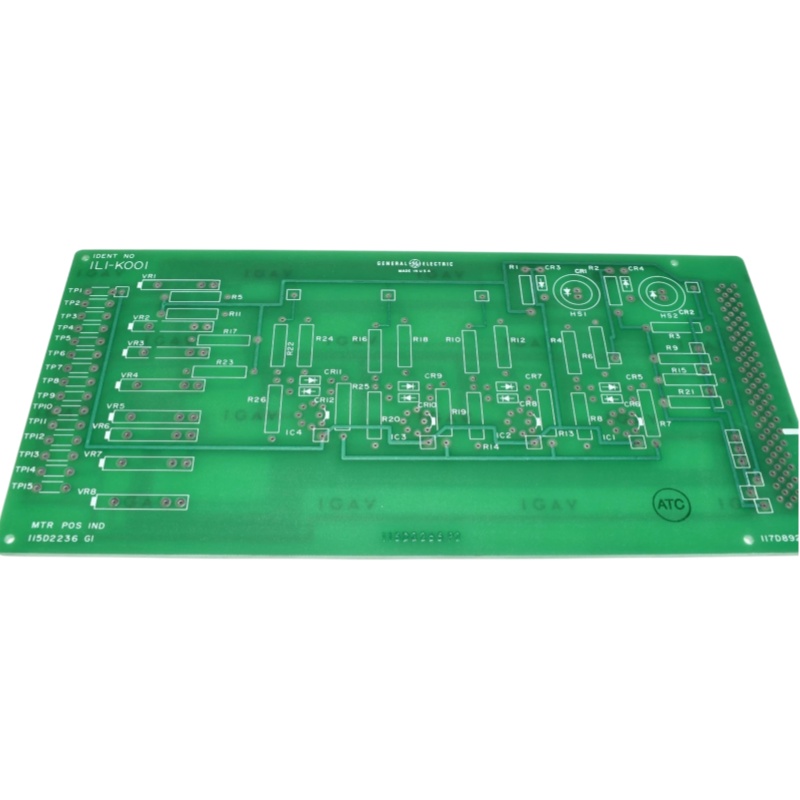

The GE ILI-K001 115D2236G1 is a Motor Position Indicator Printed Circuit Board (PCB) used in compatible GE industrial control equipment. Product references identify the board as an MTR POS IND PCB, while another parts listing describes 115D2236G1 as a printed circuit board for a motor position indicator.

The board is associated with the ILI-K001 assembly. A parts reference also links this assembly with 115D2265P2 and 117D8923G1, providing useful information for replacement and cross-checking.

Technical Specifications

• Manufacturer: General Electric (GE)
• Assembly: ILI-K001
• Part Number: 115D2236G1
• Board Function: Motor Position Indicator
• Board Type: Industrial Control PCB
• Related PCB Reference: 115D2265P2
• Related Assembly Reference: 117D8923G1
• Application: Motor position indication and industrial control
• Installation: Integrated into compatible control equipment

Publicly available sources confirm the model and functional description. However, detailed electrical specifications such as rated voltage, current, dimensions, and environmental limits are not sufficiently documented in the available references. These values should therefore be verified against the original GE documentation or equipment configuration.

Functional Characteristics

The 115D2236G1 is designed around motor position indication within an industrial control architecture. Its board-level design allows it to be integrated with the associated control circuitry rather than operating as an independent controller.

Key characteristics include:

• Motor position indication functionality
• Dedicated GE industrial PCB design
• ILI-K001 assembly compatibility
• Compact board-level construction
• Suitable for equipment maintenance and replacement
• Useful for restoring existing control-system functionality
• Multiple reference numbers available for cross-identification

The model is also listed by industrial parts suppliers under descriptions such as “MTR POS IND PCB”, which helps distinguish it from other GE ILI-series boards.

Board Structure

The GE ILI-K001 115D2236G1 is a dedicated electronic circuit board containing the circuitry and connection interfaces required for its motor position indication function. It is intended to operate as part of a larger GE control assembly.

When replacing the board, technicians should compare the board marking, connector layout, component arrangement, and associated part numbers. In particular, 115D2265P2 and 117D8923G1 appear in parts documentation alongside the ILI-K001 reference.

Application Areas

This PCB can be considered for industrial systems that use compatible GE motor position indication and control circuitry. Typical maintenance applications include:

• Industrial motor control
• Process automation systems
• Generator and turbine-related control equipment
• Industrial control cabinets
• Existing GE control-system refurbishment
• PCB replacement and spare-parts inventory

For an exact application, the installed equipment documentation should be checked because the same board-level family can contain different functional modules.

Installation and Maintenance

Before installation, isolate the relevant equipment from its power source and follow the applicable electrical safety procedures. Carefully document existing connections before removing the original board.

Next, inspect the replacement PCB for damaged connectors, corrosion, contamination, or other visible defects. Install it carefully and avoid excessive pressure on the board or components. Afterward, verify all connections before restoring power.

For storage, use a clean, dry, anti-static environment. Keep the PCB away from moisture, dust, vibration, and electrostatic discharge. When sourcing a replacement, confirm ILI-K001 and 115D2236G1 together with the board’s physical configuration to help ensure compatibility. Public listings show both new/open-box and used examples of this part, so condition and revision should also be checked before purchase.
