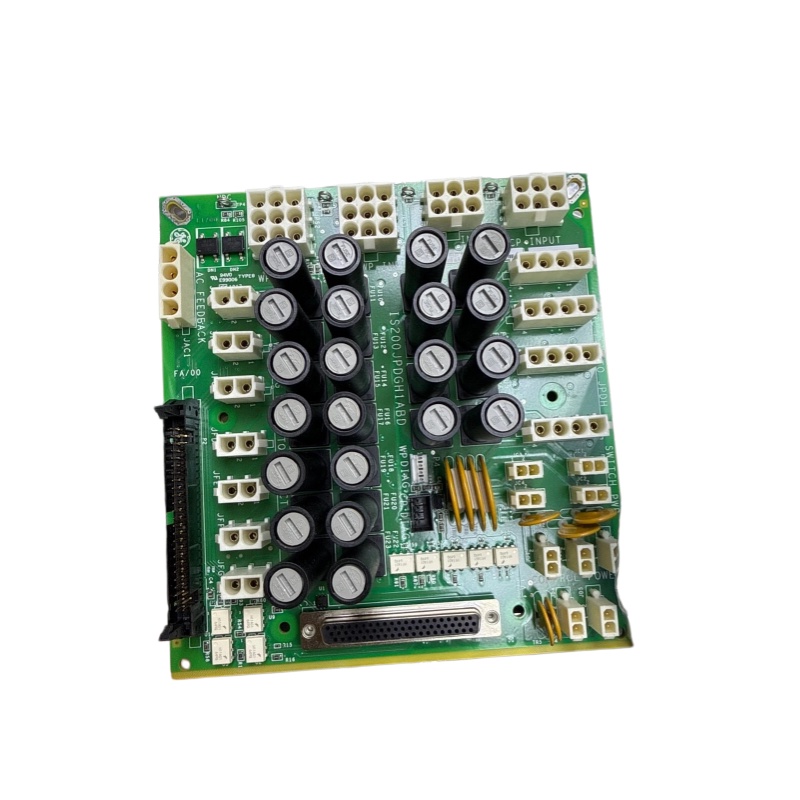

GE IS200JPDGH1A IS200JPDGH1ABD Power Distribution Board
GE IS200JPDGH1A
1. Product Overview
2. Technical Specifications
|
Parameter Item
|
Specification
|
|---|---|
|
Rated Power
|
200kW
|
|
Rated Voltage
|
400VAC / 28VDC / 24VDC
|
|
Input Voltage
|
110VAC
|
|
Rated Current
|
280A / Output Current: 0-1A
|
|
Operating Temperature
|
-30℃ to 65℃ / -40℃ to 70℃
|
|
Power Frequency
|
50/60Hz
|
|
Control Accuracy
|
Speed control accuracy: ±0.01%; Torque control accuracy: ±0.5%
|
3. Product Features
- Power Distribution Capability: Distributes a single power supply output to multiple loads to support multi-device power supply scenarios.
- Maintenance Switch Design: Each load channel is equipped with an independent maintenance switch, facilitating convenient daily inspection, debugging and maintenance operations.
- Fuse Protection with Indicator: Equipped with fuses with local indicator lights, providing reliable circuit overcurrent and short-circuit protection for equipment safety.
- Chemical Coating Protection: The circuit board is treated with professional chemical coating to effectively protect connectors and electronic components from corrosion and damage.
- High-Density Layout: Adopts a high-density connection design, which saves installation space and is fully adaptable to harsh industrial operating environments.
- Modular Structure: The standardized modular design simplifies on-site installation, disassembly and replacement procedures, reducing maintenance costs.
- Dual Power Supply Support: Compatible with dual DC power supply input, improving power supply stability and equipment operational reliability.
- Humidity Adaptability: Supports I/O humidity control, suitable for non-condensing environments with humidity ranging from 5% to 95%.
4. Structure & Composition
- Housing Material: Aluminum alloy
- Board Type: Jumper Power Distribution Card
- Dimension: 10cm × 10cm × 5cm / 16cm × 16cm × 12cm
- Weight: 2.5kg / 0.8kg
- Ingress Protection Rating: IP65
- Protection Class: Class I
- Compatible Connectors: Supports multiple connector models including 336A5026LGG015 and 336A5026JFG015
- Installation Method: DIN rail mounting
- Compatible Components: Fully compatible with PPDA I/O Pack
5. Application Fields
- Industrial Automation: Widely deployed in various industrial automation control systems to realize stable power distribution and system operation control.
- Turbine Control Systems: Applied to GE Turbine Control System for gas and steam turbine controller operation.
- Distributed Turbine Control Systems: Serves as a core power distribution component for GE distributed turbine control systems.
- Combined Cycle Gas Turbine Power Plants: Suitable for power supply control of gas turbine control systems in power generation plants.
- Gas-Driven Compressor Units: Applied in upgrading and renovation projects of compressor unit control systems.
- High-Stability Environmental Scenarios: Ideal for industrial scenarios requiring high power supply stability and precise ambient humidity control.
————————————————————————————————————-
