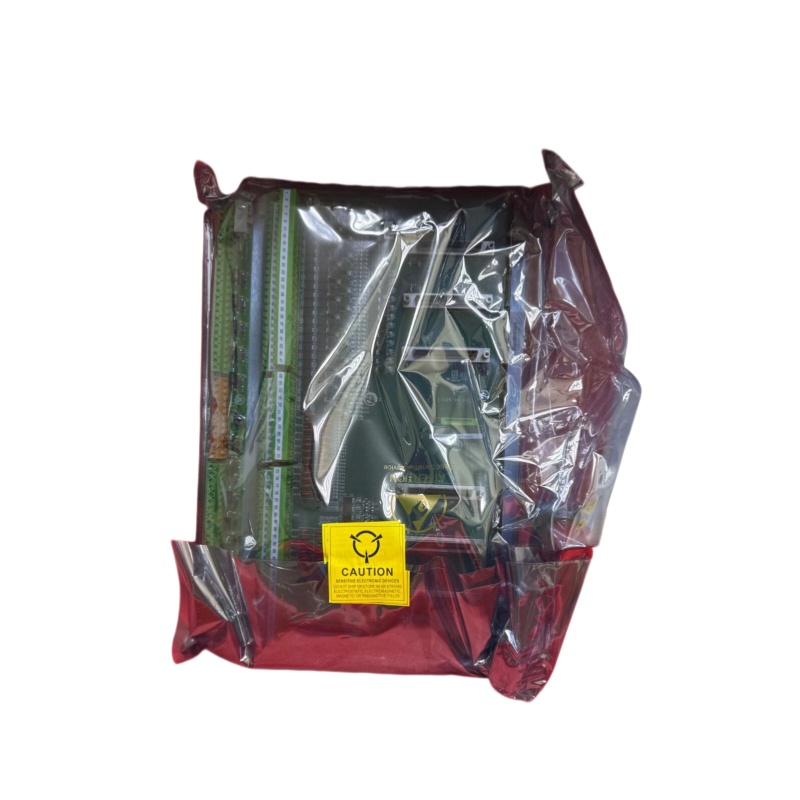

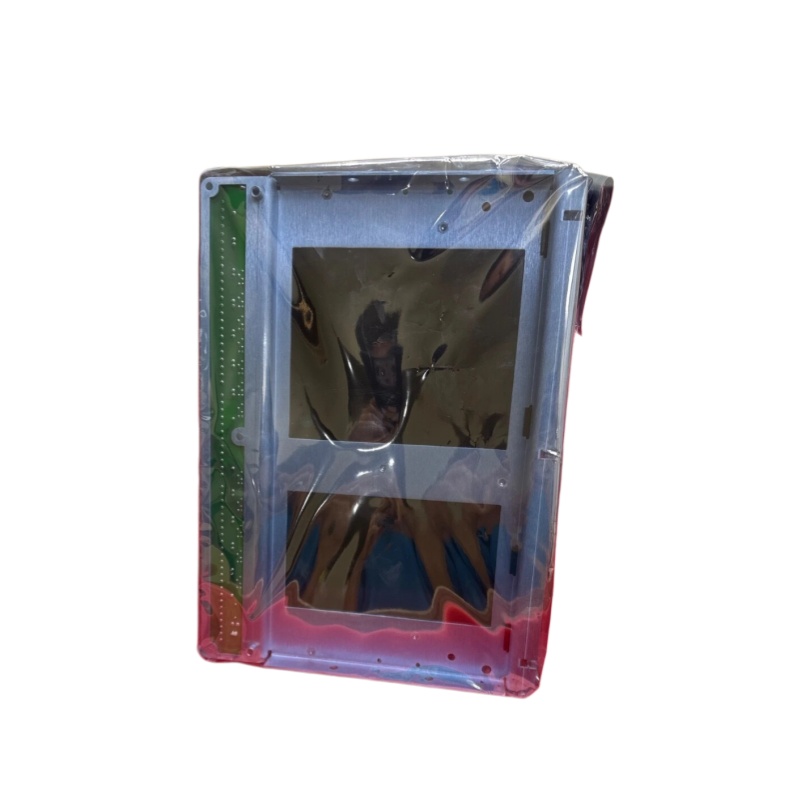

GE IS230TCATH1A

1. Product Overview

The GE IS230TCATH1A is a Core Analog Terminal Board Assembly manufactured by General Electric. It belongs to the GE Mark VIe series control system, the current-generation gas turbine control platform developed by GE. Built on the Mark VI architecture, the Mark VIe system features expanded distributed I/O capabilities, diversified communication options, and enhanced integration performance with plant-level monitoring systems, serving as a mainstream high-performance control system for industrial power and gas turbine applications worldwide.

Basic Product Specifications

Product Part Number: IS230TCATH1A
Manufacturer: General Electric
Country of Origin: United States (USA)
Product Type: Core Analog (TCAT) Terminal Board Assembly / Kernel Analog Terminal Board Assembly Module
Product Series: Mark VIe
Warranty Period: 365 days

2. Technical Parameters

Parameter Item	Specification
4-20 mA Signals	24 channels (Twenty-four 4-20 mA signals)
Seismic/Vibration Signals	12 channels (Twelve seismic signals)
LVDT Windings	12 channels (Twelve LVDT windings)
Magnetic Pulse Rate Flow Signals	2 channels (Two magnetic pulse rate flow signals)
Hardware Voted Analog Outputs	3 channels of 4-20 mA analog outputs (Hardware-voted)
24V DC Output Channels	12 channels with a maximum output current of 25mA
JGPA Extended Outputs	Additional 12 channels of 24V DC outputs with a 25mA capacity
Power Supply Voltage	28V DC with a tolerance of ±5%, supplied by one or multiple PCAA modules

3. Product Features

High Reliability: GE Mark VIe series controllers have proven excellent operational stability and protective reliability in thousands of TMR (Triple Modular Redundancy) systems globally, ensuring long-term stable operation of industrial control systems.
Distributed I/O Architecture: As a advanced distributed control system (DCS), the Mark VIe system is equipped with flexible distributed I/O configuration capabilities, adapting to diverse industrial layout and control demands.
Modular Design: The TCAT terminal board adopts a standardized modular structure, which greatly simplifies on-site installation, daily inspection and equipment maintenance work, and reduces system downtime costs.
Strong Anti-Interference Capability: The contact input terminals are built with professional noise suppression circuits, which can effectively resist surge interference and high-frequency electromagnetic noise, ensuring accurate signal acquisition in complex industrial electromagnetic environments.
Open Architecture: Designed based on a universal open architecture, the board supports seamless docking and data interaction with third-party industrial systems and automation equipment, with strong compatibility.
Excellent Scalability: It can be matched with JGPA expansion modules to expand additional output channels, flexibly meeting the upgraded control requirements of industrial production.

4. Structure and Composition

Physical Form: Standard rectangular printed circuit assembly module
Installation Method: Supports DIN rail mounting and flat surface mounting
Internal Components: The board integrates various precision electronic components including resistors, capacitors, diodes and integrated circuits to realize signal acquisition, conversion and output control functions.
Supplemental Description: Complete official documents involving detailed structural drawings and internal circuit composition of the product are not available in public search resources.

5. Application Fields

As a core analog terminal board of the Mark VIe control system, IS230TCATH1A is widely used in high-reliability industrial control scenarios, mainly covering the following fields:

Gas Turbine Control System: Applied to automatic control of new gas turbine projects and technical upgrading and renovation of old gas turbine units.
Power Plant Equipment Control: Serves as a core signal acquisition and output component for gas turbines and other auxiliary equipment in thermal power plants.
Gas Pipeline Compressor Control: Widely deployed in the control system of gas-driven compressor units for long-distance gas transmission pipelines (such as the West-East Gas Transmission Project).
Power Infrastructure Construction: Applied to TMR control systems in global power generation projects and industrial power infrastructure scenarios, providing stable and reliable signal control support.

6. Installation and Maintenance

6.1 Installation Precautions

Storage Conditions: The circuit board shall be stored in an electrostatic-sensitive protective storage box to avoid electrostatic damage, dampness and improper storage affecting product performance and service life.
Installation Environment: Installation and commissioning operations must be carried out in a standard working environment that meets industrial control equipment operation specifications.
Installation Mode: Dual installation options are available, including standard DIN rail mounting and flat surface fixed mounting.

6.2 Maintenance Key Points

Regular Maintenance: Summarize and learn from equipment operation and maintenance experience regularly, formulate standardized maintenance plans, and continuously improve the overall operational reliability of the control system.
Fault Handling: Guide on-site troubleshooting and maintenance work by referring to historical equipment shutdown fault data statistics and professional fault handling reports to improve fault resolution efficiency.
System Protection Function: The system is equipped with automatic operation adjustment and intelligent protection mechanisms, which can automatically trigger corresponding protection measures and risk control strategies in case of system faults or abnormal operating conditions to ensure equipment and production safety.
