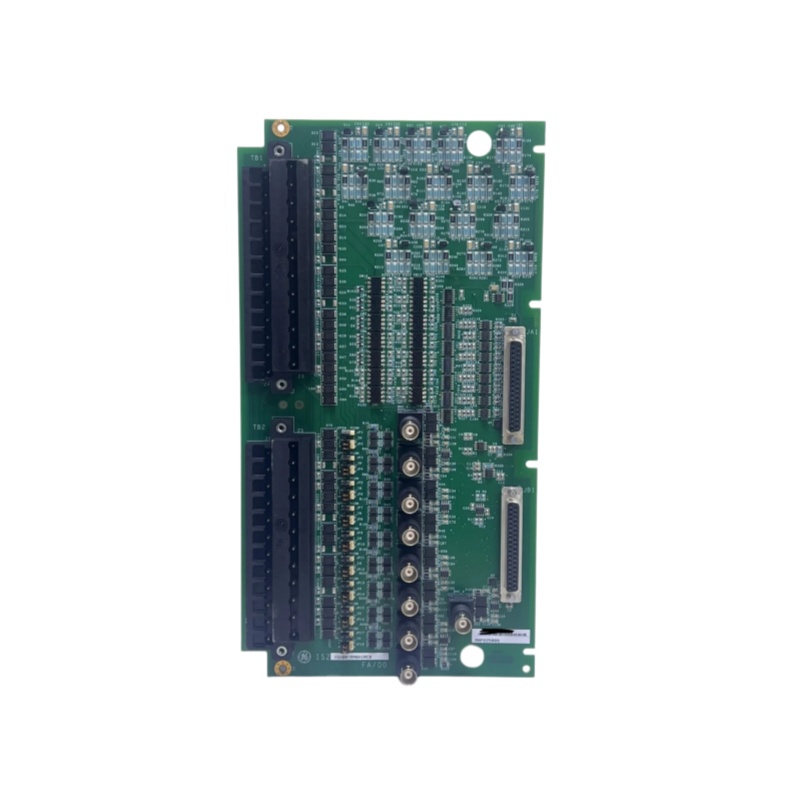

GE IS200TAMBH1ACB Terminal Board
GE IS200TAMBH1ACB
The GE IS200TAMBH1ACB (belonging to the same product line as IS200TAMBH1A) is an Acoustic Monitoring Terminal Board manufactured by General Electric (GE). It is one of the components of the Mark VI Speedtronic IS200 series. Designed for turbine control systems, this board is responsible for collecting acoustic and vibration data to monitor mechanical conditions and detect equipment wear or potential faults in advance. The product is manufactured by GE in Salem, Virginia, USA.
Technical Specifications
|
Parameter Item
|
Specification
|
|---|---|
|
Manufacturer
|
General Electric (GE)
|
|
Model
|
IS200TAMBH1ACB
|
|
Product Series
|
Mark VI Speedtronic IS200
|
|
Origin
|
USA
|
|
Dimensions
|
16cm × 16cm × 12cm
|
|
Weight
|
0.8kg
|
|
HS Code
|
85389091
|
|
Terminal Configuration
|
2 terminal blocks with a total of 48 connection terminals
|
|
Power Supply Mode
|
Current-limited +24V DC output and standard +24V DC output (dual power supply per channel)
|
Product Features
Multi-channel Signal Processing: It supports nine independent channels with built-in signal processing capabilities for each channel, effectively improving the efficiency, accuracy and diagnostic performance of the acoustic monitoring system.
Powerful Input and Output Capability: It supports multiple functions including power output management, input type selection, loop configuration and open-circuit connection detection to meet diverse system control requirements.
Conformal Coating Protection: Equipped with professional conformal coating as the core protective feature, it maintains stable operating performance in harsh industrial environments.
Third-party Compatibility: It is compatible with sensors from a wide range of third-party suppliers, including Bentley Nevada, Vibro-meter, GE/Reuter-Stokes and other mainstream brands.
Modular Design: The standardized modular structure enables seamless integration with existing GE control systems with high adaptability.
Compact Structure: The miniaturized and compact design simplifies on-site installation and daily maintenance operations, saving equipment layout space.
Structure and Composition
PCB Board Architecture: Adopts professional PCB board design and belongs to the TAMB group (TAMB stands for Acoustic Monitoring Board) of the Mark VI Speedtronic series.
Twisted Pair Cable Routing: Differential input signals are directly transmitted to the VAMB board through 18 twisted pair cables at the front end of the Versa Module Eurocard (VME) board.
Cooperative Operation with VAMB Board: The TAMB board works in tandem with the IS200VAMB board. CCSA or third-party charge amplifiers transmit mV output signals to the TAMB board for processing.
Electromagnetic Transient Suppression: Built-in electromagnetic transient suppression function eliminates signal interference and ensures high-quality and stable signal transmission.
VME Interface Compatibility: Designed in strict accordance with the Versa Module Eurocard (VME) bus standard, with strong interface universality and compatibility.
Application Fields
Turbine Monitoring System: Widely applied in gas turbine and steam turbine operation scenarios for real-time monitoring and control of vibration, pressure, temperature and other core operating parameters.
Steam Turbine Monitoring and Control: Suitable for acoustic monitoring of various turbine systems, which can accurately identify early signs of mechanical wear and potential equipment failures.
Energy Production Facilities: Applied in chemical processing, petrochemical and energy production industries that require precise mechanical system control and high operational stability.
Industrial Process Monitoring: Ideal for industrial automation scenarios that demand high reliability, stability and continuous operation of monitoring systems.
Installation and Maintenance
Installation Instructions
Modular Design Advantage: The standardized modular structure allows fast and convenient integration into existing GE control systems without complex transformation.
Compact Layout: The compact overall structure reduces installation space occupation and adapts to various on-site equipment layout environments.
Standard Connector Configuration: Equipped with 2 terminal blocks and 48 connection terminals, providing standardized and convenient wiring interfaces for on-site construction.
Maintenance Tips
Conformal Coating Inspection: Regularly check the integrity and protective performance of the conformal coating to ensure long-term stable protection against damp and harsh environments.
Open-circuit Detection: Utilize the built-in open-circuit detection function of the board for rapid fault diagnosis and troubleshooting to improve maintenance efficiency.
————————————————————————————————————-
