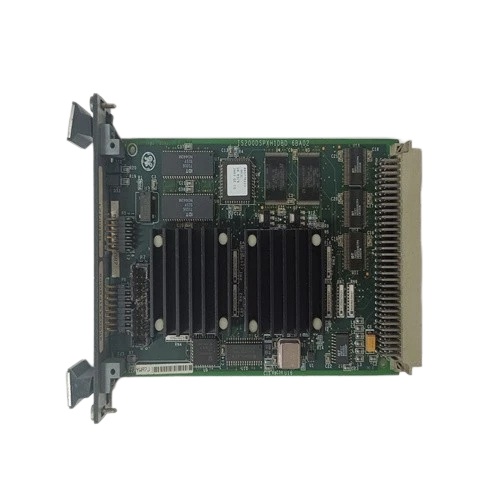

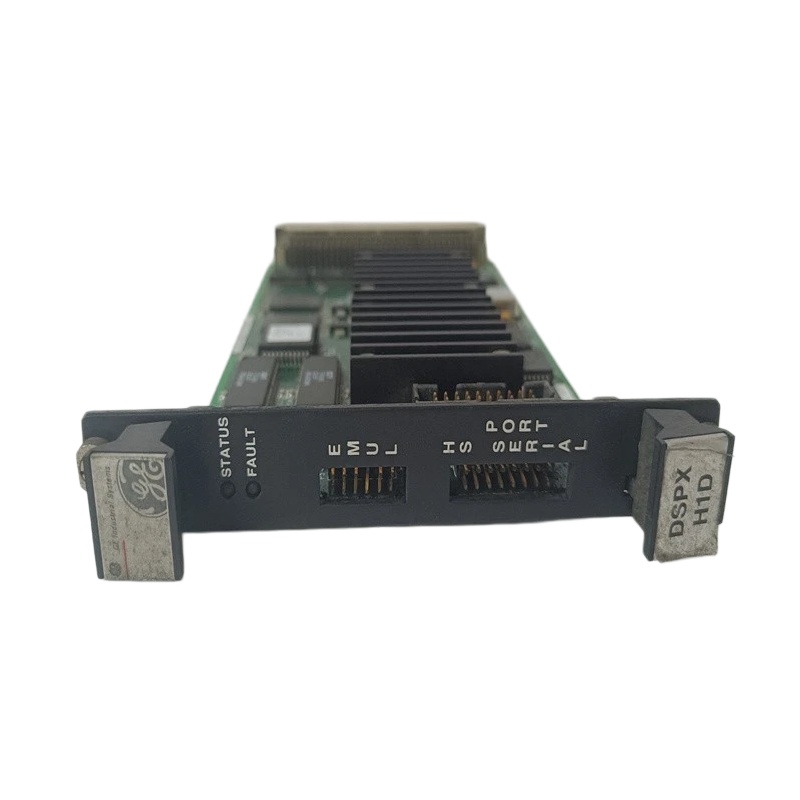

GE IS200DSPXH1D

1. Product Overview

2. Technical Specifications

3. Product Features

• High Performance: Equipped with a high-performance DSP chip, the module supports fast and accurate data processing and delivers powerful industrial data computing capabilities to meet high-precision control requirements.
• High Reliability: Adopting redundant circuit design and strict industrial-grade quality control standards, it is integrated with professional diagnostic functions to ensure stable and long-term reliable operation of the equipment.
• Easy Maintenance: The standardized modular structure enables convenient disassembly, replacement and maintenance. Built-in self-diagnosis functions support rapid fault detection and troubleshooting, greatly reducing maintenance costs and downtime.
• Integrated ASIC: Embedded with Application-Specific Integrated Circuit (ASIC) to realize diversified and integrated signal processing and control functions.
• Strong Programmability: Compatible with mainstream programming languages such as C and C++, supporting secondary development, program debugging and function customization for different industrial scenarios.

4. Structure and Composition

• DSP Chip: The core processing unit of the module, responsible for undertaking all high-speed real-time data analysis, calculation and processing tasks.
• Memory Components: Onboard multi-type storage units, including Flash, RAM, NVRAM and other storage modules, to meet different data storage and reading demands.
• Firmware System: Composed of three core firmware types: application running code, system configuration parameters and boot loader, ensuring normal system startup and operation.
• I/O Interfaces: Multiple standard input and output communication channels, realizing stable data interaction and signal transmission with other supporting system components.
• Logic & Interface Functional Units: Provide professional logic operation, signal conversion and interface adaptation functions to support the overall operation of the control system.

5. Application Fields

• Gas Turbine Control: Applied to Mark VI gas turbine control system, EX2100 and EX2100e generator excitation control systems.
• Power Industry: Used for gas turbine operation control and generator magnetic field regulation in thermal power plants.
• Oil and Gas Industry: Applied to automatic control systems of industrial compressors and delivery pumps.
• Chemical Industry: Responsible for logic control and data processing of chemical reactors and separators.
• Industrial Automation: Suitable for complex logic control and real-time data processing of general industrial automatic control systems.
• Other Industrial Scenarios: Supporting bridge equipment regulation, motor speed regulation and gating function management.

6. Installation and Maintenance

6.1 Installation Precautions

• Compact Structural Design: The module adopts a compact integrated structure, which is lightweight and easy to install and deploy in various industrial control cabinets.
• Standard Operating Environment: Ensure the on-site operating temperature is kept within the range of -40℃ to +70℃ to avoid abnormal operation caused by extreme temperature.
• Anti-static Storage Protection: It is recommended to store the module in a professional anti-static storage box and comply with standard storage conditions to prevent module circuit damage and functional failure caused by static electricity and improper storage.

6.2 Maintenance Key Points

• Modular Maintenance: The independent modular design supports single-module disassembly and replacement, which simplifies the maintenance process and improves maintenance efficiency.
• Built-in Self-diagnosis Function: The intelligent self-diagnosis system can automatically detect equipment faults, accurately locate problems, and provide effective guidance for maintenance and repair.
• Professional After-sales Service: The control board is equipped with complete supporting maintenance services. Users can purchase new and refurbished products and obtain professional maintenance and technical support from official suppliers.
• Official Manual Guidance: The official operation and maintenance manual corresponding to the module is GEI-100267, which can be referred to for standardized operation, parameter setting and daily maintenance.
