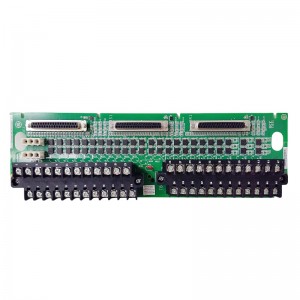

GE IS200TBCIS2CCD digital input module
GE IS200TBCIS2CCD
Overview
The GE IS200TBCIS2CCD is part of the GE Mark VI series, which falls under the GE Speedtronic family. It is a digital input module specifically designed for industrial control applications. This module can receive digital signals from external devices and sensors, then transmit them to the main control system for monitoring and controlling various industrial process parameters. It boasts high reliability, high precision, and excellent expandability, making it suitable for complex industrial environments.
Parameters
- Model: IS200TBCIS2CCD
- Type: Digital input module
- Dimensions: 13.39 inches x 8.5 inches x 2.17 inches (approximately 340 mm x 216 mm x 55 mm)
- Weight: 2.2 pounds (approximately 1.0 kg)
- Voltage: 24 VDC
- Power Consumption: 10 watts
- Operating Temperature: -40°C to +85°C
- Humidity Range: 5% to 95% (non-condensing)
- Communication Interfaces: Ethernet, RS485
- Input/Output Channels: 16 digital input channels, 16 digital output channels
- Response Time: 10ms
- Input/Output Range: 0 to 24V DC
Product Features
- High Performance: Manufactured with high-quality materials, ensuring excellent reliability and durability.
- High Reliability: Suitable for harsh industrial environments, guaranteeing stable system operation.
- Flexibility: Supports multiple configuration options, making it applicable to different industrial applications.
- Ease of Use: Compact in size, easy to install, and suitable for use in space-constrained environments.
- Expandability: Supports seamless integration with other control systems, PLCs, sensors, actuators, and other devices.
- Compatibility: Compatible with control systems such as Mark VI, Mark VIe, and Mark VIeS.
Structure and Composition
The GE IS200TBCIS2CCD consists of several key components, including:
- Control Circuit Board: Responsible for processing and transmitting digital signals.
- Isolation Terminal Blocks: Groups of isolation terminal blocks with contact inputs for connecting external devices.
- Communication Interfaces: Including Ethernet and RS485 interfaces for communication with the main control system.
- Power Supply Module: Provides 24V DC power supply to ensure the normal operation of the module.
Application Fields
The GE IS200TBCIS2CCD is widely used in the following fields:
- Industrial Automation: Used for monitoring and controlling various industrial process parameters such as temperature, pressure, and liquid level.
- Power Energy Management: Used to manage the control functions of industrial gas turbines and steam turbines.
- Manufacturing Industry: Used for controlling industrial equipment such as robot control, CNC machine tools, packaging machinery, printing machinery, and semiconductor manufacturing equipment.
- Transportation: Used for the control and monitoring of transportation systems.
- Aerospace: Used in control systems in the aerospace field.
Installation and Maintenance
- Installation Methods: Supports DIN rail or panel mounting, facilitating installation and maintenance.
- Installation Steps:
- Confirm that the input voltage and output voltage meet the requirements.
- Install the module in a dry and well-ventilated place.
- After confirming that the module is connected correctly, turn on the power.
- In case of abnormal conditions during use, stop using it immediately and contact after-sales personnel.
- Maintenance Recommendations:
- Regularly check the connection and operation status of the module.
- Keep the environment around the module clean and dry.
- Avoid using it in environments with high temperature, high humidity, or corrosive gases.
————————————————————————————————————-
