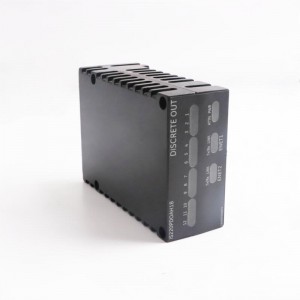

GE IS220PDOAH1B I/O Pack Module
GE IS220PDOAH1B
I. Overview
The IS220PDOAH1B is an I/O package module in the GE Mark VIe series, designed to connect one or two input/output (I/O) Ethernet networks to dedicated discrete output terminal boards. It implements control functions through a general-purpose processor board and an acquisition board customized for discrete output functions. This module is widely used in industrial sectors such as power generation, oil and gas, chemicals, metallurgy, papermaking, and environmental protection, particularly in gas turbine control and motion control systems.
II. Parameters
- Model: IS220PDOAH1B
- Manufacturer: General Electric
- Series: Mark VIe
- Product Type: Discrete output package
- Dimensions: 8.26 cm (height) × 4.19 cm (width) × 12.1 cm (depth)
- Weight: Approximately 0.8 kg
- Relay Channels: 12
- Relay and Coil Monitoring Inputs: 15 package inputs
- Input Voltage: 24V DC
- Operating Temperature Range: -20°C to 60°C
- Rated Voltage: 24.0 VDC, with a maximum rating of 28.6 VDC; the maximum voltage rating for contact inputs is 32 VDC
- Communication Interface: Dual 100MB full-duplex Ethernet ports
- Mounting Method: DIN rail or panel mounting
- Power Requirements: Depending on the specific voltage and current requirements of the application
- UL Certification: Suitable for non-hazardous and hazardous locations; specific hazard levels and area markings refer to documentation
III. Product Features
- High Performance: Adopts advanced control technology and high-quality components to ensure stable operation of the frequency converter.
- High Reliability: Equipped with 150% overload capacity for 1 minute.
- Ease of Use: Offers multiple operating modes for users to choose according to actual conditions; provides various functions such as programming and fault diagnosis to meet different user needs.
- Multiple Communication Functions: Supports multiple communication protocols, such as RS485, Modbus RTU, CAN, etc., enabling communication with upper-level systems or other devices.
- High-Speed Processing Capability: The IS220PDOAH1B has strong processing capability, capable of handling large amounts of data at high speed.
- Programmability: The IS220PDOAH1B can be programmed to control industrial processes and machines.
- Safety: The IS220PDOAH1B is secure, protecting industrial processes and machines from external interference and attacks.
- Easy Maintenance: The IS220PDOAH1B is easy to maintain, allowing for remote diagnosis and maintenance, while ensuring high reliability and availability.
- Integration and Flexibility: Provides greater mechanical control integration and flexibility.
- Intelligent Fault Diagnosis: Enables better and easier fault diagnosis when the standard control layer is intelligent.
- Convenient Maintenance: Faster and more convenient maintenance.
- Cost-Effectiveness: Reduces installation, commissioning, and reconfiguration costs.
- High Efficiency and Low Power Consumption: Uses TrenchFET technology to provide high efficiency and low resistance characteristics, suitable for occasions requiring high switching speed and low power consumption.
IV. Structure and Composition
The IS220PDOAH1B consists of a general-purpose processor board and an acquisition board customized for discrete output functions. The processor features a high-speed processor, RAM and flash memory, dual independent 10/100 Ethernet ports, hardware watchdog timer and reset circuit, local ambient temperature sensor, infrared serial communication port, status indicator LEDs, electronic ID and ID reading capability, extensive acquisition board programmable logic support, input power connector soft start/current limiter, and sequencing and monitoring functions for local power supply. On the output side, the PDOA is equipped with a DC-37 pin connector, which seamlessly connects with the corresponding terminal board connector, simplifying installation and maintenance processes.
V. Application Fields
- Motion Control: Including human-machine interfaces, controllers, frequency converters, servo systems, stepping systems, industrial computers, PLCs, motors, reducers, sensors, and related instruments.
- Gas Turbine Control: Used for efficient and reliable operation of gas turbines, ensuring seamless communication and control with sensors, controllers, and other components.
- Safety Control Systems: Suitable for the Mark VIeS safety system, emphasizing high performance, flexibility, connectivity, and redundancy under certain conditions.
- Power Generation: Monitoring and controlling equipment such as turbines or generators.
- Process Control: Automation of manufacturing processes.
- Field Control: Remote operation of equipment in complex network environments.
VI. Installation and Maintenance
Installation: First, fix the selected terminal board in the desired position. For simplex configuration, connect one PDOA I/O package to the terminal board connector; for TMR (Triple Modular Redundancy) setup, connect three PDOA I/O packages to the terminal board connector. Ensure mechanical stability by securing the package using the threaded studs located next to the Ethernet ports, and adjust the bracket position to avoid applying right-angle force to the DC37 connector. Insert one or two Ethernet cables according to the system configuration; the PDOA package can operate using either port.
Maintenance: The IS220PDOAH1B is designed for reliability, but improper handling and storage may affect its functionality. It is recommended to store the module in an electrostatic-sensitive storage box under recommended conditions. In case of problems, quick testing, diagnosis, and repair can be performed. Quick repair options are available, with professional tools and experts conducting repairs in the control environment. All repair parts are in sufficient stock to ensure that replacement components meet or exceed OEM standards, and all repairs undergo FVT testing with a warranty.
————————————————————————————————————-
