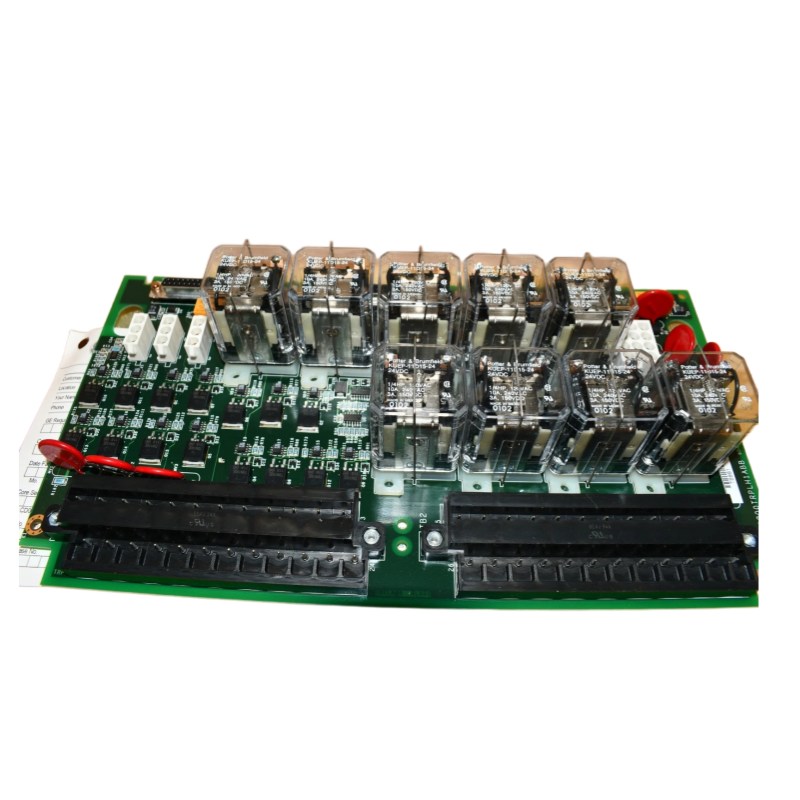

GE IS200TRPLH1A

The GE IS200TRPLH1A is a primary trip terminal board associated with the GE Mark VI Speedtronic turbine control system. It is designed for large steam turbine applications and forms part of the turbine protection and emergency trip circuitry.

The board works with the turbine protection controller and related terminal hardware to provide primary overspeed and trip functions. It is also identified for use in Mark VI and Mark VIe system configurations. GE documentation and current certification records include IS200TRPLH1A among the applicable industrial control models.

Technical Data

The exact system configuration, wiring arrangement, and electrical ratings should be verified against the applicable GE documentation before installation or replacement.

Functional Design and Components

The IS200TRPLH1A is built around the requirements of turbine trip protection rather than general-purpose signal processing. Its board assembly incorporates terminal strips, D-shell connectors, relays, MOV protection devices, resistors, transistors, integrated circuits, and wire jumpers.

In a typical Mark VI turbine protection arrangement, the TRPL board operates together with a TREL terminal board. The TRPL provides the negative side of the trip-solenoid circuit, while the TREL provides the corresponding positive side. Together, these boards can interface with up to three trip solenoids.

For TMR applications, the trip circuitry uses three power buses and relay-based voting. A two-out-of-three voting arrangement helps support turbine protection logic by requiring agreement between multiple trip paths before the associated trip action is generated.

Where It Is Used

The primary application of the GE IS200TRPLH1A is large steam turbine control and protection. It can be found in turbine automation architectures where dependable emergency-trip and overspeed protection are essential.

Typical application areas include:

• Steam turbine protection systems
• GE Mark VI turbine control installations
• GE Mark VIe modernization projects
• Turbine emergency trip circuits
• Primary overspeed protection systems
• Industrial power-generation equipment
• Turbine maintenance and spare-parts programs

Because the board is part of a safety-related turbine protection circuit, model identification and system compatibility are particularly important when sourcing a replacement.

Installation and Maintenance Notes

The IS200TRPLH1A should only be installed or serviced by personnel familiar with GE turbine control equipment and the applicable safety procedures. Before replacing the board, technicians should verify the complete part number, revision, wiring, connector arrangement, and associated VTUR or PTUR configuration.

The board should be handled using appropriate electrostatic-discharge precautions. Power must be isolated according to the equipment’s approved maintenance procedure before accessing the terminal board. Particular attention should also be given to trip-circuit wiring, relay condition, connectors, jumpers, and signs of overheating or physical damage.

For replacement procurement, comparing the existing board with GE IS200TRPLH1A before shipment is recommended. Correct identification can reduce installation delays and help maintain the original turbine protection architecture.

Why Choose IS200TRPLH1A for Replacement

For facilities operating legacy GE Mark VI or compatible Mark VIe turbine control systems, maintaining suitable spare boards can be important for minimizing unplanned downtime. The IS200TRPLH1A provides the dedicated terminal-board functionality required by its original turbine protection architecture.

When purchasing an IS200TRPLH1A replacement, buyers should confirm the exact catalog number, board revision, physical condition, connector configuration, and compatibility with the existing turbine control system. A professionally inspected or tested spare can also provide a practical option for long-term maintenance inventory.
