GE IS215UCVEH2AC Controller Board
GE IS215UCVEH2AC

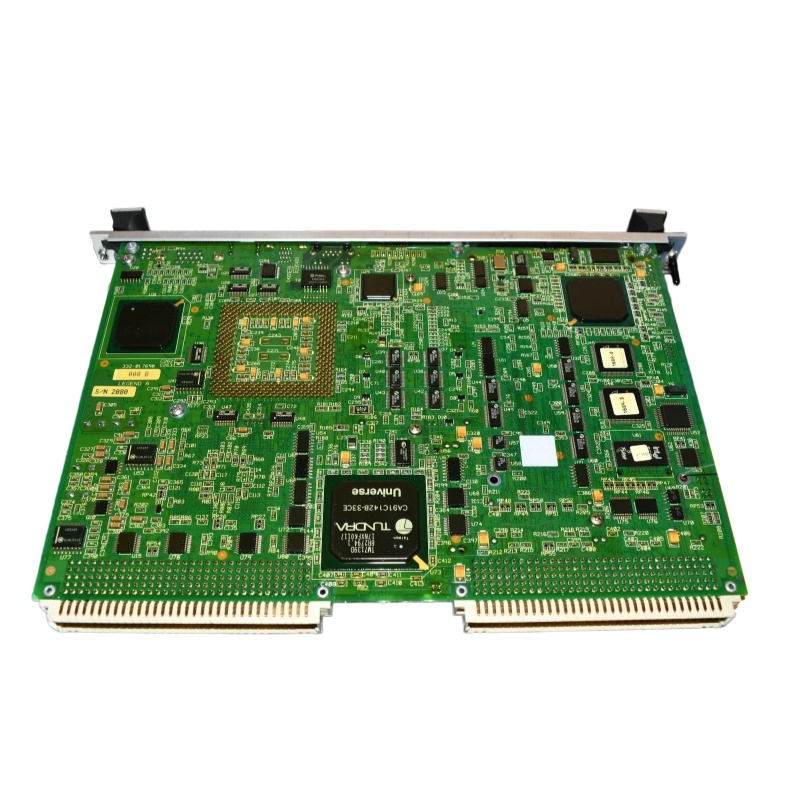

The IS215UCVEH2AC is a VME controller board (control processor board) belonging to the General Electric (GE) Mark VI series control system. As a core control component of the system, it undertakes core tasks including control logic execution, data processing, and signal communication. Adopting a double-sided circuit board design, this model supports both TMR (Triple Modular Redundancy) and Simplex system architectures to meet diverse industrial control configuration requirements.
Key Specifications
|
Parameter Item
|
Typical Value / Description
|
|---|---|
|
Processor
|
300 MHz Intel Celeron
|
|
Flash Memory
|
16 MB or 128 MB Flash
|
|
RAM
|
32 MB DRAM
|
|
Bus Interface
|
VME Bus
|
|
Communication Interface
|
Ethernet, Serial Port (RS232/RS485), GE Genius I/O Network
|
|
Power Input
|
24V DC
|
|
Operating Temperature
|
-10℃ to 60℃ (partial specifications: 0℃ to 60℃)
|
|
Storage Temperature
|
-40℃ to 85℃
|
|
Installation Method
|
Rack mounting (standard VME rack)
|
|
Certifications
|
CE, UL and other mainstream industrial certifications
|
Product Features
High-Performance Processing Capability: Equipped with an Intel Celeron processor and large-capacity memory, the board can efficiently run complex control algorithms and complete high-speed industrial data processing, ensuring stable and efficient system operation.
High Reliability and Redundancy Support: It supports the TMR (Triple Modular Redundancy) architecture, which effectively improves system fault tolerance and operational availability, making it suitable for critical control scenarios that require ultra-high stability.
Rich Integrated Interfaces: Built-in multiple universal and dedicated interfaces including VME bus, Ethernet, serial port and SVGA display interface, realizing convenient connection and data interaction with various I/O modules and upper monitoring systems.
Compact Double-Sided Design: The optimized double-sided board layout enhances component integration density, saves cabinet space, and is perfectly compatible with standard VME rack installation specifications.
Built-In Diagnosis and Status Indication: The front panel is equipped with LED indicator lights to intuitively display system operating status, facilitating rapid fault diagnosis, status monitoring and daily maintenance.
Structure and Composition
As a standard VME bus board, the IS215UCVEH2AC has standardized and modular structural features, with detailed components as follows:

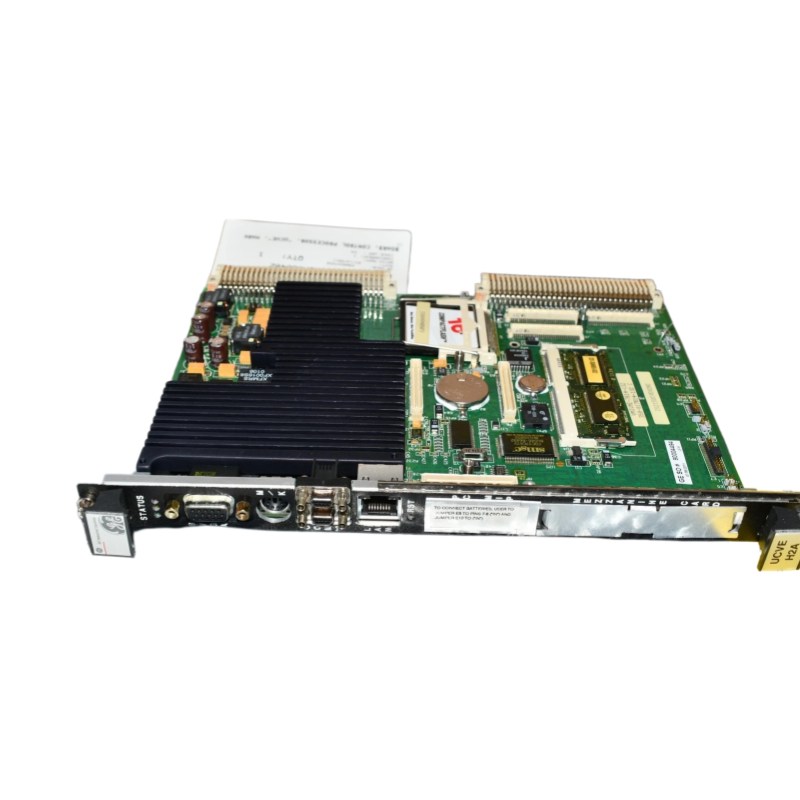

Front Panel: Printed with GE logo and unique circuit board ID. It is equipped with 3 LED indicators for system status, operation and fault feedback, a manual reset button, and reserved openings for mezzanine card installation.
Interface Panel: Provides multiple external connection ports including LAN, SVGA and Ethernet to meet diverse communication and expansion demands.
Fixed Structure: Configured with two fixing screws, which are used to lock and fix the board after it is inserted into the VME rack to ensure installation firmness and anti-vibration performance.
Standard Installation Position: The board is generally installed in the second slot of a standard VME rack, conforming to unified industrial installation standards.
Application Fields
The IS215UCVEH2AC is a core controller for industrial critical control systems, widely used in high-reliability industrial scenarios, with main application fields as follows:
Power Plant Turbine Control: Applied in the Speedtronic Mark VI control system for gas turbines and steam turbines, it realizes precise closed-loop control and safety protection of key parameters such as rotational speed, temperature and pressure of turbine equipment.
Industrial Automation: Serves as the core control unit of industrial automation systems, undertaking core functions such as production line logic control, equipment real-time monitoring, industrial data analysis and human-computer interaction.
Power System Control: Deployed in power plant Distributed Control Systems (DCS) to execute logical operation control and system internal data communication tasks.
Oil, Gas and Process Industries: Adaptable to automatic control of continuous production processes in petrochemical, energy and other process industries, ensuring stable and safe operation of production equipment.
Installation and Maintenance
Installation Guidelines
1. The board adopts standard VME rack mounting mode, and is fixed and locked with the rack through fixing screws on both sides of the front panel to ensure stable installation.
2. The recommended installation position is the second slot of the VME rack. During installation, ensure accurate alignment with the backplane bus to avoid communication abnormalities caused by poor contact.
3. Keep the ambient operating temperature within the range of -10℃ to 60℃ (subject to specific product model), and ensure good cabinet ventilation and heat dissipation to prevent overheating failure.
4. Match with stable 24V DC power supply to ensure continuous and reliable power input for the control board.
Maintenance Recommendations
1. Judge the real-time working status of the module (including normal operation, fault alarm and communication status) through the LED indicator lights on the front panel for quick troubleshooting.
2. The board has a built-in intelligent diagnosis function, supporting online real-time fault detection and early warning, which reduces system maintenance difficulty.
3. Daily maintenance focuses on regular inspection of power supply stability, interface connection firmness, LED status and cabinet ventilation environment to eliminate potential faults in advance.
————————————————————————————————————-
