GE IS420UCSCH2A Controller Module
GE IS420UCSCH2A
1. Overview
The IS420UCSCH2A is a dual-core controller component belonging to General Electric (GE) Mark VIe/Mark VIeS series. As a member of GE’s Speedtronic® turbine control system family, it is deployed for automatic control and safety management of gas turbines and steam turbines. Classified as a Universal Control Server (UCS) module, the device is specifically engineered for GE Mark VIe and Mark VIeS turbine and plant control platforms. Despite the term “Printed Circuit Board (PCB)” in its naming convention, the IS420UCSCH2A is essentially a complete controller assembly rather than a conventional standalone PCB.
2. Technical Specifications
|
Parameter Item
|
Technical Specifications
|
|---|---|
|
Processor
|
AMD GX-216HC, dual-core architecture, 1.6GHz CPU frequency
|
|
Operating Voltage
|
18-36 VDC or 24VDC
|
|
Power Consumption
|
2.5W or 12W (data from different official sources)
|
|
Memory
|
2GB DDR3-1066 SDRAM
|
|
Storage Capacity
|
128GB Solid State Drive (SSD)
|
|
Operating System
|
Compatible with QNX Version 6.5 and 7.1
|
|
Operating Temperature
|
-40°C to +70°C
|
|
Storage Temperature
|
-40°C to +85°C
|
|
Humidity
|
0-95% RH, non-condensing
|
|
Altitude
|
Maximum 1000 meters
|
|
Dimensions
|
Approx. 3.78″ × 1.5″ × 2.68″ (96mm × 38mm × 68mm) or 152mm×121mm×53mm (data from different official sources)
|
|
Weight
|
Approx. 0.5kg or 1327 grams
|
|
I/O Points
|
16 digital inputs + 16 digital outputs
|
|
Communication Ports
|
6 Ethernet ports, IONet interface, 2 USB 2.0 ports, configurable RS-232/RS-485 serial interfaces
|
|
Communication Protocols
|
Supports Modbus TCP, OPC UA, Profinet and other mainstream industrial protocols
|
3. Product Features
Dual-core High-performance Architecture: Equipped with a dual-core CPU, the controller delivers powerful computing capability and redundant support, enabling stable multi-task processing and support for advanced industrial operation logic.
High-speed Synchronous Communication: Adopts advanced IONet interface to achieve high-speed synchronization within 5ms, realizing seamless connection and high-speed network interconnection with other Mark series devices.
Professional Safety Certification: Compliant with IEC 61508 functional safety standards, supporting SIL 2 and SIL 3 safety integrity levels, and certified with Achilles™ cybersecurity certification.
Flexible Redundancy Configuration: Supports standalone, dual-unit and Triple Modular Redundancy (TMR) configurations. Up to three components can be installed adjacently to build a high-reliability redundant control system.
Rugged Protective Design: The internal circuit board is coated with conformal coating for environmental protection; the metal housing meets IP30 protection grade, ensuring excellent durability in harsh industrial environments.
Natural Convection Cooling: Fan-free cooling design realizes automatic air circulation and heat dissipation through three grille openings on the side panel, reducing failure points and maintenance costs.
Fault Tolerance Capability: Adopts Software Implemented Fault Tolerance (SIFT) technology to vote and process input signals via software algorithms, effectively improving overall system operational reliability.
Dedicated Alarm Output: Built-in relay alarm output function, which can monitor port faults, power supply faults and ring network faults, with a contact capacity of DC 48V/1A.
LED Status Indication: The front panel is equipped with multiple LED indicators to intuitively display real-time system operating status and fault information.
4. Structure and Composition
4.1 Mechanical Structure

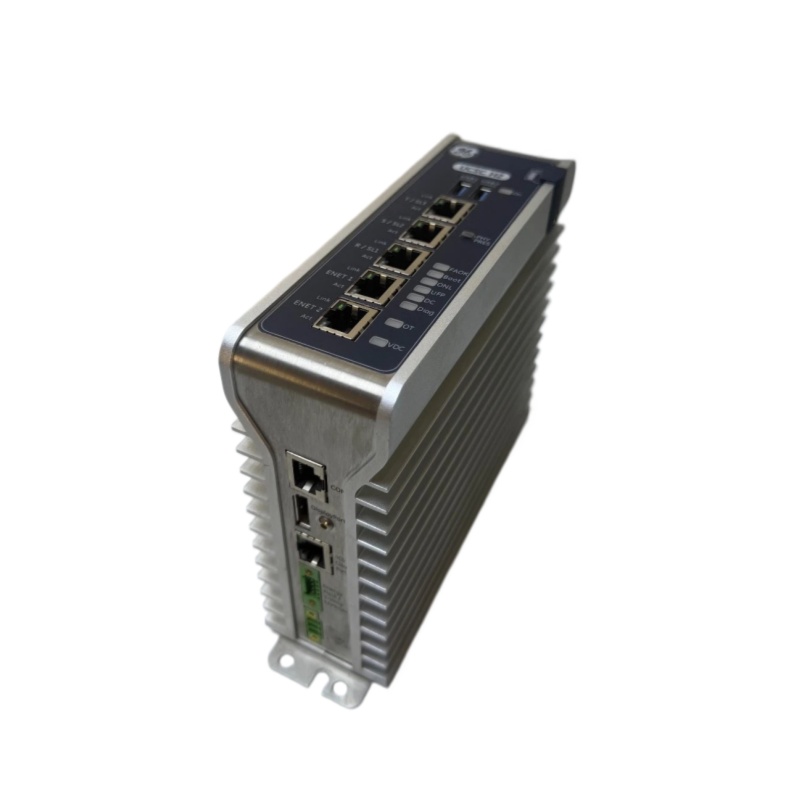

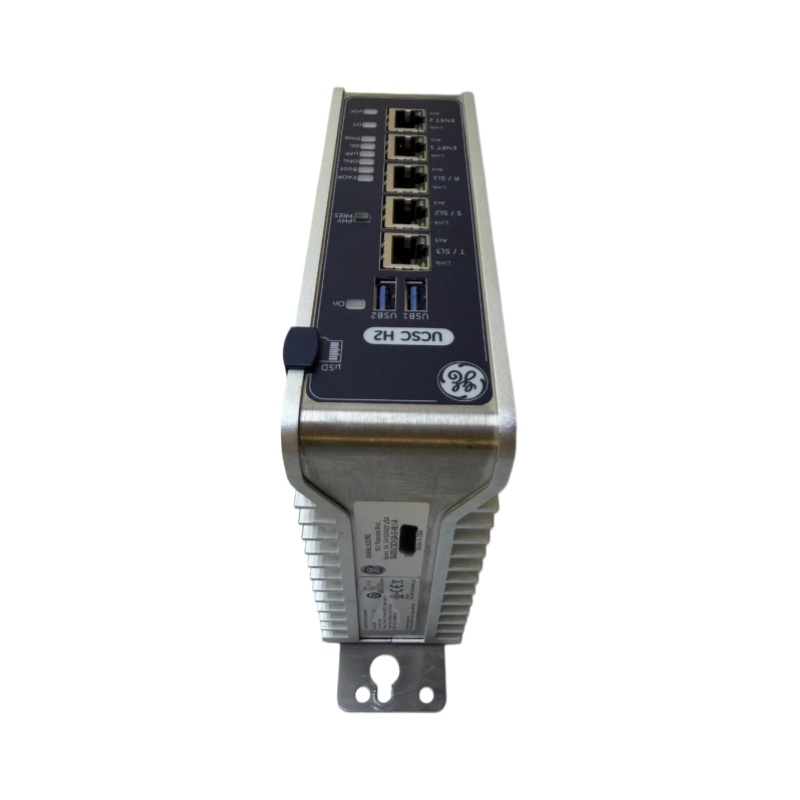

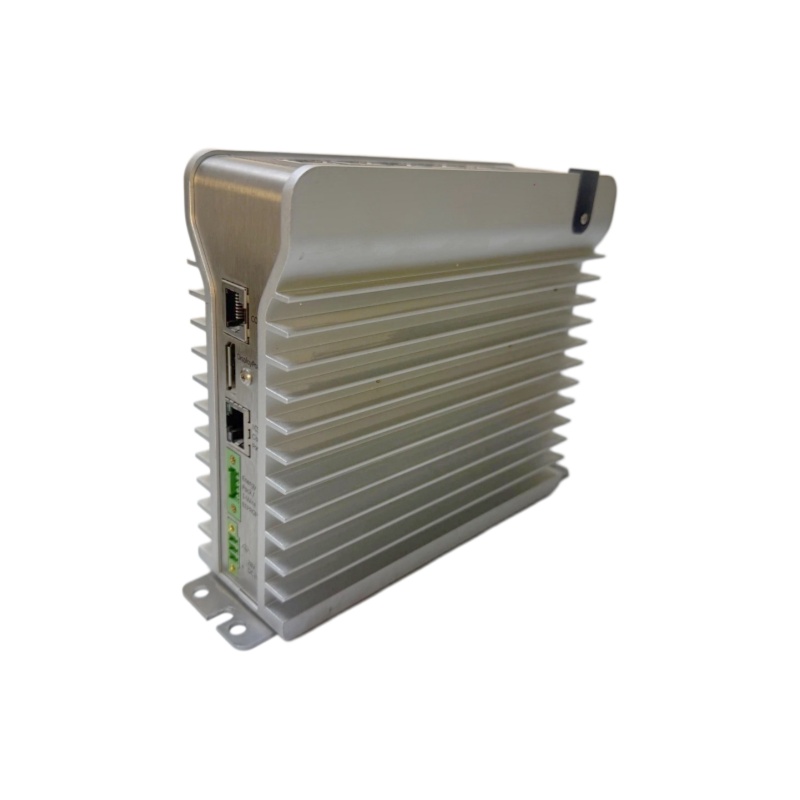

The device adopts an independent box-type component design. The front panel is integrated with six female jack connectors, USB ports and multiple LED status indicators. Two mounting screws are arranged on the rear edge for fixed installation. Three grille openings on the side panels facilitate natural air circulation and efficient heat dissipation.
4.2 Electronic Components
The core control unit adopts AMD G-Series AMD GX-216HC dual-core microprocessor. The storage system consists of a 128GB solid-state drive, flash memory and RAM. It supports external storage expansion via SD card or USB storage devices. The power module adapts to 24VDC standard input with a wide voltage range of 18-36VDC. It is equipped with a non-replaceable 4A 125VDC rated fuse with a breaking capacity of 26A²s.
4.3 System Configuration Capability
The IS420UCSCH2A can be combined with other IS420 series controllers to form a complete control system. It supports dedicated boards for direct communication with specific sensors and actuators. The VCMI board can obtain input signals from the backplane of control modules and other peripheral modules through the IONet bus.
5. Application Fields
5.1 Main Application Scenarios
- Gas Turbine Control: Automatic operation control and full-cycle safety management of industrial gas turbines
- Steam Turbine Control: Speed regulation, operational protection and real-time monitoring of steam turbine systems
- Industrial Power Plants: Widely applied in thermal power generation facilities
- Wind Power Generation: Core control support for wind turbine generator systems
- Hydropower Generation: Suitable for automatic control and monitoring of hydropower plants
- Oil and Gas Industry: Process control and real-time monitoring in oil and gas production operations
- Nuclear Facilities: Supporting safety control and operational monitoring systems for nuclear power plants
5.2 Specific Functional Applications
- Overspeed Protection: Rapid response and protection actions are triggered immediately once turbine overspeed is detected to avoid equipment damage
- Real-time Monitoring: Continuous real-time tracking and data collection of equipment operating status and operational parameters
- Load Sudden Change Protection: When an abrupt load drop occurs, the system quickly closes control valves and stop valves to prevent turbine runaway and mechanical damage
————————————————————————————————————-
