GE VMIVME-7807RC

1. Product Overview

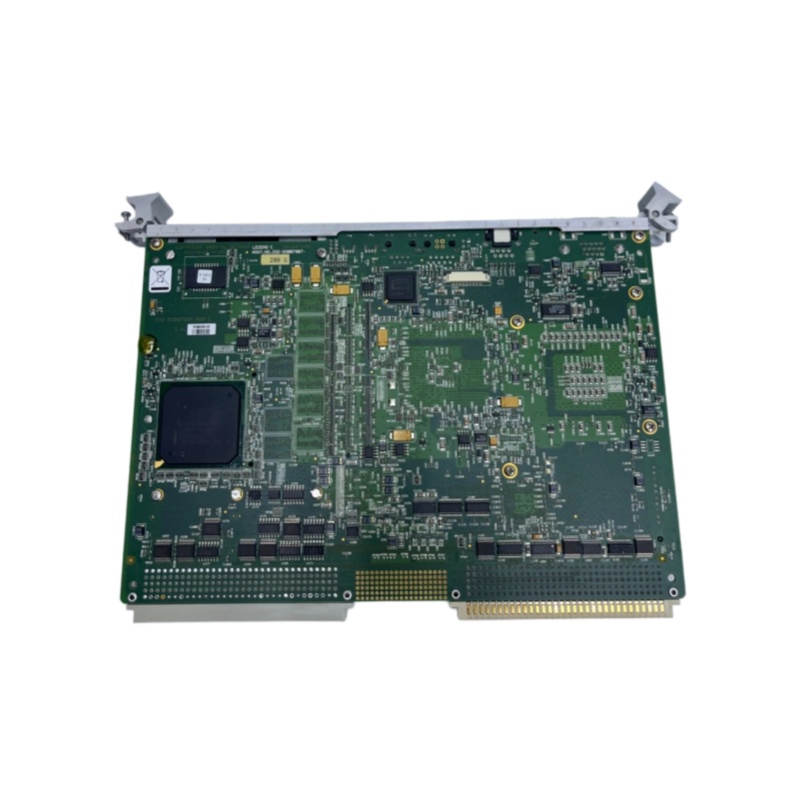

The GE VMIVME-7807RC is a single-board computer (SBC) compliant with the VME bus standard, belonging to the GE Fanuc/GE Intelligent Platforms (formerly VMIC) VMIVME-7807 series. As a Rugged Conformance (RC) variant of the standard VMIVME-7807 model, it is equipped with an Intel Pentium M processor and Intel 855GME chipset, and is specifically designed for 6U standard VMEbus chassis.

As an industrial embedded single-board computer, the VMIVME-7807RC delivers reliable computing performance and flexible configuration options. It is widely deployed in harsh industrial scenarios, meeting high-reliability and high-performance data processing requirements for industrial applications.

2. Technical Specifications

2.1 Processor & Memory

Parameter	Specification
Processor	Intel Pentium M, optional 1.1 GHz, 1.4 GHz or 1.8 GHz
L2 Cache	Up to 2 MB L2 cache
Memory Type	DDR Synchronous DRAM (SDRAM)
Memory Capacity	Maximum 1.5 GB (via one 200-pin DDR SDRAM SODIMM slot + optional 512 MB onboard soldered memory)
Storage	Up to 2 GB bootable CompactFlash

2.2 Bus & Interfaces

Parameter	Specification
Bus Standard	VME64 / VME64x
Ethernet	Dual Gigabit Ethernet Ports
Serial Ports	4 Serial I/O Ports
USB Interface	2 USB 2.0 Ports
Expansion Slot	1 PCI-X 66 MHz PMC Slot
Other Interfaces	SATA interface, VGA interface and other functional ports

2.3 Physical & Environmental Specifications

Parameter	Specification
Dimensions	6U VME Eurocard (approx. 160 mm × 230 mm × 30 mm / 6.3 in × 9.1 in × 1.2 in)
Weight	Approx. 0.5 kg (1.1 lbs)
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +70°C or -20°C to +85°C (varies by configuration)
Humidity	5% to 95% (non-condensing)
Cooling Method	Passive cooling (fanless)
Ingress Protection Rating	IP20 or IP65 (subject to product sourcing and configuration)

2.4 Electrical Specifications

Parameter	Specification
Typical Power Consumption	25 W
Maximum Power Consumption	35 W
Power Supply Voltage	220V (partial configuration)

3. Product Features

3.1 High-Performance Computing Capability

Powered by Intel Pentium M processor (up to 1.8 GHz) and Intel 855GME chipset, the board delivers robust computing power, which fully supports complex control logic operation and high-intensity data processing tasks for industrial embedded systems.

3.2 High Reliability & Ruggedized Design

Adopts industrial-grade electronic components to ensure stable and continuous operation in extreme and harsh working environments. The fanless passive cooling structure eliminates fan failure risks and greatly improves long-term operational reliability. The ruggedized mechanical structure makes it applicable to military scenarios and severe industrial working conditions.

3.3 Rich Interfaces & Strong Scalability

Equipped with dual Gigabit Ethernet ports to support high-speed and stable network data transmission. Four serial ports are compatible with multiple mainstream industrial communication protocols. The reserved PCI-X 66 MHz PMC expansion slot provides flexible hardware expansion capabilities to meet customized functional upgrade demands.

3.4 Excellent Compatibility

Fully compliant with VME bus standards, enabling seamless integration with various VME bus modules and equipment. It supports the VITA 31.1 industry standard and is compatible with multiple mainstream operating systems, including Windows XP, Windows 2000, VxWorks, QNX, and Linux, adapting to diverse industrial software development and application environments.

3.5 RoHS Compliance

This product is a RoHS-compliant version of the VMIVME-7807 series, fully complying with the EU RoHS directive. It effectively reduces the use of harmful and toxic substances, meeting international environmental protection and green industrial manufacturing standards.

4. Structure & Composition

4.1 Hardware Architecture

The VMIVME-7807RC adopts a mature and classic embedded single-board computer architecture, with its core hardware components composed as follows:

Processor Module: Equipped with Intel Pentium M CPU and Intel 855GME chipset, integrating CPU, memory controller, graphics controller and core control units.

Memory System: Includes onboard DDR SDRAM, a 200-pin DDR SDRAM SODIMM expansion slot, and optional 512 MB onboard soldered memory for flexible capacity configuration.

Storage System: Features a bootable CompactFlash slot and optional IDE hard disk interface, providing diversified industrial storage solutions.

I/O Interface Module: Covers dual Gigabit Ethernet ports, 4 RS-232 serial ports, USB 2.0 ports and a dedicated PCI-X PMC expansion slot, meeting multi-scenario I/O interaction and expansion needs.

Bus Interface: Built-in VME64x bus interface, realizing high-efficiency data communication and signal interaction with other VME bus devices and modules.

4.2 Connection Mode

The P2 connector is used for standard VME bus signal connection and data transmission. All external functional interfaces such as Ethernet, serial ports and USB are integrated with onboard dedicated connectors for convenient wiring and stable connection. The board supports matching VMIACC-0586 and VMIACC-0590 conversion modules to expand connection adaptability and scene compatibility.

————————————————————————————————————-
