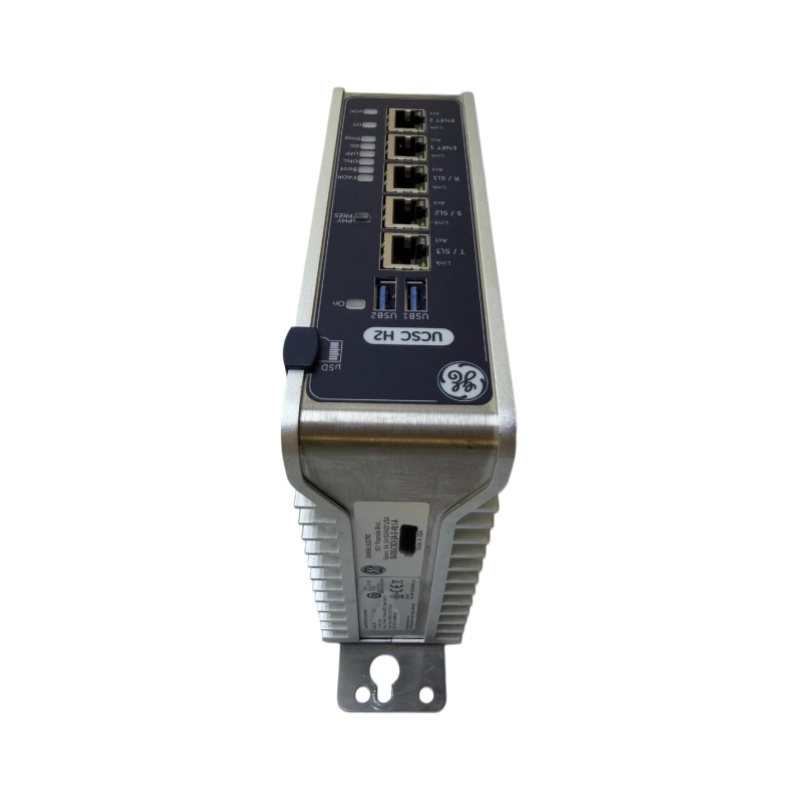

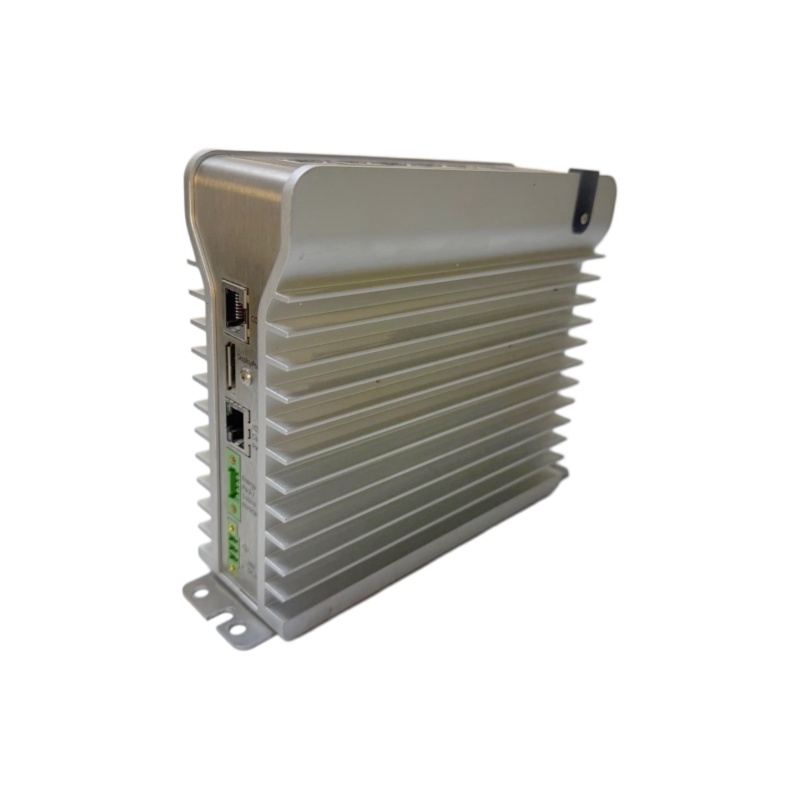

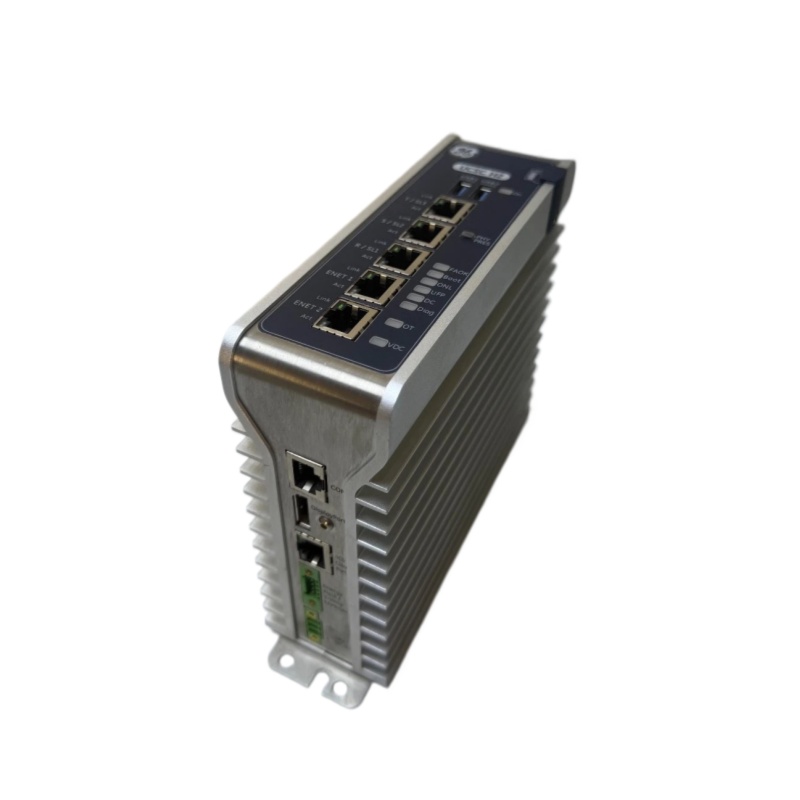

GE IS420UCSCH2A-E-V0.1-ACPU Control Module
GE IS420UCSCH2A-E-V0.1-ACPU
1. Product Overview
The GE IS420UCSCH2A-E-V0.1-A is a dual-core CPU control module integrated into the GE Speedtronic Mark VIe steam turbine control system. As a high-performance processing and control unit of the Mark VIe distributed control system, it is mainly responsible for executing turbine control logic, managing I/O communication, and coordinating system protection functions, delivering high reliability and deterministic performance. Serving as the third-generation digital turbine control system developed by GE, it inherits the classic Triple Modular Redundancy (TMR) technology for steam turbine control.
2. Technical Specifications
|
Parameter Item
|
Specification
|
|---|---|
|
Model
|
IS420UCSCH2A-E-V0.1-A
|
|
Type
|
Mark VIe Dual-core Controller / Universal Control Server (UCS) Module
|
|
Processor
|
Dual-core Central Processing Unit (CPU) with PMAC processor support
|
|
Operating Frequency
|
1.6GHz (consistent with UCSCH1B models in the same series)
|
|
Power Requirement
|
24 VDC
|
|
Power Consumption
|
Approx. 2.5 W
|
|
Operating Temperature
|
-40°C to +70°C
|
|
Humidity
|
0-95% RH, Non-condensing
|
|
Physical Dimensions
|
3.78″ × 1.5″ × 2.68″
|
|
Weight
|
Approx. 0.5 kg
|
|
Communication Protocol
|
IONet (GE high-speed real-time Ethernet protocol, refresh cycle ≤5ms)
|
|
I/O Capacity
|
16 digital inputs and 16 digital outputs (referential to similar Mark VIe platform models)
|
3. Product Features
- Dual-core Architecture: Equipped with dual-core processing capability and redundant configuration, it delivers superior computing power and operational reliability, ensuring stable and smooth operation of steam turbines.
- High-speed Communication: Supports the IONet protocol to achieve high-speed synchronous data refresh within 5ms, fully meeting the real-time monitoring and control requirements of gas and steam turbines.
- High Reliability: Specially designed for mission-critical turbine operation scenarios, featuring deterministic operating performance and built-in fault tolerance.
- Strong Environmental Adaptability: Capable of stable operation in harsh industrial environments with a wide operating temperature range of -40°C to +70°C.
- Flexible Networking: Compatible with simplex, duplex and triple redundant system configuration modes to adapt to diverse system deployment needs.
- Self-diagnosis Function: Integrated detection modules for memory, hardware and Ethernet ports to realize real-time self-inspection of equipment status.
- Excellent Scalability: Fully compatible with other modules in the Mark VIe series, supporting system function expansion through distributed I/O modules.
4. Structure and Composition
|
Component
|
Description
|
|---|---|
|
Controller Core
|
Mark VIe Universal Control Server (UCS) module
|
|
Hardware Platform
|
IS200 series circuit board, compatible with IS220 series board cards for combined application
|
|
Redundant Architecture
|
Supports Triple Modular Redundancy (TMR) architecture to effectively improve overall system availability and stability
|
|
Interface Configuration
|
Equipped with standard Ethernet and IONet communication interfaces
|
|
Status Indication
|
Built-in LED status indicator lights for intuitive on-site operation monitoring
|
|
Installation Method
|
DIN rail mounting
|
5. Application Fields
|
Application Sector
|
Specific Applications
|
|---|---|
|
Gas Turbine Control
|
Gas turbine operation control, overspeed protection and real-time operational monitoring
|
|
Steam Turbine Control
|
Full-process control of steam turbine systems
|
|
Industrial Power Generation
|
Control of power plants and combined cycle generator units
|
|
Multi-industry Application
|
Thermal power plants, wind farms, hydropower stations, oil and gas industries, nuclear power facilities and other industrial scenarios
|
|
System Integration
|
Integrated docking and collaborative application with Distributed Control System (DCS) and other industrial control systems
|
|
System Upgrade & Renovation
|
Modernization and technical renovation projects for legacy Speedtronic control systems
|
6. Installation and Maintenance
6.1 Installation Guidelines
- Installation Position: Adopt standard DIN rail mounting to ensure firm and stable fixation of the module.
- Power Connection: Powered by 24VDC direct current, verify power supply voltage stability before power-on operation.
- Communication Wiring: Complete wiring and connection of Ethernet and IONet communication cables in strict accordance with specifications.
- Environmental Requirements: The installation environment shall maintain good ventilation and heat dissipation, with humidity kept within a non-condensing range.
- Model Verification: Confirm the module model matches the supporting system before installation to avoid version mismatch and mixed use.
6.2 Maintenance Requirements
- Regular Inspection: Monitor the real-time operating status of the system through the LED status indicators on the module.
- Fault Diagnosis: Utilize the built-in self-diagnosis function to detect and troubleshoot faults of internal memory, hardware circuits and Ethernet ports.
- Spare Parts Management: Reserve sufficient spare modules as required to minimize equipment downtime in case of failure replacement.
————————————————————————————————————-
