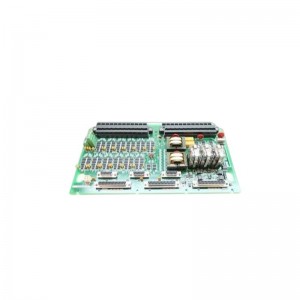

GE S70301-NA Network Interface Module
GE S70301-NA
GE S70301-NA is a dedicated network interface module developed by General Electric (GE), which is part of its well-known Mark VI series gas turbine and steam turbine control systems. This module serves as a critical communication hub in the control system, specifically designed to establish a stable and reliable high-speed data connection between Mark VI controllers (such as UR6H and UR6T control cabinets) and upper-level networks. Its core function is to achieve seamless integration of control layer data with plant-level monitoring systems (e.g., GE’s HMI/SCADA solutions) or Distributed Control Systems (DCS), ensuring real-time and accurate transmission of operational data, alarm information, and control commands.
As a key component in the Mark VI integrated architecture, the GE S70301-NA module effectively manages the integrity and security of network communications by processing the TCP/IP protocol stack. It supports standard Ethernet communication, enabling operators and engineers to remotely access controllers for real-time monitoring, parameter configuration, program upload/download, and advanced diagnostics. The core value of this module lies in providing high-performance, industrial-grade network connectivity for critical power assets, significantly enhancing the efficiency and reliability of power plant automation management. It acts as an “information highway” to ensure the safe and efficient operation of large rotating equipment such as gas turbines.
Product Specifications
- Product Model: S70301-NA
- Manufacturer: GE Power (General Electric)
- Product Type: Network Interface Module (NIM - Network Interface Module)
- Network Interface: 10/100Base-T Ethernet (RJ45)
- Communication Protocols: TCP/IP, SRTP (Secure Real-Time Transport Protocol), FTP, ICMP
- Supported Services: VPN (Virtual Plant Network) function for secure remote access
- Backplane Connection: Communicates with the controller via the Mark VI VME backplane
- LED Status Indicators: Power, network activity, link status, fault
- Operating Temperature: 0°C to 60°C (operating environment)
- Storage Temperature: -40°C to 85°C
- Humidity: 5% to 95% (non-condensing)
- Certifications: Complies with standards such as cULus, CE, and ATEX (for hazardous environments)
Structure and Composition
The GE S70301-NA module adopts a standard VME board structure design, featuring a robust metal housing and front panel that can withstand vibration and shock in industrial environments. The front panel is equipped with a standard RJ45 Ethernet port for connecting to external networks, as well as a set of multi-color LED indicators. These indicators provide real-time display of the module’s power status, network link status, data activity, and any potential fault conditions, offering intuitive diagnostic information for on-site technicians.
Internally, the module integrates a high-performance processor, dedicated communication ASIC chips, and memory units, which work together to process complex network protocols and data packet routing. Its gold-plated edge connector forms a tight coupling with the VME backplane of the Mark VI rack, enabling high-speed data exchange with the main controller’s CPU module via the backplane. The module’s firmware is specially optimized to efficiently manage network traffic, ensuring the real-time performance and determinism of control data. Additionally, its built-in security features (such as VPN support) provide an extra layer of protection for the control system at the hardware level, preventing unauthorized access.
Application Fields
The GE S70301-NA module is almost exclusively used in the energy and power sector where GE Mark VI control systems are deployed. Its primary application scenario is large-scale gas turbine and steam turbine power plants, where it serves as the core communication bridge between control cabinets and the plant’s main control room. It enables centralized monitoring and advanced management of the entire unit’s start-up, operation, and shutdown processes. In combined-cycle power plants, it ensures coordinated control and data sharing among gas turbines, steam turbines, and heat recovery steam generator (HRSG) systems.
Furthermore, this module is widely applied in the mechanical drive field of the oil and gas industry—for example, in the control of gas turbines that drive compressors and pump sets. In these critical applications, GE S70301-NA is responsible for reliably transmitting the unit’s real-time performance data (such as speed, temperature, pressure, and vibration) and alarm events to the central dispatching system. This allows engineers to make data-driven decisions, optimize operational efficiency, prevent unplanned downtime, and ensure the safe and stable operation of the entire production facility.
Installation and Maintenance
Pre-Installation Preparation
Installation or replacement of the GE S70301-NA module must be performed by trained professionals. Before starting, all power supplies to the control cabinet must be disconnected, and strict Lockout/Tagout (LOTO) procedures must be implemented. Confirm that there is a correct empty slot in the Mark VI rack, and check ESD (Electrostatic Discharge) protection measures to prevent electrostatic damage to sensitive electronic components. Prepare the required configuration files and ToolboxST software for parameter setting and function verification after module installation.
Maintenance Recommendations
Conduct regular visual inspections of the GE S70301-NA module to ensure all connecting cables (network cables and backplane cables) are securely fastened without looseness, and that the front-panel indicators show normal status (typically, the power indicator is a steady green, and the network activity indicator flashes). Use the diagnostic function of ToolboxST software to regularly check the module’s operating status and log information, and review for any communication errors or warning records. Keep the network ports clean to avoid dust accumulation. During scheduled system shutdowns, attempt to restart the module or re-seat it to clear any potential software lockup conditions.
————————————————————————————————————-
