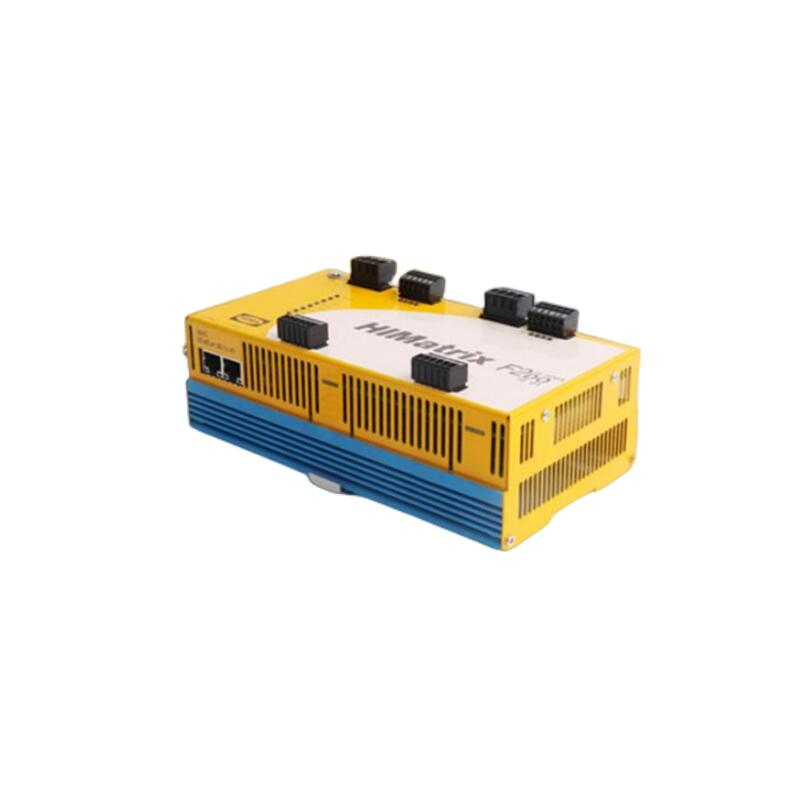

HIMA F2DO801 Digital Output Module
HIMA F2DO801
HIMA F2DO801 is a high-reliability safety digital output module launched by HIMA, and it is a key component of the TÜV-certified HIMax series safety system. Specifically designed for critical safety applications requiring the highest Safety Integrity Level (SIL 3), this module plays a pivotal role in executing final safety commands in Emergency Shutdown (ESD) systems, Fire and Gas Detection (F&G) systems, and process shutdown systems. The F2DO801 module converts logical signals from safety controllers into reliable field-level switching commands, directly driving critical safety equipment such as safety shutdown valves, alarms, and fire suppression systems. This ensures that predetermined safety actions are promptly triggered when hazardous conditions are detected.
As an end execution unit of the Safety Instrumented System (SIS), HIMA F2DO801 adopts an advanced fail-safe design concept. It integrates redundant output circuits and comprehensive diagnostic functions to real-time monitor the status of output channels, detect various anomalies including short circuits, open circuits, and load faults, and report such issues promptly via LED indicators and the system diagnostic interface. The module supports 8 independent safety digital outputs, with each channel featuring electrical isolation and overload protection—ensuring that a fault in one channel will not affect the normal operation of others. Its robust industrial-grade design and wide operating temperature range enable it to perform safety protection tasks in harsh environments, from oil platforms to chemical plants.
Product Parameters
- Product Model: F2DO801
- Manufacturer: HIMA
- Product Type: Safety Digital Output Module
- Safety Level: SIL 3 (IEC 61508)
- Number of Channels: 8 Channels
- Output Type: Transistor Output (Solid-State Relay)
- Rated Voltage: 24 VDC
- Maximum Load Current: 0.5A per Channel
- Leakage Current: < 0.1 mA
- Response Time: < 1 ms
- Isolation Voltage: 500V between Channels, 1500V between Channels and Backplane
- Diagnostic Functions: Short-Circuit Detection, Open-Circuit Detection, Load Monitoring
- LED Indication: Green LED Status Indicator per Channel
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- Protection Class: IP20
- Certifications: TÜV, ATEX, IECEx, cULus
Structure and Composition
HIMA F2DO801 features a compact modular design, complying with HIMA’s standard module dimensions and installation methods. The module housing is made of high-strength engineering plastic, offering excellent flame retardancy and impact resistance. The front end is equipped with a transparent protective cover, and the interior houses 32-pin spring-clamp terminals that support direct wire connection without additional wiring tools. Each channel is fitted with an independent green LED indicator for intuitive display of output status.
The module’s interior adopts a highly integrated safety design architecture, with core components including an output drive unit, diagnostic monitoring circuit, communication interface, and power management section. The output drive unit uses high-performance MOSFET power transistors to provide fast switching response and reliable load-driving capability. The diagnostic monitoring circuit real-time detects the voltage and current of each output channel, enabling accurate identification of short circuits, open circuits, and overload faults. The communication interface exchanges safety data with the main controller via the backplane, employing safety mechanisms such as CRC verification and timeout detection to ensure communication integrity. The power management section supplies stable operating voltage to internal circuits and includes reverse polarity protection and overvoltage protection functions.
Key Features and Advantages
- Superior Safety and Reliability: F2DO801 holds TÜV SIL 3 certification and adopts a fail-safe design, ensuring it enters a predefined safe state when any anomaly is detected. Its output circuits are equipped with comprehensive diagnostic functions to real-time monitor load status and identify potential faults promptly.
- Rapid Response Capability: A response time of less than 1 ms ensures that safety commands are executed quickly, minimizing the duration of hazardous conditions in emergencies. Its fast switching characteristics make it particularly suitable for safety applications requiring high-speed response.
- Powerful Driving Capacity: With an output current of 0.5A per channel, the module can directly drive most safety actuators, reducing the need for intermediate relays and enhancing system reliability. Low leakage current prevents false triggering of loads when the module is in the off state.
- Easy Maintenance and Diagnostics: Independent LED status indicators for each channel enable quick and accurate fault localization. Comprehensive diagnostic information is transmitted to the main controller via the backplane, supporting preventive maintenance and fault prediction to significantly reduce system downtime.
Application Fields
HIMA F2DO801 is specifically designed for process industries with extremely high safety requirements. In the oil and gas industry, it is used in emergency shutdown systems of offshore drilling platforms and onshore processing plants to control the activation of safety valves and emergency ventilation devices. In the chemical industry, it drives actuators in emergency cooling systems for reactors, toxic gas leak handling systems, and fire/explosion protection systems.
In the oil and gas transportation sector, it controls pipeline block valves and emergency shutdown of pump stations to ensure the safety of pipeline transportation. In the power industry, it is applied in boiler protection systems and turbine emergency trip devices. Additionally, in process industries such as pharmaceuticals, papermaking, and metallurgy, F2DO801 undertakes critical safety execution tasks, serving as an important safety barrier to protect personnel, equipment, and the environment.
Installation and Maintenance
Pre-Installation Preparation
Before installing HIMA F2DO801, confirm that the system rack has sufficient empty slots and that the backplane address is set correctly. Prepare appropriate wiring tools and cables (recommended wire diameter: 0.5-2.5mm²). Ensure the working environment meets anti-static requirements, and inspect the module for physical damage before installation.
Maintenance Recommendations
- Regularly check the tightness of terminal connections to prevent loose connections caused by vibration.
- Monitor the module’s operating status via LED indicators: green indicates normal output, while an unlit LED indicates no output or a fault.
- Conduct regular output tests to verify the functional integrity of each channel.
- Maintain good ventilation for the module to dissipate heat and clean accumulated dust regularly.
- When diagnostic indicators signal a fault, use dedicated diagnostic tools for detailed fault analysis promptly. If necessary, contact professional technicians for repair or replacement.
————————————————————————————————————-
