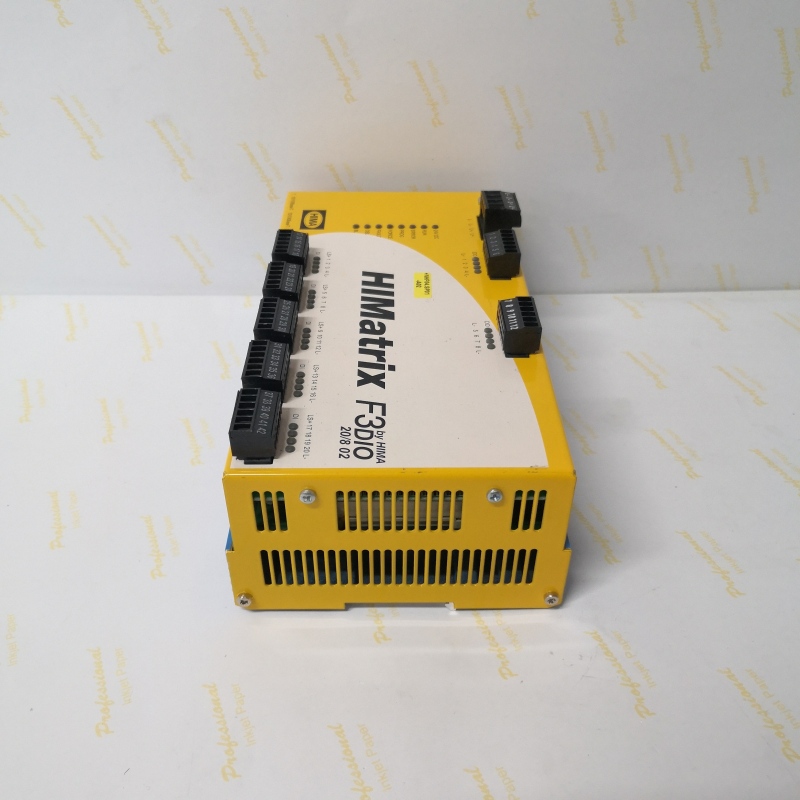

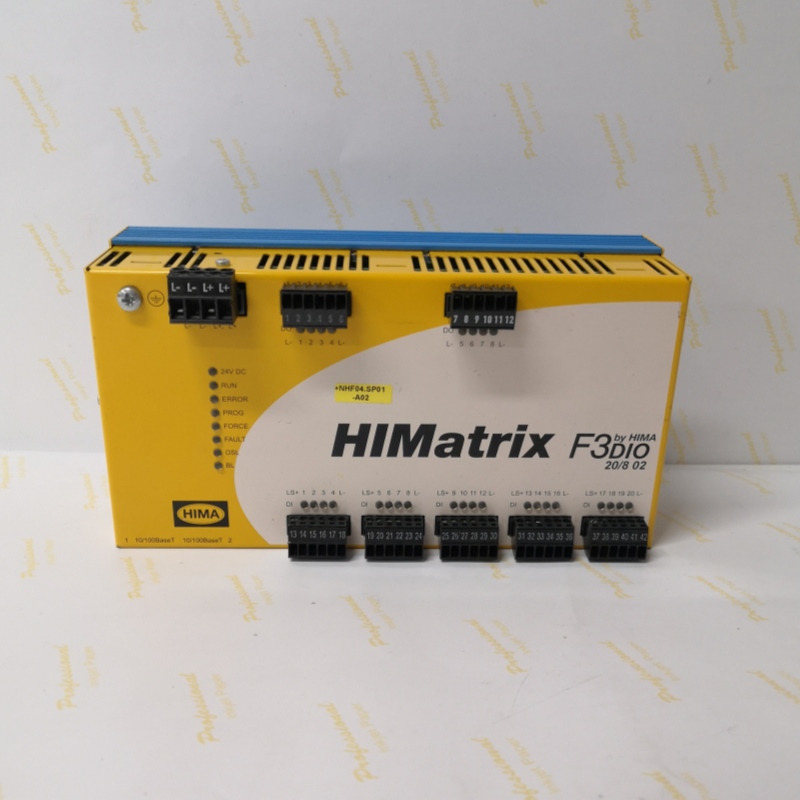

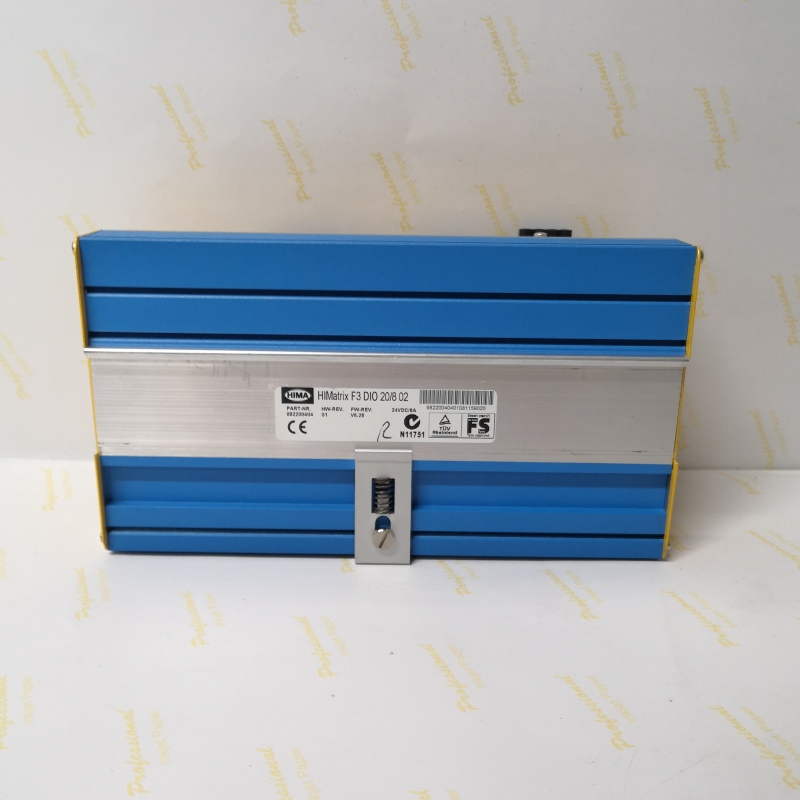

HIMA F3DIO20/802 Input/Output Module
HIMA F3DIO20/802
1. Overview
HIMA F3DIO20/802 is a high-performance digital input/output module, featuring abundant input channels and diverse output channels. It is suitable for application scenarios with limited space. Adopting a compact design, this module boasts high reliability and safety, making it applicable in the fields of industrial automation and safety control.
2. Parameters
- Input Current: 5mA
- Output Current: 500mA
- Operating Temperature: -40℃ to +70℃
- Input Voltage: 24VDC
- Number of Channels: 20 digital inputs / 8 digital outputs
- Voltage Range: DC 24V
- Protection Class: IP20
- Safety Integrity Level: SIL 3 (IEC 61508)
- MTBF: >150 years
- Dimensions: 86 x 246 x 122 mm (W x H x D)
- Weight: Approximately 1.7 kg
- Interface Type: F3 Interface
- Power Supply: DC 24V
3. Product Features
- High Reliability: The module is equipped with overload, overvoltage, and short-circuit protection functions, which ensure stable operation of the equipment and extend its service life.
- High Safety: It complies with the SIL 3 safety level, making it suitable for safety-critical applications.
- Redundant Design: It adopts redundant components and fault detection mechanisms to ensure the system maintains integrity in case of faults.
- Hot-Swappable: The module supports hot-swapping, facilitating maintenance and repair.
- Diagnostic Function: It provides diagnostic functions, which are convenient for fault detection and quick troubleshooting.
4. Structure and Composition
HIMA F3DIO20/802 adopts a compact metal housing design, featuring high cost-effectiveness and a compact structure, thus being applicable in the field of industrial automation. The module is connected to HIMax or HIMatrix controllers via SafeEthernet to expand the I/O level.
5. Application Fields
HIMA F3DIO20/802 is widely used in fields such as industrial automation, robot control, power systems, intelligent buildings, and intelligent transportation. This module can be applied to critical applications including safety control, process monitoring, and safety protection.
6. Installation and Maintenance
HIMA F3DIO20/802 supports module hot-swapping, which is convenient for maintenance and repair. The module is equipped with comprehensive diagnostic functions, facilitating fault detection and quick troubleshooting. During installation, relevant safety specifications and operation guidelines must be followed to ensure the safe operation of the equipment.
————————————————————————————————————-
