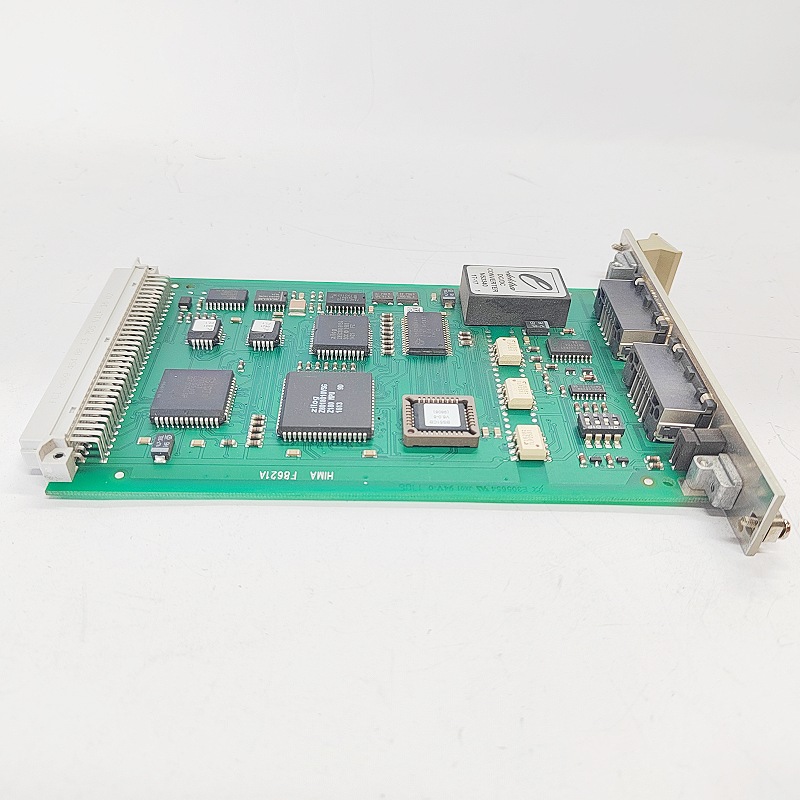

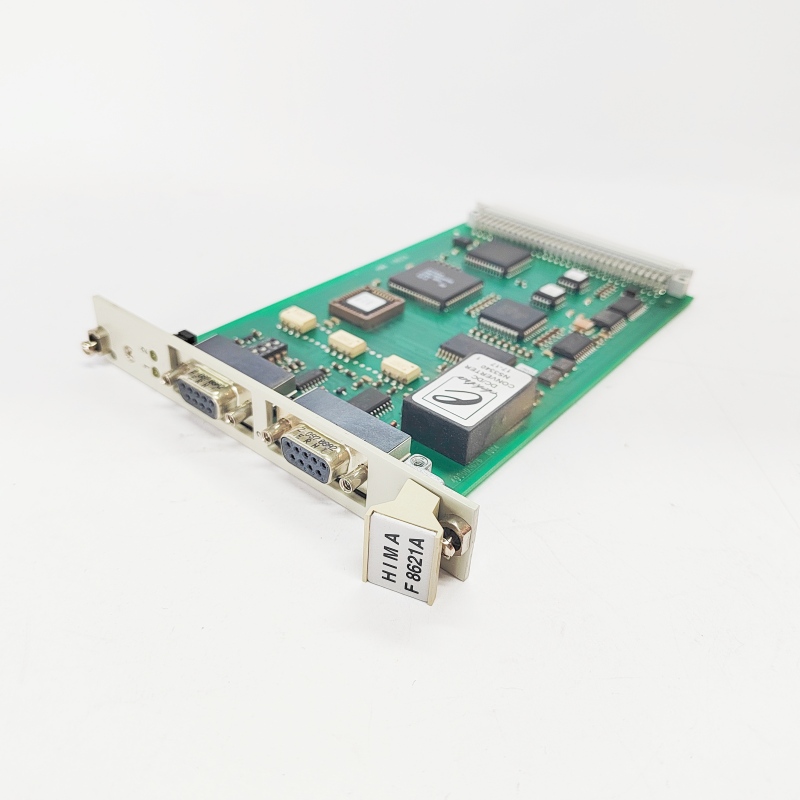

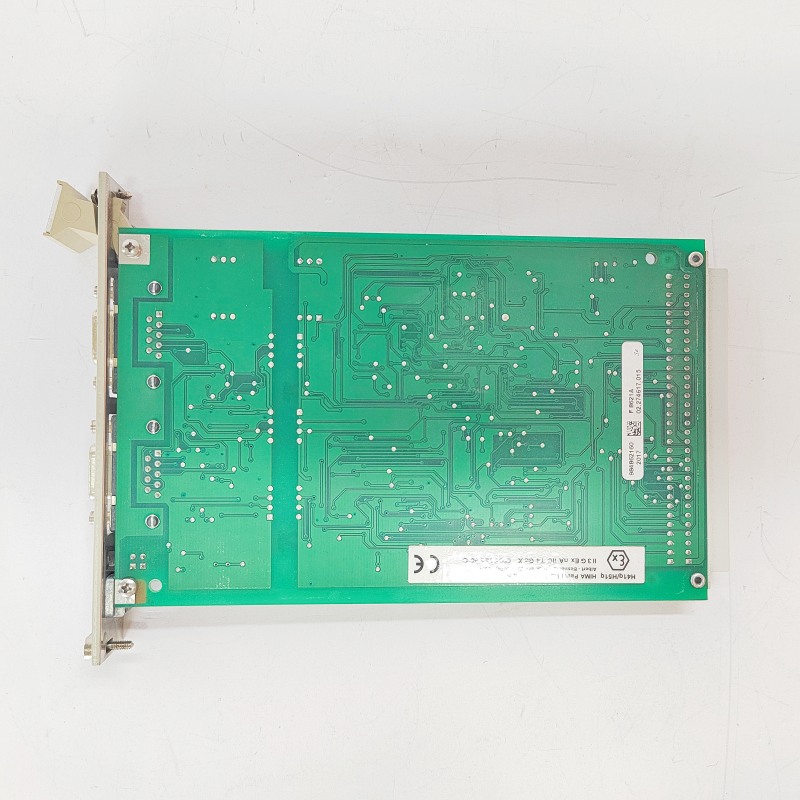

HIMA F8621A 984862160

HIMA F8621A is a safety automation module in the HIMA F series, mainly used for safety interlocking in industrial processes, emergency shutdown (ESD), and protection of critical equipment. This module complies with the safety integrity level (SIL) requirements of IEC 61508/IEC 61511, features high reliability and redundant design, and is compatible with a variety of industrial communication protocols to achieve seamless integration with upper-level systems.

1. Key Technical Parameters

• Model: F8621A 984862160
• Product Category: Safety Control/Automation CPU Module
• Compliant Standards: IEC 61508, IEC 61511 (SIL 1-3)
• Input/Output: I/O (digital/analog) channels can be configured according to on-site requirements, supporting expansion modules
• Communication Interfaces: PROFIBUS, PROFINET, Ethernet/IP, Modbus-TCP, etc.
• Power Supply: 24 V DC (optional redundant power supply)
• Operating Temperature: –25 °C ~ +55 °C (industrial environment)
• Protection Level: IP20 (DIN-rail mounting)
• Certifications: CE, UL, CSA (depending on the region)

2. Product Features

• Safety and Reliability: Complies with SIL standards, with self-test, fault detection, and safety redundancy functions.
• Modular Design: Can flexibly combine sub-modules such as I/O, communication, and redundant power supply to meet the needs of systems of different scales.
• Multi-Protocol Compatibility: Built-in multiple industrial network interfaces, facilitating integration with upper-level systems such as PLC, DCS, and SCADA.
• Easy Maintenance: The modular structure enables quick replacement and upgrade of components; built-in status monitoring and diagnostic information support remote maintenance.
• Compliance with Industrial Standards: Certified by IEC, CE, UL, etc., suitable for high-risk industries such as petroleum, chemical, and electric power.

3. Structure and Composition

• CPU Core Board: Responsible for safety logic operations, task scheduling, and communication management.
• I/O Expansion Board (Optional): Provides digital input/output, analog channels, pulse counting, etc.
• Communication Board (Optional): Enables network access such as PROFIBUS, PROFINET, and Ethernet/IP.
• Power Supply Board: Provides 24 V DC main power supply and supports redundant power supply.
• Cabinet Mounting Bracket: DIN-rail mounting for easy on-site arrangement.

4. Typical Application Fields

• Petroleum and Natural Gas: Emergency Shutdown System (ESD), explosion-proof valve interlocking
• Chemical Industry: Process safety interlocking, leak detection, and automatic shutdown
• Electric Power: Boiler and steam turbine protection, power distribution automation
• Metallurgy: High-temperature furnace safety control, interlock protection
• Pharmaceuticals: Safety monitoring of GMP critical processes
• Marine and Offshore Engineering: Power system safety interlocking, fire protection system

5. Installation and Maintenance Points

Installation

1. Use DIN-rail for fixation, ensure the module is installed horizontally, and leave sufficient heat dissipation space.
2. Follow IEC 61850/IEC 61131-3 standards during wiring, and distinguish the terminal blocks for safety signals and ordinary signals.
3. Connect the power supply first, then connect communication and I/O to prevent module damage caused by misoperation.

Commissioning

1. Use engineering software provided by HIMA (such as HIMA Safety-Suite) for parameter configuration, function testing, and safety verification.
2. After completion, conduct on-site function simulation to verify the correct response of all safety logic in case of faults.

Daily Maintenance

1. Regularly check the power supply, cable connections, and heat dissipation.
2. Read fault logs through the built-in diagnostic function and replace faulty sub-modules in a timely manner.
3. Follow version compatibility requirements during software upgrades to ensure safety functions are not affected.

Spare Parts Management

————————————————————————————————————-
