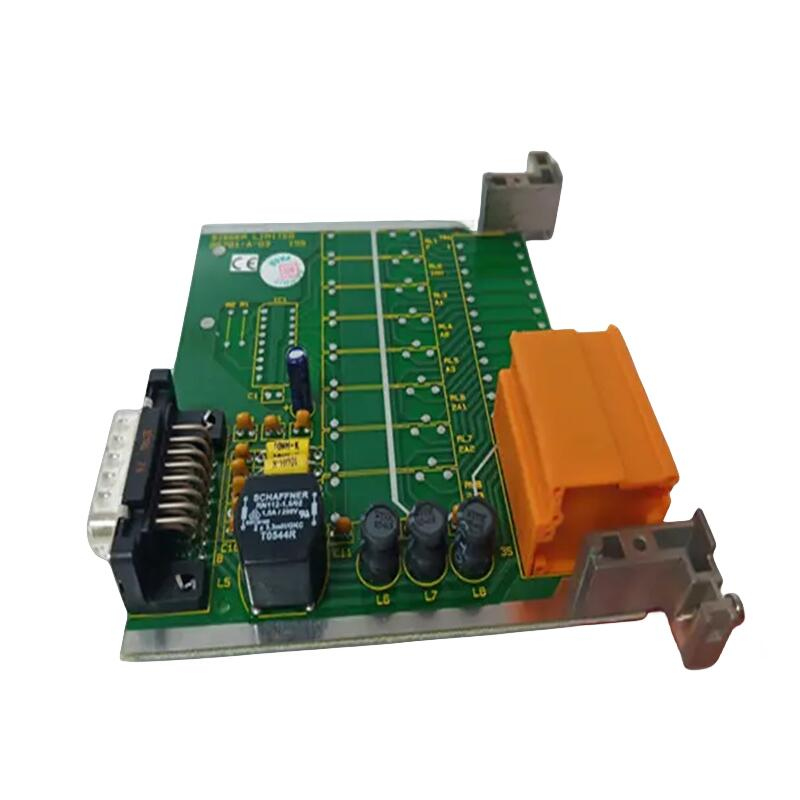

HIMA Z7138/3331/C5/P2

HIMA Z7138/3331/C5/P2 is a safety control module belonging to HIMA’s product series, designed for high-risk industrial processes (such as petrochemical, chemical, power, and pharmaceutical industries). It meets the SIL 3 safety level specified in the IEC 61508/61511 standards.

1. Parameters (Key Technical Specifications)

• Power Supply: 24 V DC (±10%), with internal redundant voltage stabilization.
• Operating Temperature: -25 °C ~ +55 °C (wide-temperature range optional).
• Protection Level: IP20 (for DIN rail mounting), with optional explosion-proof enclosure.
• Communication Interfaces: Modbus RTU, RS-232/RS-485, Ethernet (optional PROFIBUS, PROFINET, etc.).
• I/O Count: 8 ~ 32 points (depending on specific cards).
• Redundancy Mode: Dual CPU, dual power supply, and hot-swappable redundant cards.
• Safety Functions: Fault detection, safety monitoring, self-test, safety timer, and safety output (safety relay).
• Certifications: IEC 61508 SIL 3, CE; compliance with EN 50128/50129 (optional).

2. Product Features

• High Reliability: Adopts dual-CPU and dual-power-supply redundancy design, supporting hot-swap replacement to ensure uninterrupted system operation.
• Modular Structure: Features a standard 19-inch rack and supports DIN rail mounting, facilitating on-site expansion and maintenance.
• Multi-Protocol Compatibility: Optional multiple communication cards (Modbus, PROFIBUS, PROFINET, Ethernet/IP) enable seamless connection with upper-level systems.
• Safety Performance: Complies with SIL 3 requirements, with built-in fault detection and safety monitoring functions, and provides safety output.
• Heat Dissipation Design: Fanless heat dissipation reduces maintenance costs and improves reliability.

3. Structure and Composition

• Main Body: Metal enclosure, integrating dual CPUs, redundant power supplies, and communication processing units.
• Communication Cards: Pluggable cards supporting multiple industrial protocols.
• Power Supply Module: Accepts 24 V DC input, provides internal voltage stabilization, and offers redundant power.
• I/O Cards: Digital/analog input/output cards selected based on requirements.
• Diagnostic Interfaces: RS-232/RS-485, used for on-site debugging and fault diagnosis.
• Mounting Accessories: DIN rail brackets, fixing screws, terminal blocks, etc.

4. Application Fields

• Petrochemical Industry: Hazardous process control, leakage detection, and emergency shutdown.
• Power System: Safety monitoring and protection for power plants and substations.
• Pharmaceutical and Food Industry: Batch control and hygiene safety.
• Steel, Cement, and Automobile Manufacturing: Safety guarantee for high-temperature and high-pressure processes.
• Other Industrial Automation: Any process control system requiring SIL 3-level safety.

5. Installation and Maintenance

Installation

1. Fix the module on the DIN rail according to the instruction manual, ensuring the protection level meets on-site requirements.
2. Connect the power cable (24 V DC) and check the polarity.
3. Insert the selected communication cards and I/O cards into the corresponding backplane slots, and complete the wiring.
4. Perform the first power-on self-test through the diagnostic interface to confirm that all redundant components work normally.

Maintenance

1. Regularly check the connection status of power supplies and communication interfaces to prevent loosening or corrosion.
2. Use built-in diagnostic functions or external monitoring systems for fault early warning, and replace faulty cards in a timely manner (hot-swap supported, no shutdown required).
3. Conduct cleaning and dust-proof treatment according to on-site environment (temperature, humidity) to keep the heat dissipation channel unobstructed.
4. If firmware upgrade or communication protocol card replacement is needed, follow the safe process: “Back up configuration first → Power off → Replace cards → Power on → Restore configuration”.

————————————————————————————————————-
