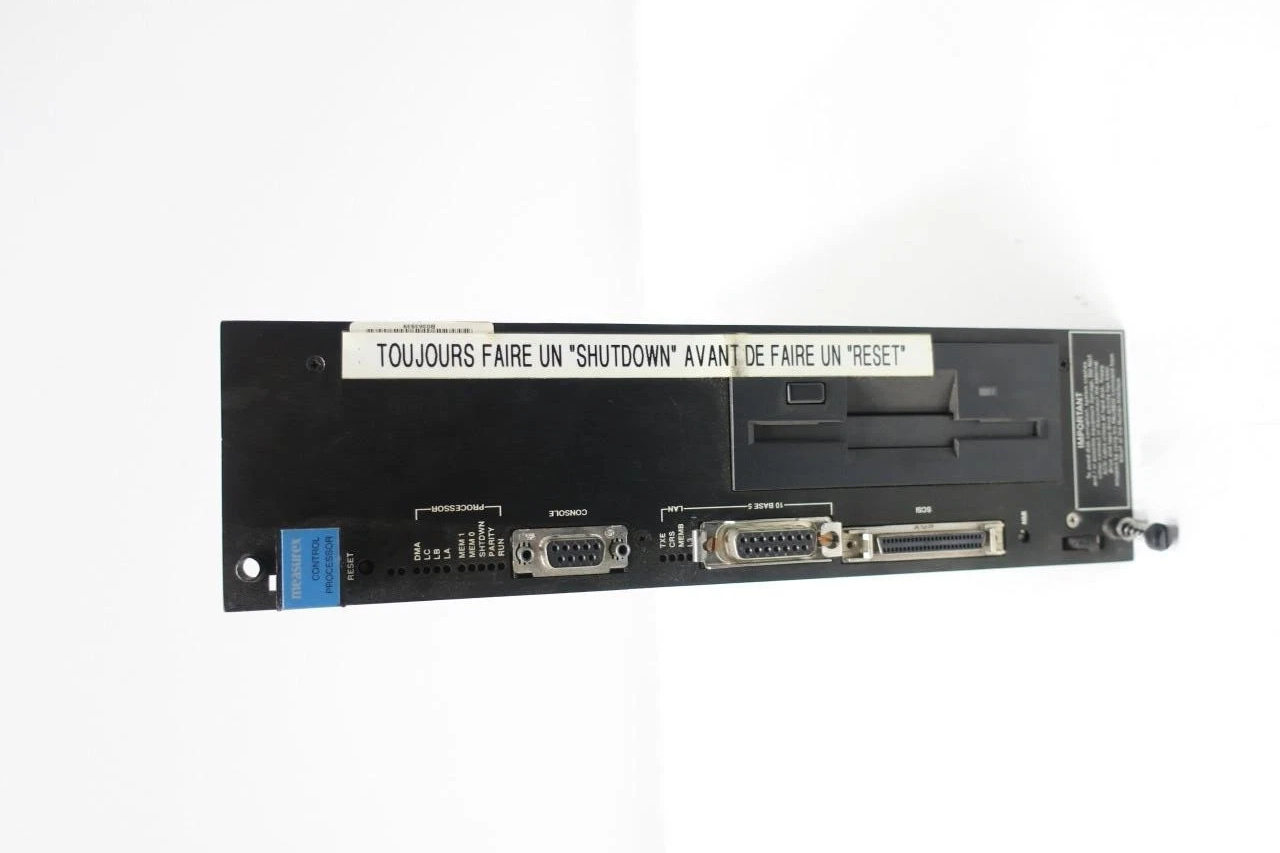

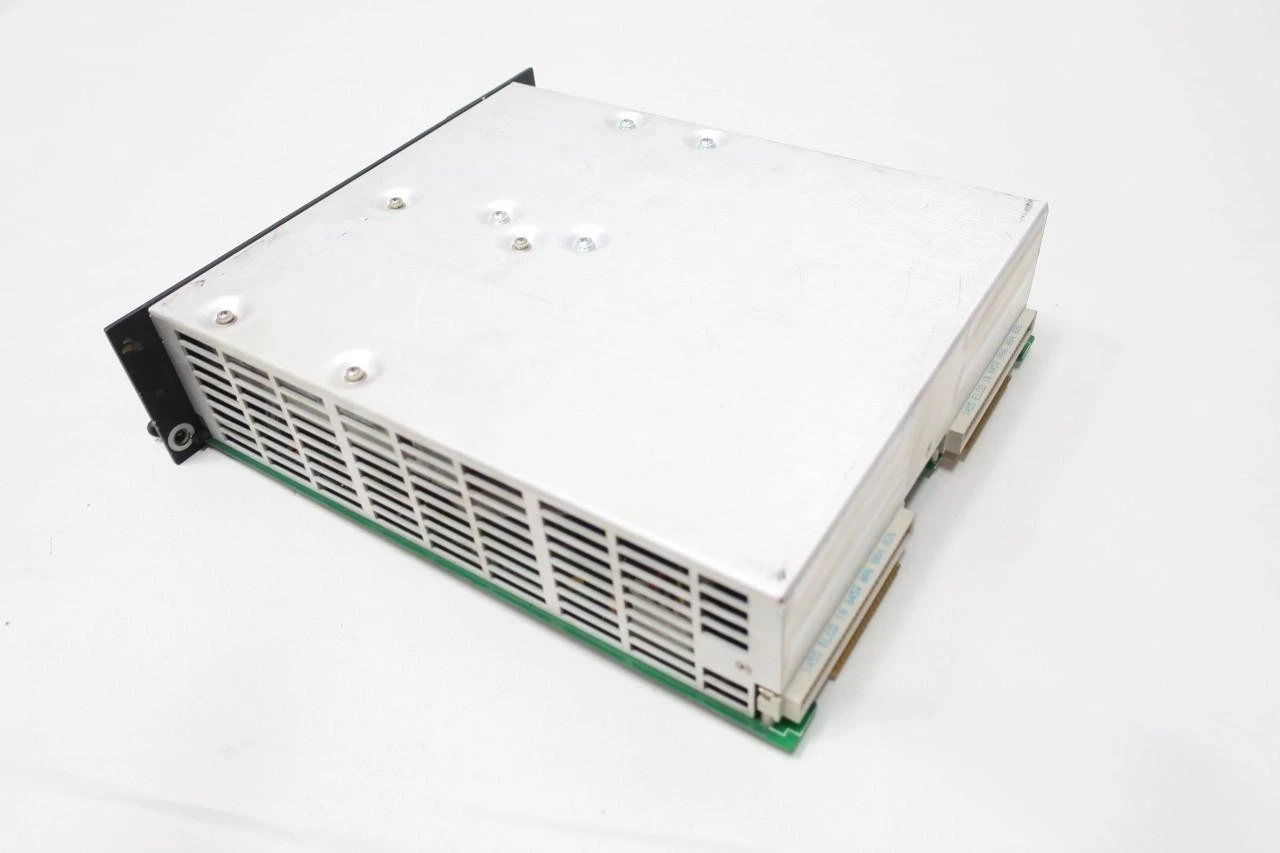

Honeywell 09472010 Control Processor
Honeywell 09472010
Overview
The 09472010 is part of Honeywell’s PC-Board series of control processors. It is designed to provide high-speed digital signal processing and communication capabilities for fieldbuses such as Unit-EC and UAP. Typically installed in control cabinets, it acts as a bridge between upper-level systems (e.g., Experion, Triconex) and on-site I/O modules, enabling data collection, command issuance, and fault diagnosis.
Key Specifications
- Operating Voltage: 24 V DC (120 V AC optional)
- Operating Temperature Range: -20 °C ~ +70 °C (industrial grade)
- Communication Interfaces: RS-485, Unit-EC, UAP, Modbus TCP (optional)
- Processor Speed: Approximately 40 MHz (based on a 32-bit microprocessor)
- I/O Capacity: Supports 64 digital inputs and 64 digital outputs (via expansion modules)
- Storage: 8 MB internal Flash, with support for external EEPROM expansion
- Electromagnetic Compatibility: Compliant with IEC 61000-4-2/4-3/4-4 standards
Product Features
- Modular Design: Utilizes pluggable PCBs for quick on-site replacement or upgrades.
- Multi-Protocol Compatibility: Built-in protocol stacks for Unit-EC, UAP, and Modbus TCP, supporting hybrid network access.
- High Reliability: Industrial-grade temperature range, anti-interference design, and redundant power interfaces meet the continuous operation requirements of critical facilities.
- Diagnostic Functions: Equipped with self-fault detection, error logging, and remote firmware upgrade capabilities to reduce maintenance costs.
- Compact Size: Standard 2U rack height, compatible with most control cabinet layouts.
Structure and Composition
- Main PCB: Includes microprocessor, memory chips, communication transceivers, and power management modules.
- Interface Card: Provides multiple fieldbus or Ethernet ports, selectable based on on-site requirements.
- Heat Sink: Combines a metal heat sink with a fan mount to ensure thermal management under high loads.
- Connection Cables: Used for high-speed data transmission with upper-level control systems or on-site I/O modules.
Typical Application Areas
- HVAC and air conditioning system control in large commercial buildings
- Distributed control networks in industrial process automation (chemical, petroleum, pharmaceutical industries)
- Environmental monitoring and energy management in data centers
- Integrated building automation platforms in public facilities such as airports and railway stations
Installation and Maintenance Guidelines
- Installation Environment: Should be placed in a cabinet with good ventilation, free from strong magnetic fields or electromagnetic interference, with a minimum of 10 cm of heat dissipation space around it.
- Power Wiring: Adopt dual power input with parallel redundancy to ensure automatic switching when the main power supply fails.
- Grounding Requirements: All metal enclosures must be reliably grounded to prevent malfunctions caused by electrostatic discharge.
- Initial Commissioning: Use Honeywell’s configuration software (e.g., ControlBuilder) for network address assignment, protocol parameter setting, and I/O mapping.
- Regular Inspection: Conduct hardware connection checks, heat sink cleaning, and firmware version upgrades every 6 months.
- Fault Diagnosis: Check error codes through the built-in self-test log or remote monitoring platform. Common faults include communication timeouts, power supply abnormalities, and I/O failures.
————————————————————————————————————-
