GE Fanuc IC200UDR005-BD IC200UEX011-BPLC Module

Short Description:

The GE Fanuc ES1221 (Model: IC754VSI12CTD) is a human-machine interface (HMI) device of the QuickPanel View series manufactured by GE Fanuc Automation.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Brand: GE

Manager: Jinny

E-mail: sales5@xrjdcs.com

Tel: + 86-18250705533

( WhatsApp )Wechat: + 86-18250705533

Warranty: one year

In stock: In stock

Send email to us Download as PDF

Product Detail

Product Tags

GE Fanuc IC200UDR005-BD IC200UEX011-BPLC

1. Product Overview

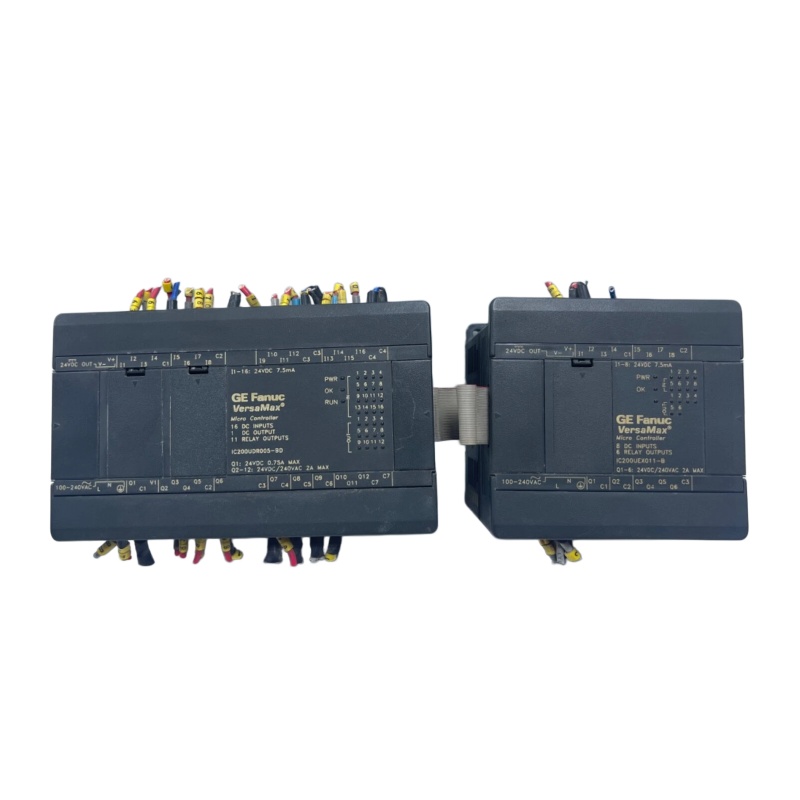

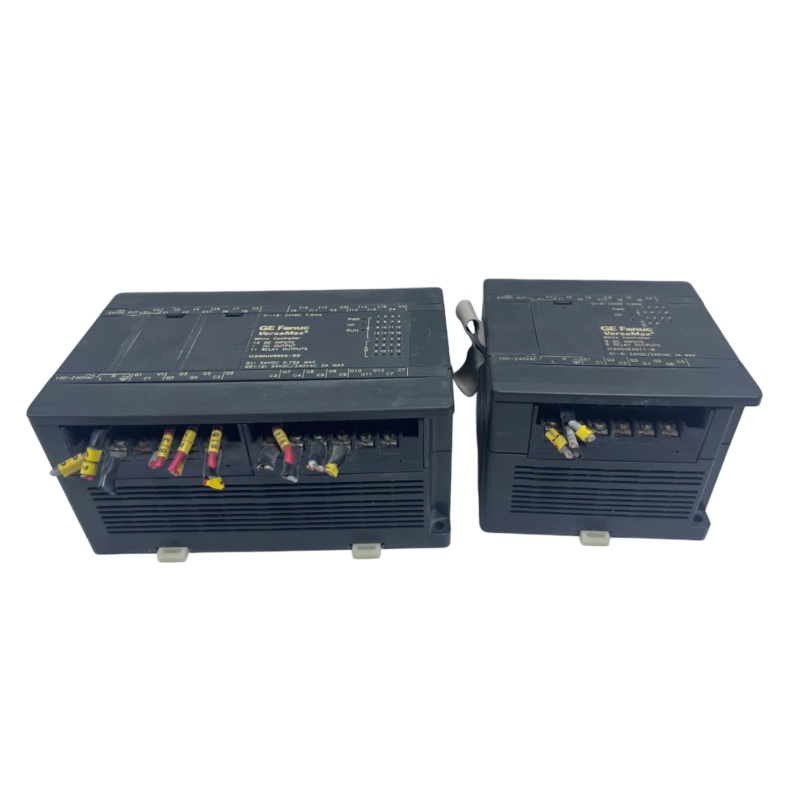

1.1 IC200UDR005-BD

The IC200UDR005-BD is a micro PLC module of the GE Fanuc VersaMax Micro series. It is a compact controller integrating input, output and control functions, belonging to the GE Fanuc VersaMax product family. Currently, this series of products is under the jurisdiction of Emerson Automation Solutions.

The IC200UEX011-B is a 14-point DC input expansion module in the GE Fanuc VersaMax I/O expansion module series. It serves as an expansion unit for the

2.1 Detailed Parameters of IC200UDR005-BD

Item	Specification Parameters
Processor	32-bit RISC CPU, 60 MHz main frequency
Memory	512 KB Flash memory, 256 KB RAM
Power Requirement	120/240 VAC, 26 VA power consumption
Input	16 × 24VDC input points
Output	11 × relay output points, 1 × 24VDC output point
Total I/O Points	28 points
Communication Interface	RS-232, RS-485, Ethernet
Protocol Support	SNP, SNP x Breakless, RTU master-slave mode
Expansion Capability	Supports a maximum of 4 expansion modules
Dimensions	150mm (W) × 76mm (D) × 90mm (H)
Weight	Approx. 0.3-0.5kg
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% (non-condensing)

2.2 Detailed Parameters of IC200UEX011-B

Item	Specification Parameters
Module Type	14-point DC input expansion module
Series	GE Fanuc VersaMax I/O Expansion Series
Installation Method	Mounted on VersaMax I/O carrier
Input Signal Type	DC input signal

3. Product Features

3.1 Features of IC200UDR005-BD

Compact Design: With a small size of 150×90×76mm, it is suitable for automated control systems with limited installation space.
High Performance: Equipped with a 32-bit RISC CPU and 60MHz main frequency, it supports floating-point arithmetic operation to ensure efficient system operation.
Powerful Functions: It is configured with dual Ethernet ports, supports Device Level Ring (DLR) network topology and daisy-chain connection mode, which effectively reduces the number of Ethernet switches required. Meanwhile, it is built with a real-time clock and 2 analog potentiometers, and supports floating-point arithmetic.
Easy Integration: Compatible with multiple I/O expansion and communication options, realizing flexible system expansion and seamless integration.
High Reliability: The product has passed ISO 9001 quality certification, with stable and reliable operating performance.

3.2 Features of IC200UEX011-B

Flexible Expansion: Effectively expands and increases the number of I/O points of the VersaMax PLC system to meet diverse system control requirements.
Hot-Swappable Support: The module can be replaced during system operation without shutting down the equipment, improving system maintenance efficiency.
Automatic Addressing: No traditional hardware configuration or handheld programming device is required, realizing convenient and fast module deployment.

4. Structure and Composition

4.1 Structure of IC200UDR005-BD

Housing Material & Protection Grade: Adopts polycarbonate housing with IP20 protection grade, featuring industrial durability.
Appearance Features: Equipped with a dark gray industrial-grade metal housing, printed with the official GE Fanuc brand logo on the surface.
Interface Configuration: Integrated with dual Ethernet ports, RS-232/RS-485 serial ports and dedicated input/output terminal blocks to meet diverse communication and wiring demands.
Indicator Lights: Built-in LED indicator lights to display real-time operating status and fault diagnosis information of the module, facilitating equipment monitoring and troubleshooting.

4.2 Structure of IC200UEX011-B

Installation Carrier: Compatible with VersaMax terminal-type and compact I/O carriers for flexible installation.
Module Attribute: Standard VersaMax system I/O expansion unit.
Wiring Mode: Adopts spring-clamp wiring terminals for fast and stable wiring.
Optional Accessories: The IC200TBM005 spring-type auxiliary I/O terminal strip can be equipped as required to expand wiring functions.

5. Application Fields

5.1 Applicable Industries

Discrete Manufacturing Control: Production line automation control
Packaging Industry: Automatic control of packaging machinery
Material Handling: Logistics automation system operation control
Food & Beverage: Food processing and packaging automation
Water Treatment: Water supply and drainage system control
Energy Management: Industrial energy monitoring and control systems
Concrete Batching Plant: Automatic control of concrete batching systems
Process Control: Factory automation and industrial process control

5.2 System Capabilities

Maximum support for 64 modules in a single system
Maximum support for 2048 I/O points in total
Single expansion support for up to 256 I/O points

6. Installation and Maintenance

6.1 Installation Environment Requirements

The module shall be installed inside a closed equipment with IP54 protection grade to avoid external environmental interference.
Applicable to anti-static environments such as concrete or wooden floors.
In static-prone environments, staff shall touch grounded objects for static discharge before contacting the equipment to prevent static damage to the module.

6.2 Installation Method

Standard DIN rail mounting is adopted for quick and fixed installation.
A maximum of 8 I/O modules and optional functional modules can be installed per rack.
A single VersaMax PLC or VersaMax I/O station can be equipped with up to 8 racks in total.
