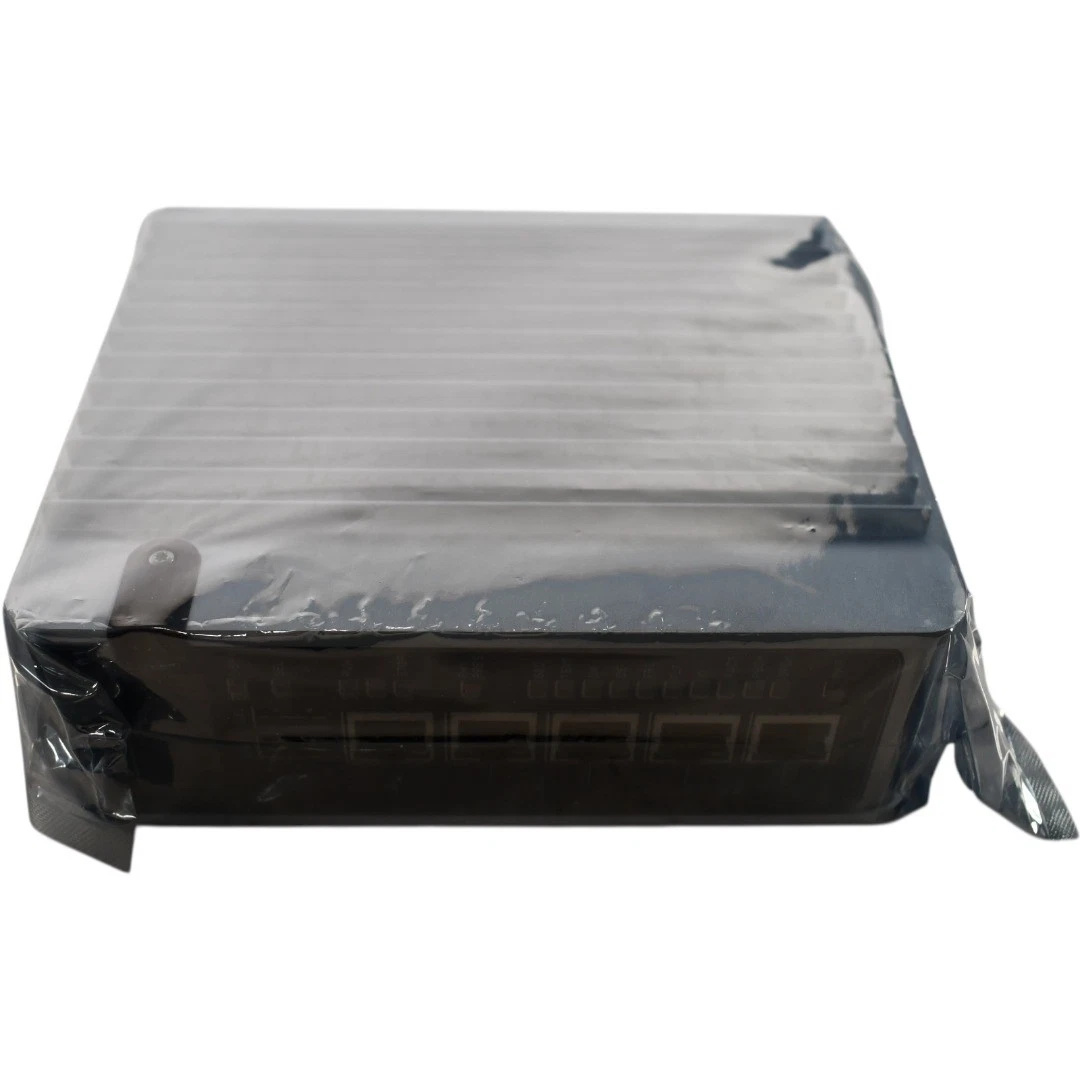

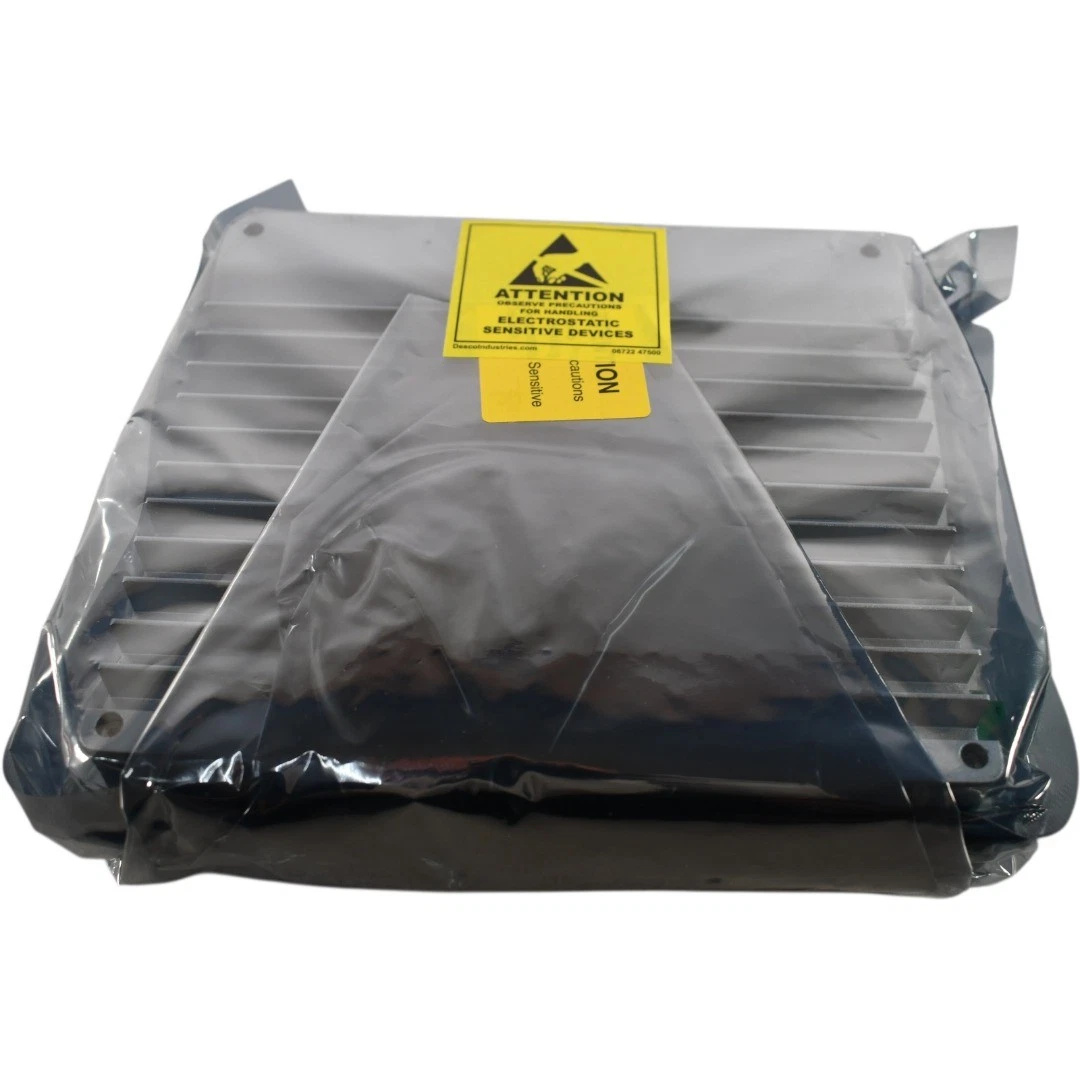

GE Fanuc IC695CPL410 Controller
GE Fanuc IC695CPL410
The IC695CPL410 is a rackless CPU module of the PACSystems™ RX3i series manufactured by GE Fanuc Automation (now part of Emerson). It is embedded with a Linux operating system, combining real-time deterministic control performance with the capabilities of the open Linux platform.
Key Specifications
|
Item
|
Specification
|
|---|---|
|
Part Number
|
IC695CPL410
|
|
Processor
|
1.2 GHz AMD G-Series Quad-Core Processor
|
|
Operating System
|
Embedded Ubuntu 16.04 LTS Server Linux, full root access available
|
|
Storage
|
64 MB Configurable Storage Space
|
|
Input Voltage
|
18 V – 30 V DC
|
|
Maximum Input Power
|
20 W
|
|
Display
|
OLED Display
|
|
Security Features
|
Secure Boot + Trusted Platform Module (TPM)
|
|
Network Interfaces
|
4 Ethernet ports, configurable with static IP or DHCP
|
|
Operating Temperature
|
-40 °C to 70 °C (ambient air temperature)
|
|
Wire Gauge
|
24 – 16 AWG for power and I/O connectors
|
|
Certifications
|
ABS, DNV-GL, French, British and other marine classification society certifications
|
Data Source: Official product information
Product Features
Real-Time Control + Open Linux Platform
Based on the real-time deterministic control capability of PACSystems RX3i, the module integrates Ubuntu 16.04 LTS Linux system. Users are granted full root access to freely install software and conduct secondary development.
Edge Computing Capability
Pre-installed with PACEdge technology to support customized data processing, including edge/cloud analysis, cloud storage, Web HMI, data logging and other industrial application scenarios.
High Availability
Supports simplex and redundant configuration modes, with a redundant switchover time as low as 300 milliseconds, ensuring stable and continuous system operation.
Multiple Programming Languages
Compatible with IEC 61131-3 standard programming languages such as Ladder Diagram and Structured Text, providing flexible programming options for diverse industrial control demands.
Network Security Assurance
Equipped with Secure Boot and TPM to effectively guarantee system security. It supports regular software upgrades, patch installation and antivirus updates to resist network risks.
Rich Network Interfaces
Configured with four independent Ethernet ports, which can meet multi-scenario and multi-protocol industrial communication requirements.
Wide Temperature Operation
Capable of stable operation in harsh industrial environments with ambient temperatures ranging from -40 °C to 70 °C.
Structure and Composition
Form Factor: Adopts a rackless CPU module design, eliminating the need for traditional rack-mounted backplane structures with higher integration and simpler deployment.
Interfaces: Equipped with power input connectors, I/O connectors (applicable for 24-16 AWG wires) and four Ethernet ports to cover power supply, signal transmission and network communication functions.
Security Hardware: Integrated with TPM chip and Secure Boot mechanism to monitor and protect system integrity and prevent unauthorized access and tampering.
Application Fields
Industrial Automation Control: Serves as a high-performance core controller for advanced PLC/PAC systems, applicable to various automated production lines and industrial control systems.
Gas Turbine Systems: Suitable for core control scenarios in the energy industry such as gas turbine operation control.
Edge Computing & Industrial Internet of Things (IIoT): Leverages the open Linux platform to realize edge data collection, real-time analysis and cloud data upload, empowering industrial intelligent upgrading.
Web HMI & Visualization: Supports local operation of Web human-machine interface on the controller to realize on-site intuitive human-computer interaction and equipment status visualization.
Marine and Offshore Engineering: Certified by authoritative marine classification societies including ABS and DNV-GL, it adapts to complex marine working conditions and is widely used in ship automation control systems.
Installation and Maintenance
Installation Environment: As an open-type device, the module must be installed in an industrial cabinet that complies with IEC60664-1 Pollution Degree 2 standards to avoid equipment damage caused by dust, moisture and other environmental pollution.
Power Supply Requirements: The input power must be provided by a certified SELV (Safety Extra-Low Voltage) DC power supply to ensure operational safety.
Wiring Specifications: Use 24 – 16 AWG wires for power and I/O cable wiring, and install in strict accordance with local national, state and local electrical codes and industry standards.
Operating Temperature Control: Ensure the ambient air temperature around the equipment is maintained within the range of -40 °C to 70 °C during operation.
Network Configuration: Ethernet ports support static IP configuration or automatic IP acquisition via DHCP, adapting to diverse network deployment modes.
Software Maintenance: Supports system iteration and security maintenance through Linux system, including software version upgrades, vulnerability patch installation and antivirus database updates.
————————————————————————————————————-
