1. Overview

2. Technical Specifications

2.1 Main Technical Parameters

2.2 Operating Environment Requirements

• Altitude Standard: Exceeds the requirements of EN50178 standard
• Dust Pollution Standard: Exceeds the requirements of IEC 529 standard
• Humidity Standard: Exceeds the requirements of EN50178 standard
• Operating Humidity Range: 5% to 95% non-condensing environment

3. Product Features

• High Reliability Design: The circuit board features stable performance and high durability with low failure rate
• Integrated Power Management: It not only realizes power distribution, but also supports precise power regulation and real-time power monitoring
• Passive Monitoring Circuit: Equipped with fuse circuit status feedback and AC amplitude monitoring functions to ensure stable system operation
• High-Density Modular Design: Adopts compact modular structure, suitable for harsh industrial operating environments
• Industrial-Grade Standard: All replacement components adopt industrial-grade specifications, meeting or exceeding OEM industry standards
• Built-in Self-Diagnosis Function: The transmission signal of each channel loops back to the receiving end, supporting automatic self-test and fault diagnosis

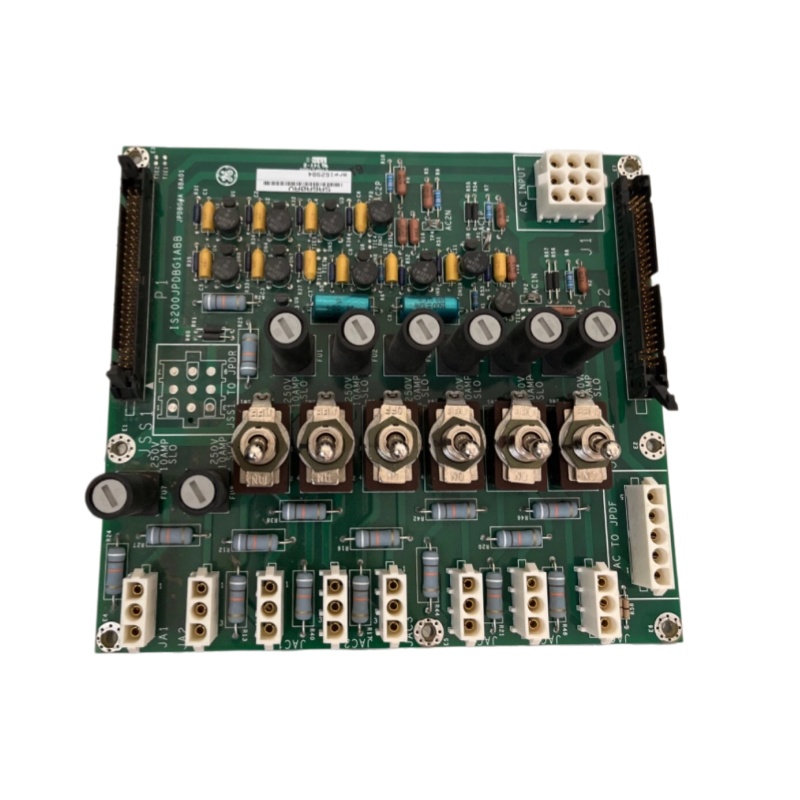

4. Structure and Composition

4.1 Physical Components

• Connectors: Equipped with 6 switches, 10 plugs and 2 ribbon cable connectors
• Electronic Components: Consists of TP test points, resistors, transistors, capacitors and conductive sensors
• Protection Devices: Built-in 8 fuses for circuit overcurrent and overload protection
• Interfaces: J1 is an 8-pin interface (exclusively for factory testing); P2 interface supports EIA RS-232 and Mostek RS-422 communication protocols

4.2 System Architecture

• The module is a core component of the IS2020JPDB module series
• The PPDA pack supports installation of 1 or 2 IS200JPDBG1A circuit boards
• Classified as a module of the Versamax Series 90-30 PLC system

5. Application Fields

5.1 Main Application Industries

• Gas turbine control
• Steam turbine control
• Industrial automation systems
• Power industry
• Iron and steel metallurgy industry
• Cement production industry
• Shipbuilding industry
• Paper manufacturing industry
• Power station motor control
• Water treatment systems

5.2 Compatible Systems

• GE Mark VI series control systems
• GE Mark V compatible systems
• Distributed Control System (DCS)
• Programmable Logic Controller (PLC) systems
• VMEbus systems

6. Installation and Maintenance

6.1 Installation Precautions

• Store and operate the module in an electrostatic-sensitive protected environment
• Keep the module in an anti-static storage box under recommended environmental conditions
• Ensure standard electrical connection and reliable safety grounding during installation
• Comply with all specifications of EN50178 and IEC 529 standards for installation and operation

6.2 Maintenance Suggestions

• Regularly inspect the operating status and functional integrity of the circuit board
• Avoid improper operation, overloading and environmental damage to the module
• Use professional testing tools for fault detection, diagnosis and repair in case of module failure
• Support accelerated maintenance solutions to quickly restore system normal operation
