GE IC697CPX935-JE Central Processor Unit

Short Description:

The GE IC697CPX935-JE is a high-performance central processing unit (CPU) developed by General Electric (GE), belonging to the GE Intelligent Platforms / GE Fanuc Series 90-70 PLC product line.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Brand: GE

Manager: Jinny

E-mail: sales5@xrjdcs.com

Tel: + 86-15359273791

( WhatsApp )Wechat: + 86-15359273791

Warranty: one year

In stock: In stock

Send email to us Download as PDF

Product Detail

Product Tags

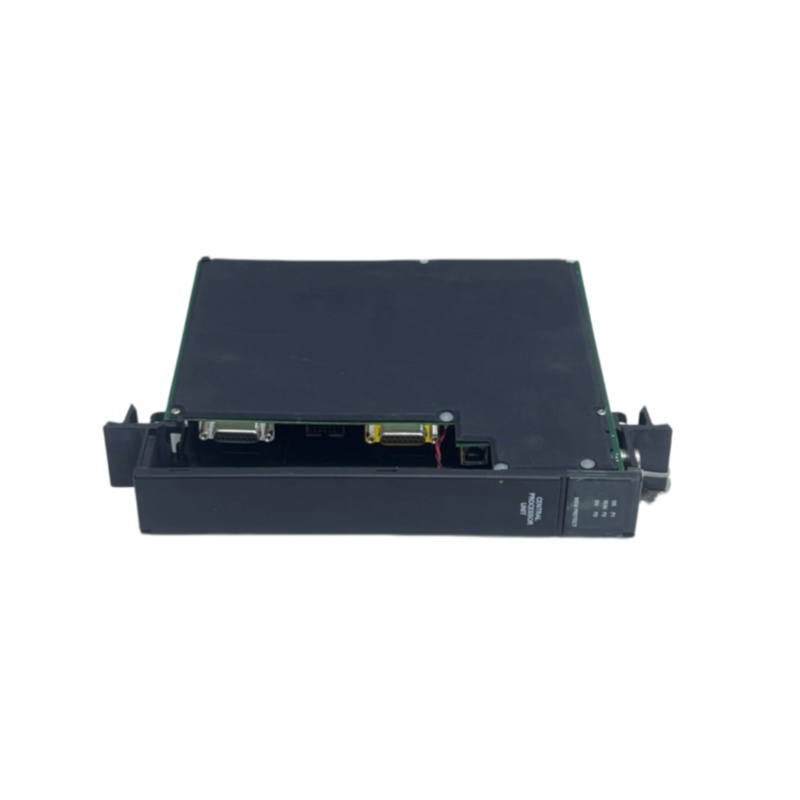

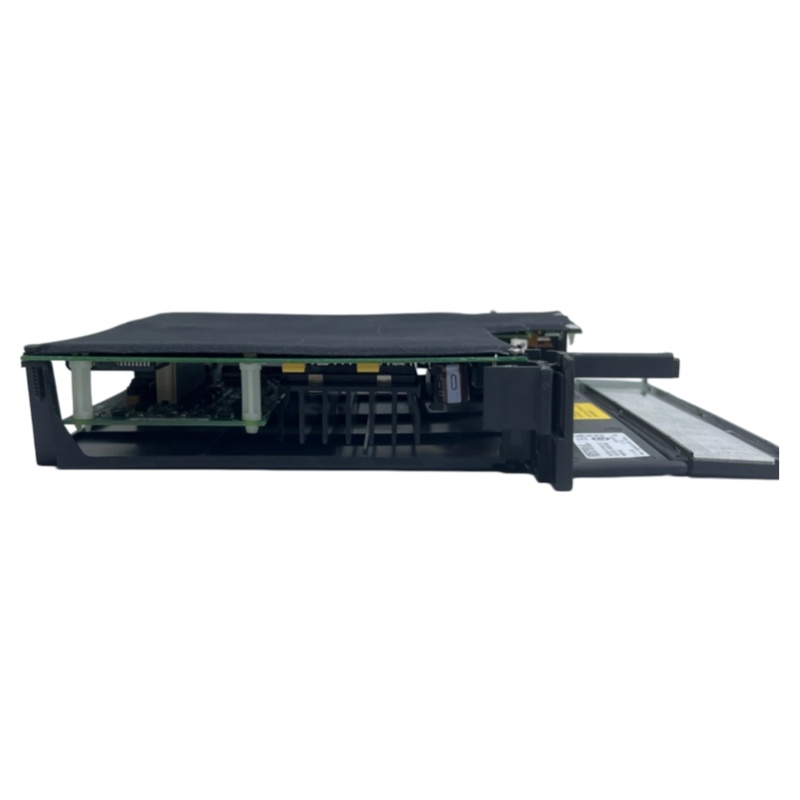

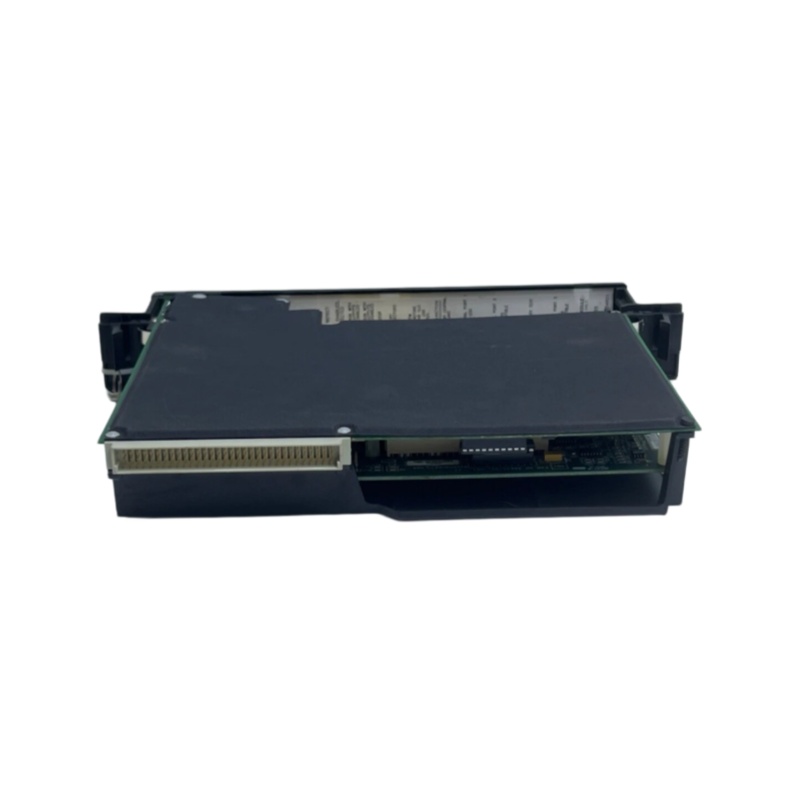

GE IC697CPX935-JE

1. Product Overview

The GE IC697CPX935-JE is a high-performance central processing unit (CPU) developed by General Electric (GE), belonging to the GE Intelligent Platforms / GE Fanuc Series 90-70 PLC product line. Manufactured by GE Fanuc, this single-slot PLC CPU module is designed for efficient and reliable industrial machinery control, featuring seamless integration and communication capabilities with a wide range of input/output (I/O) modules.

2. Technical Specifications

Parameter Item	Specification
Microprocessor	96 MHz with 32-bit floating-point arithmetic capability
Floating-Point Calculation Speed	One floating-point calculation executed every 0.4 microseconds
Main Memory	1 MB RAM
Memory Retention Time	6 months without power supply
Battery Service Life	5 years at 20°C (Model: IC697ACC701)
I/O Capacity	Supports up to 12K discrete I/O and 8K analog I/O
Discrete I/O	Maximum 3072 discrete I/O points
Serial Ports	3 ports (Port 1: RS-232; Port 2 & 3: RS-485)
Bus Current	3.1 Amps drawn from 5V bus
Operating Temperature	0-60°C (requires 70 CFM forced air cooling)
Storage Temperature	-40-70°C

3. Product Features

High-Performance Processor: Equipped with a 96MHz microprocessor to support high-speed floating-point arithmetic operations
Rich Communication Interfaces: Built-in 3 serial ports, with optical coupling isolation for Port 2
Large-Capacity I/O Support: Compatible with a combined configuration of up to 12K discrete I/O and 8K analog I/O points
VME Standard Compliance: Conforms to VME Standard C.1, enabling communication with intelligent option modules via the backplane
Modular Design: Adopts a durable all-metal structure for easy installation and maintenance
Diversified Expansion Capabilities: Supports expansion of IC660/IC661 bus controllers, communication modules, LAN interface modules and other auxiliary modules
High Time Accuracy: The daily clock accuracy is within 3.5 seconds per day, and the internal timer accuracy reaches 0.01%

4. Structure and Composition

4.1 Hardware Structure

Adopts the VME C.1 form factor, which can communicate with various intelligent option modules through the rack-mounted backplane
Equipped with a 3-position run/stop control switch, controllable via software or computer terminals
Module dimensions: approximately 12.3cm × 13.8cm × 4.4cm (referenced from partial official data)

4.2 Core Components

Central Processing Unit Module (IC697CPX935)
Lithium Battery (IC697ACC701): Used for data backup of internal memory during power outage
Rack Fan Assembly: Available in three voltage versions (120VAC/240VAC/24VDC)

5. Application Fields

Industrial Automation: Applicable to diverse industrial automation scenarios including iron smelting, steel rolling and other manufacturing processes
Advanced Control Systems: Ideal for high-end control systems requiring high-precision and high-speed floating-point computing capabilities
Distributed I/O Communication: Supports stable communication with distributed I/O modules, adapting to complex and harsh industrial environments
Large-scale machinery equipment control
Complex industrial process control
Distributed control system (DCS) operation
Remote I/O monitoring and control
