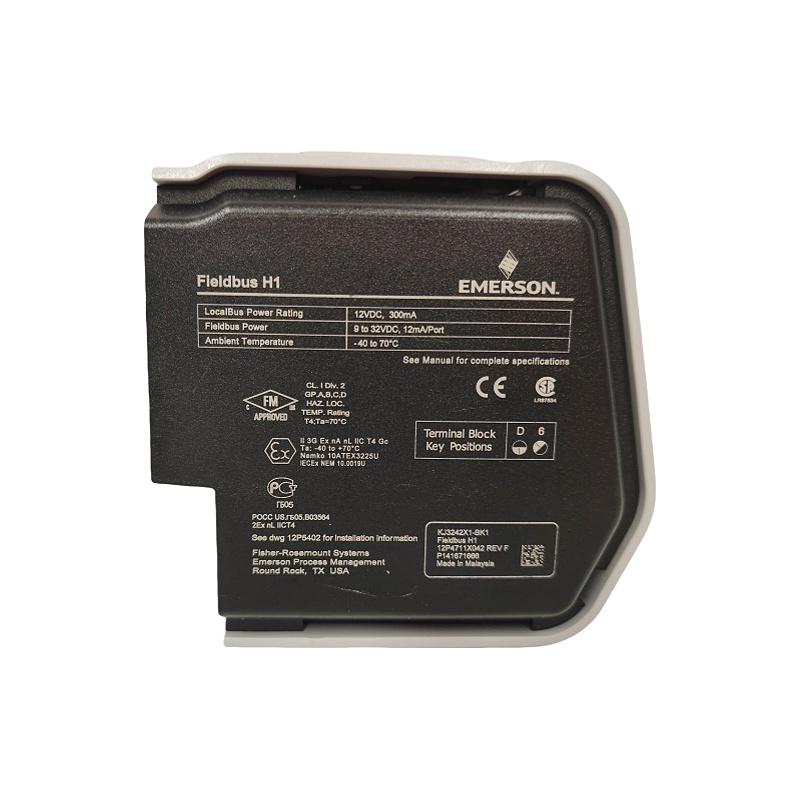

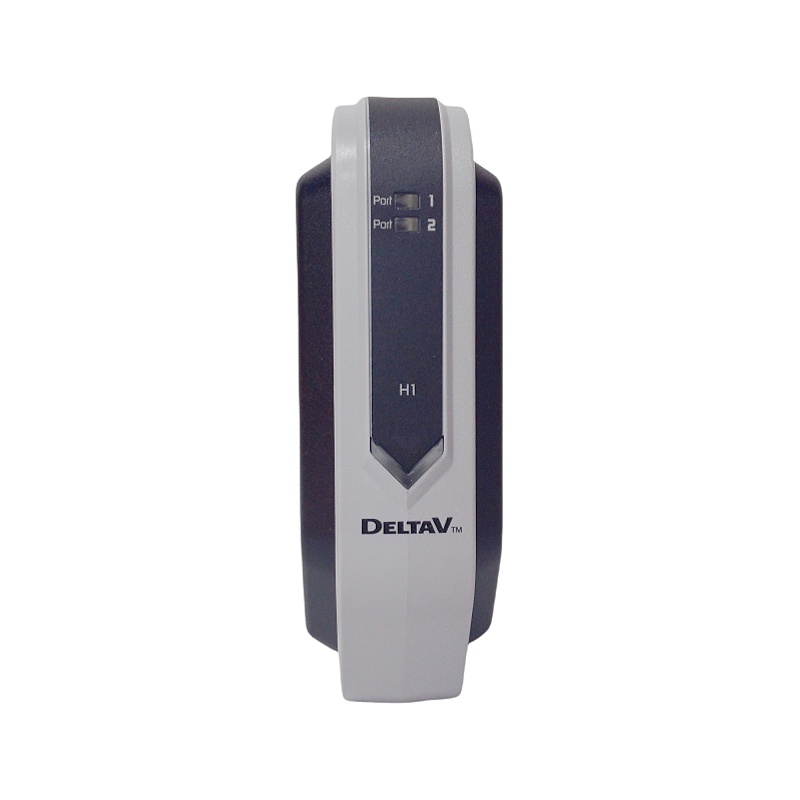

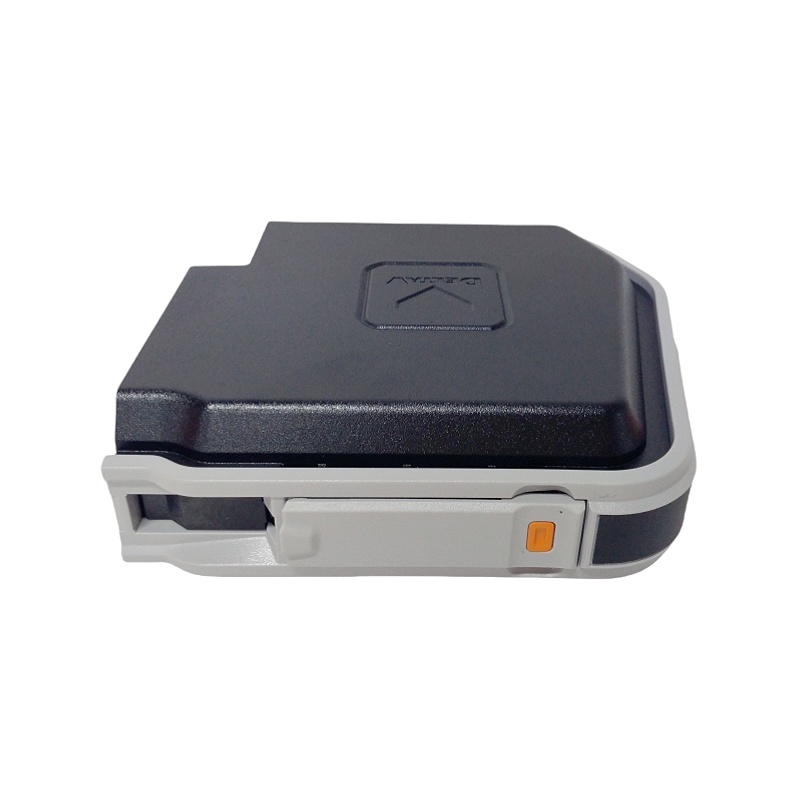

EMERSON KJ3242X1-BK1

1. Overview

2. Main Technical Specifications

• Model: KJ3242X1-BK1 12P4711X042
• Type: Fieldbus H1 Card / Analog Expansion Module (can be used as an I/O card)
• Power Supply: Local bus: 12 V DC 300 mA; Field circuit: 32 V DC 12 mA per port
• Input/Output: Supports analog inputs (for temperature, pressure, flow, etc.) and analog outputs (-10 V to +10 V or 4-20 mA)
• Communication Protocols: Foundation Fieldbus H1; compatible with DeviceNet, Profibus, EtherNet/IP, etc. (noted by some suppliers)
• Operating Temperature: -40 °C to +70 °C (or -40 °C to +85 °C)
• IP Rating: IP20 (standard) / IP66 (explosion-proof version)
• Dimensions: Approximately 85 mm × 50 mm × 35 mm (or 90 mm × 60 mm × 35 mm)
• Weight: 0.2 kg to 0.5 kg
• Certifications: IECEx, Explosion-proof Ex d IIC T6, ISA-S71.04 (G3)

3. Product Features

• High Reliability: Designed with dustproof, waterproof, shock-resistant (10 g), and vibration-resistant (0.5 g) capabilities to adapt to harsh industrial environments.
• Multi-Protocol Compatibility: In addition to Foundation Fieldbus H1, it supports DeviceNet, Profibus, EtherNet/IP, etc., facilitating system integration.
• Modular Expansion: Can be used as an analog expansion module to increase I/O channels, supporting various analog signals such as temperature, pressure, and flow.
• Easy Configuration: Parameter setting and monitoring are performed via DeltaV Control Studio software, with support for hot swapping and on-site diagnostics.
• Explosion-Proof Design: Complies with the Ex d IIC T6 explosion-proof rating, suitable for hazardous areas such as petroleum and chemical industries.

4. Structure and Composition

• Card Body: Features an aluminum alloy housing that provides IP66 protection.
• Power Module: Separates the local bus power supply circuit (12 V DC) from the field circuit (32 V DC).
• I/O Interfaces: Includes several analog input/output terminals (available options: 4-20 mA, 0-10 V, -10-10 V) and a communication port (H1 bus).
• Explosion-Proof Junction Box (for some models): Used for cable connection in hazardous areas, with Ex d protection.

5. Typical Application Areas

• Process Automation: Process control systems in industries such as petroleum, natural gas, chemicals, pharmaceuticals, food and beverages, and water treatment.
• HVAC and Cold Chain: Temperature control for refrigeration and freezing equipment.
• Industrial Heating and Cooling: Accurate monitoring and regulation of temperature, pressure, and flow.
• Mechanical and Equipment Monitoring: On-site data collection for injection molding machines, compressors, pump stations, etc.
• Hazardous Areas: The explosion-proof junction box is used for cable connection in flammable and explosive environments such as petroleum and chemical industries.

6. Installation and Maintenance Key Points

1. Pre-Installation Check: Confirm the model and complete accessories; verify the power supply voltage, wiring diagram, and fieldbus compatibility.
2. Installation Method: Supports DIN rail or wall-mounted installation; explosion-proof versions require the use of an explosion-proof junction box and compliance with IECEx installation specifications.
3. Wiring: Follow the manufacturer-provided wiring diagram to connect the local bus (12 V DC) and field circuit (32 V DC), ensuring the current per port does not exceed 12 mA.
4. Software Configuration: Use DeltaV Control Studio or the corresponding manufacturer’s configuration software to perform I/O mapping and communication parameter settings.
5. Commissioning: Conduct on-site signal calibration (for temperature, pressure, etc.), check communication status, and confirm the availability of alarm and diagnostic functions.
6. Maintenance: Regularly inspect the tightness of the power supply and junction box; clean the housing to prevent dust accumulation; conduct annual re-inspection of explosion-proof certification; update firmware or driver software to maintain compatibility.
7. Troubleshooting: Use the diagnostic LEDs on the card or the fault logs of the DeltaV system to locate issues; replace the module or junction box if necessary.

————————————————————————————————————-
