ABB PM866AK01

1. Overview

The ABB PM866AK01 is a high-integrity central processor unit specifically developed for the ABB AC800M compact DCS automation system. As the core computing and scheduling hub of the control system, it undertakes all core tasks including system logic operation, process algorithm calculation, I/O signal scheduling, and upper and lower computer data interaction. The model official part number is 3BSE076939R1, belonging to the mainstream high-performance CPU series of AC800M controllers.

Adopting industrial-grade MPC866 processor architecture, the PM866AK01 features stable operating frequency, large-capacity application memory and diversified industrial communication expansion capabilities. It supports single and redundant backup operating modes, meets high-reliability industrial control scenarios, and can adapt to complex process control requirements such as multi-task scheduling and high-speed cycle operation. With strict industrial standard manufacturing and wide environmental adaptability, it guarantees long-term 24/7 stable operation of petrochemical, power, metallurgy and other heavy industrial automation systems.

2. Technical Specifications

3. Product Features

High-Performance Industrial Computing Core: Equipped with 133MHz MPC866 industrial processor and 64MB large-capacity memory, it supports multi-task parallel operation and complex process algorithm calculation, ensuring fast response and stable scheduling of DCS system control logic.

Diversified High-Speed Communication Ports: Built with dual Ethernet control ports and dual RS-232C serial interfaces, supporting system network communication, equipment debugging and tool configuration. Isolated serial port design effectively improves anti-interference ability of on-site data transmission.

Flexible Redundant Control Configuration: Supports single and dual redundant operating modes. The redundant configuration realizes seamless switching of the main and standby controllers, completely avoiding system shutdown caused by single-point failure and improving system operation reliability.

Powerful I/O Expansion Capability: A single controller supports up to 96 I/O modules, and redundant mode supports 84 modules, which can meet the large-scale signal acquisition and control requirements of medium and large industrial automation systems.

Industrial-Grade Environmental Adaptability: Strictly designed for industrial scenarios, it works stably in 0°C~+55°C industrial temperature range, resists workshop vibration, electromagnetic interference and temperature changes, and adapts to long-term continuous heavy-load operation.

Standard Task Scheduling Mechanism: Supports 32 independent control tasks and 64 application programs, with a minimum control cycle of 10ms, realizing precise and high-frequency process control for industrial production lines.

Perfect AC800M System Compatibility: Original matching core CPU module of ABB AC800M system, seamlessly compatible with series baseplates, I/O modules and upper monitoring software, supporting one-stop system integration and debugging.

4. Structure and Composition

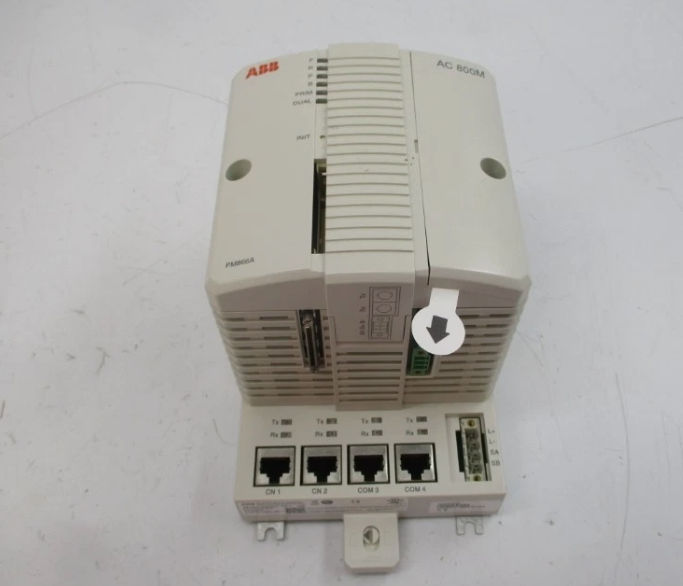

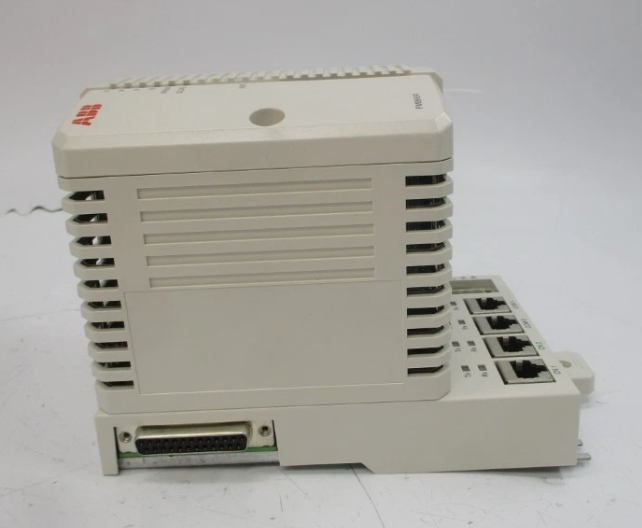

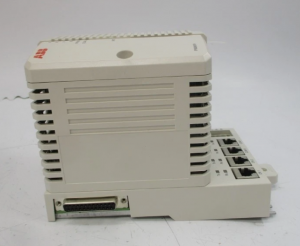

The ABB PM866AK01 adopts a modular integrated controller structure, which is composed of a core CPU main board and a matching TP830 baseplate. The main board integrates industrial processor core, high-capacity storage unit, Ethernet communication circuit, serial signal processing module and power regulation unit, realizing integrated design of computing, storage and communication.

The whole module adopts industrial high-density PCB layout and conformal coating protection technology, which is moisture-proof, dust-proof and anti-corrosion. The standard rail-mounted structure is convenient for cabinet installation and fixed wiring. The independent power supply filtering and anti-interference circuit ensures stable operation of the core processor in complex electromagnetic environments. The modular split design facilitates later equipment maintenance, module replacement and system upgrade iteration.

5. Application Fields

Power & Energy Industry: Widely used in thermal power, hydropower and new energy power plant DCS systems, responsible for boiler control, turbine scheduling, power distribution monitoring and auxiliary equipment automatic control.

Petrochemical Industry: Applied in oil and gas exploitation, refining and chemical process automation systems, realizing stable scheduling of production process logic, real-time signal acquisition and safety interlock control.

Metallurgy & Building Materials: Used in metallurgical smelting, cement production and glass processing automation control systems to support high-precision and high-stability process control of heavy industrial equipment.

Water Treatment & Environmental Protection: Suitable for urban sewage treatment, industrial water supply and environmental protection monitoring systems, realizing automatic operation and data monitoring of water treatment processes.

Manufacturing & Process Industry: Applied in pharmaceutical, papermaking, food processing and other process industries, providing stable core computing support for automated production lines and batch process control systems.
