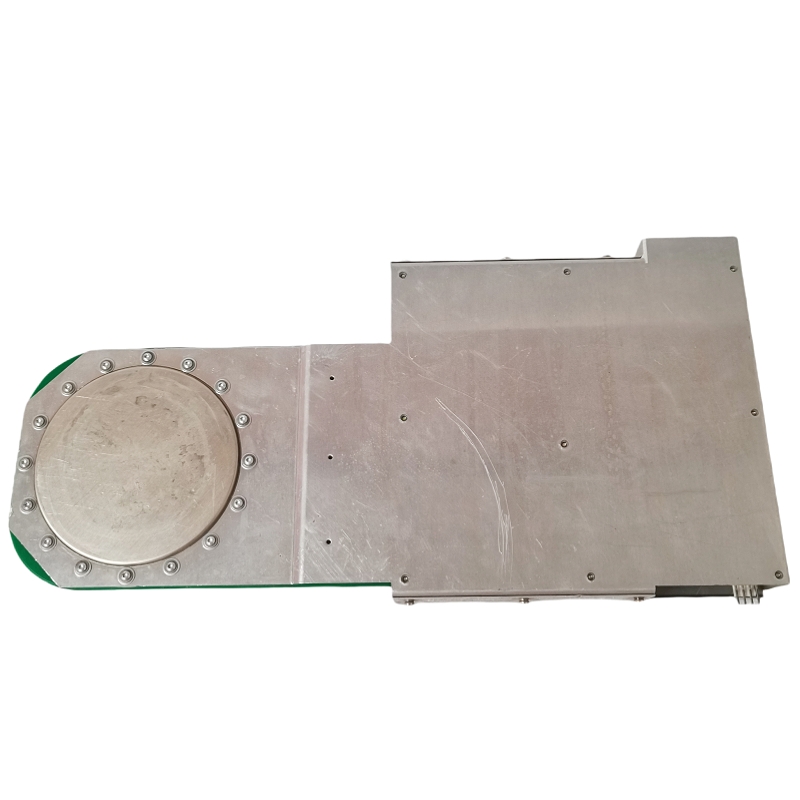

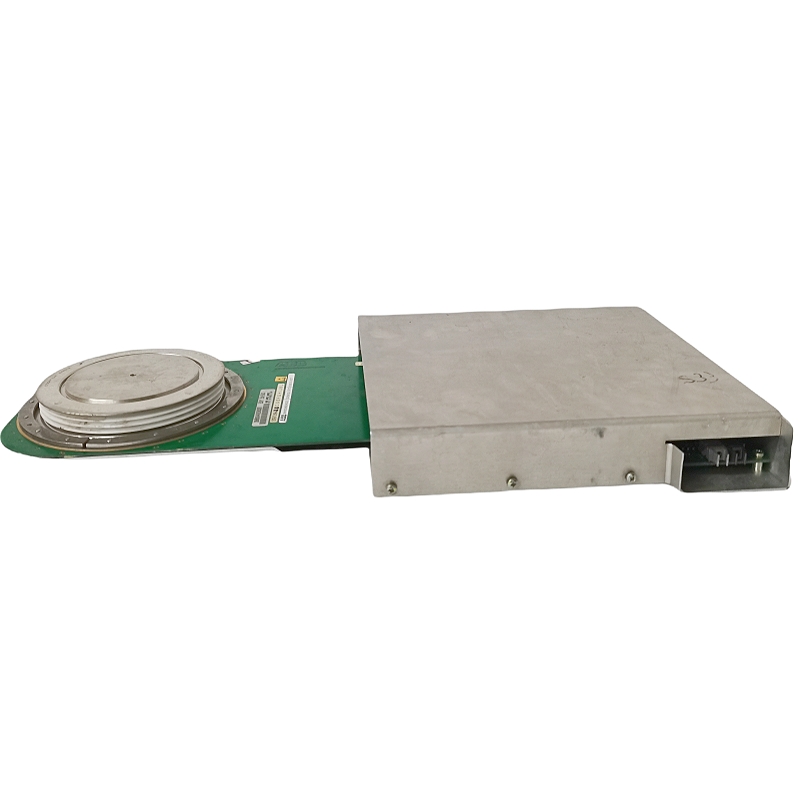

ABB 5SHY35L4503 3BHB004693R0001

5SHY35L4503 3BHB004693R0001 is a high-voltage Integrated Gate-Commutated Thyristor (IGCT) module under ABB’s 5SHY series. Designed specifically for power electronics and industrial automation systems, it features high current capacity, high voltage tolerance, fast switching speed, and high reliability.

Key Technical Specifications

• Rated Voltage: 4500 V (up to 6000 V maximum)
• Rated Current: 3500 A (5250 A maximum current)
• Switching Speed: Approximately 1 µs
• Operating Temperature Range: -40 ℃ ~ +150 ℃
• Dimensions/Weight: About 300 mm × 300 mm × 100 mm, weighing approximately 10 kg
• Package/Structure: Disc thyristor, heat sink, metal housing, and modular packaging for easy installation and maintenance.

Product Features

• High Voltage & Current Capacity: Reliable operation at 4500 V and 3500 A, suitable for high-power conversion and rectification scenarios.
• Fast Switching: 1 µs switching time meets high-frequency control requirements.
• Wide Temperature Adaptability: Operating temperature range of -40 ℃ ~ +150 ℃ ensures stability in harsh environments.
• Modular Structure: Compact design, easy to mount on DIN rails or panels. Optimized heat sink design reduces overheating risks.
• High Reliability: Adopts ABB’s advanced semiconductor technology and anti-interference design, ensuring long service life and low failure rate.

Structure and Composition

• Thyristor Chip (Asymmetric IGCT)
• Heat Sink (Metal or aluminum alloy, ensuring rapid heat dissipation)
• Packaging Housing (IP20 protection rating, powder-coated metal)
• Terminals/Wiring Board (Supports high-current bolt connection)

Typical Application Fields

• High-Voltage Direct Current (HVDC) Converter Stations
• Power Grid Peak Shaving and Energy Storage Systems
• Wind Power and Photovoltaic Inverters
• Rail Transit Traction Power Supply
• High-Power Motor Drives and Frequency Converters in Industrial Manufacturing
• Other power electronic devices requiring high-current and fast-switching capabilities.

Installation Guidelines

• Mount using DIN rails or screws to ensure mechanical stability.
• Wire according to the instruction manual, paying attention to positive and negative polarity and control signals (3.3 V TTL).
• Use a multimeter to check circuit continuity after installation, and confirm no short circuits before power-on.
• Monitor indicator lights during operation (steady green for normal operation). Stop and inspect immediately in case of abnormalities.

Maintenance Recommendations

• Regular Inspection (Quarterly): Check heat sinks for dust accumulation and clean with compressed air if necessary.
• Terminal Fastening: High-current terminals are prone to loosening; inspect and retighten regularly.
• Performance Testing (Semi-annually): Use an IGCT tester to verify key parameters such as switching time and on-state voltage drop.
• Abnormality Handling: Stop operation immediately and replace the module if the indicator light flashes red or the system alarms.

————————————————————————————————————-
