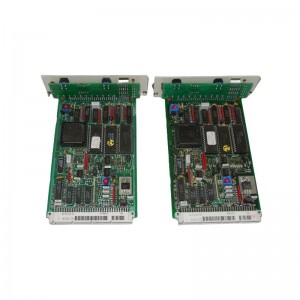

ABB GDD471A001

Product Overview

The ABB GDD471A001 is a high-performance, high-isolation gate driver component purpose-built for IGBT or IGCT power semiconductor modules used in ABB medium-voltage and high-voltage variable frequency drives and high-power industrial drive systems. As the critical interface component connecting the control stage and the power stage within ABB drive systems, it undertakes the essential task of converting low-voltage PWM control signals into high-voltage isolated gate pulses with sufficient drive current and steep rise edges, thereby achieving precise turn-on and turn-off control of power switching devices.

This model is widely deployed across ABB’s ACS800, ACS1000, and ACS6000 series medium-voltage and high-voltage drives, playing a critical role in high-power applications such as steel rolling mills, mine hoists, marine propulsion systems, and large compressors. As the active component closest to the power semiconductors within the drive system, its electrical performance and long-term reliability directly influence the operational stability and service life of the entire frequency converter installation.

Product Parameters

Structure and Composition

The ABB GDD471A001 follows the mature gate driver hardware architecture of ABB’s high-power drive systems. Physically, the module is organized into four main functional areas: the input interface and signal conditioning section, the isolation transmission section, the high-side drive power amplification section, and the protection and status feedback section.

The input interface and signal conditioning section is located at the low-voltage side edge of the module, receiving PWM switching commands from the main control board (such as the AMC or NDC board) via pin headers or flat cables. This area includes shaping circuits and level-shifting circuits that convert the control-side logic signals into modulated signals suitable for isolation transmission. Simultaneously, this section also receives fault signals fed back from the high-voltage side, conditioning them and returning them to the main controller through optocouplers or digital isolators.

The isolation transmission section represents the core design essence of the GDD471A001. Depending on the specific version, this area may employ pulse transformers or enhanced capacitive/magnetic coupling digital isolation chips. The pulse transformer solution offers extremely high common-mode transient immunity (CMTI), maintaining signal integrity even under the thousands of volts per microsecond dv/dt transient conditions commonly found in large drives. The digital isolation solution offers advantages in transmission delay consistency and duty cycle fidelity. This section also integrates an isolated DC-DC power module, converting the 24 VDC input from the low-voltage side into the floating power supplies required by the high-side drive circuitry (typically +15 V and –5 V to –10 V), which float relative to the power emitter/emitter bus.

The high-side drive power amplification section receives the isolated PWM signals and amplifies them through a push-pull bipolar transistor or MOSFET output stage, generating high-peak-current pulses that meet the gate charge requirements of the IGBT/IGCT. The output stage employs carefully designed resistor-diode networks to independently adjust the turn-on and turn-off gate resistances, thereby separately optimizing turn-on speed and turn-off speed to strike a balance between switching losses and electromagnetic compatibility. The turn-off path typically includes a negative voltage supply rail to ensure that the power semiconductors remain reliably blocked during the off-state, preventing dv/dt-induced parasitic turn-on.

The protection and status feedback section integrates multiple protection detection circuits, including:

• Under-Voltage Lockout (UVLO): Monitors the high-side drive supply voltage and actively blocks the output when the voltage drops below the threshold, preventing IGBTs from operating in the linear region under under-driven conditions, which could lead to overheating and failure.
• Short-Circuit/Overcurrent Detection: Identifies short-circuit events within microseconds by detecting the IGBT’s VCE(sat) or VGE threshold, initiating soft shutdown or immediate turn-off.
• Active Clamping: During the turn-off process, detects collector-emitter voltage spikes; when exceeding the set value, temporarily re-activates the IGBT to absorb the overvoltage energy, achieving overvoltage limitation.
• Status Feedback: Encodes fault status and sends it back through the isolation channel to the main control board for system logging and interlocking protection.

Key Features and Advantages

1. Optimized Drive Performance – Low Switching Losses and High Reliability

The GDD471A001 is precisely matched to the input capacitance and gate charge characteristics of ABB’s specific power semiconductor modules (such as HiPak IGBTs or reverse-conducting IGCTs). Its push-pull output stage delivers steep voltage rise and fall edges (typically < 100 ns), minimizing the switching transition times of the power devices and thereby significantly reducing turn-on and turn-off losses. Meanwhile, the independently adjustable turn-on and turn-off gate resistance networks allow optimization of the balance between switching speed and electromagnetic interference for different application scenarios.

2. Intelligent Protection – Full-Chain Safeguarding from Detection to Safe Turn-Off

This gate driver component is not merely a signal amplifier but a complete protection front-end. The integrated VCE(sat) detection circuit on the high-voltage side continuously monitors the saturation voltage drop of the IGBT during the on-state. Combined with the built-in reference threshold, it can identify short-circuit events within 2 µs and trigger protective shutdown. In conjunction with ABB’s proprietary soft-shutdown strategy, the IGBT is turned off at a controlled rate during short-circuit events, avoiding secondary breakdown caused by overvoltage from abrupt di/dt, ensuring the power semiconductors survive safely under extreme fault conditions.

3. Superior Noise Immunity – The Preferred Choice for Medium-Voltage and High-Voltage Drives

In medium-voltage and high-voltage high-power drives, the dv/dt on the power bus can exceed 10 kV/µs, accompanied by severe ground potential transients and common-mode noise. The isolation transmission stage of the GDD471A001 is specially designed, featuring a CMTI (common-mode transient immunity) of > 50 kV/µs, ensuring that PWM commands transmitted over several meters of fiber optic or cable are delivered to the high-voltage side with nanosecond-level precision and without error. The thick-film hybrid integrated circuit process and encapsulation construction further enhance its resistance to vibration, humidity, and chemical contamination, meeting the demanding environmental requirements of heavy industrial sites.

4. Plug-and-Play Compatibility – Reduced Inventory and Maintenance Complexity

As a standardized spare part for ABB drives, the GDD471A001 has its interface definitions, mounting hole positions, and electrical parameters fully locked to the corresponding power platform. On-site replacement requires no oscilloscope debugging or parameter matching—simple replacement restores system operation. This significantly shortens scheduled downtime and overhaul periods while simplifying spare parts inventory management—engineers simply order by model number without worrying about version compatibility issues.

5. Highly Integrated Thick-Film Hybrid Circuit Design

Within a limited footprint, this module integrates five major functions: drive amplification, isolated power supply, signal isolation, protection detection, and status feedback. The thick-film hybrid integrated circuit process integrates multiple bare dies and passive components onto a ceramic substrate, not only reducing size and shortening signal paths but also significantly improving temperature endurance and long-term stability. This highly integrated design reduces the number of inter-module connectors, fundamentally lowering the failure rate caused by poor contacts and vibration-induced loosening.

Application Fields

The ABB GDD471A001 is primarily integrated into the power units of ABB medium-voltage and high-voltage variable frequency drives and high-power drive systems, deployed at the front end of IGBT/IGCT power modules in ACS800, ACS1000, and ACS6000 series equipment, providing isolated gate drive for the power switches of each phase leg.

Beyond these core verticals, this component also plays an irreplaceable role in test benches and regenerative braking systems, as well as large fan and pump energy-saving retrofits. For plant owners and maintenance teams, the GDD471A001 is a standard item within ABB’s genuine spare parts system and a key consumable for ensuring equipment availability and extending power semiconductor service life.

Installation and Maintenance

Pre-Installation Preparation

Before installing or replacing the ABB GDD471A001, the entire drive must be completely de-energized and the discharge procedure completed (the DC bus capacitors must be fully discharged to a safe voltage of < 50 V, typically requiring waiting for the manufacturer-specified duration or using a dedicated discharge device). Operators must wear electrostatic discharge (ESD) protective equipment and perform operations in an ESD-safe work area.

Mechanical Installation and Connections

Secure the GDD471A001 to the bracket or heatsink frame above the power semiconductor module using insulating standoffs. Tighten the mounting screws to the specified torque value (typically 1.5–2.5 N·m), avoiding over-tightening that could cause micro-cracks in the ceramic substrate or under-tightening that could lead to vibration-induced poor contact. Ensure that the connecting leads between the driver module and the power module gate terminals (typically twisted shielded wires or dedicated gate cables) are kept as short as possible (ideally < 10 cm) to minimize parasitic inductance and resistance that would degrade switching performance.

Functional Verification and Commissioning

Send low-voltage test pulses from the main control system (typically in commissioning mode) and use a high-voltage isolated differential probe to measure the output drive voltage waveform from the GDD471A001. Confirm that the turn-on voltage (approximately +15 V), turn-off negative voltage (–5 V to –10 V), and rise/fall edge steepness meet the power module requirements.
