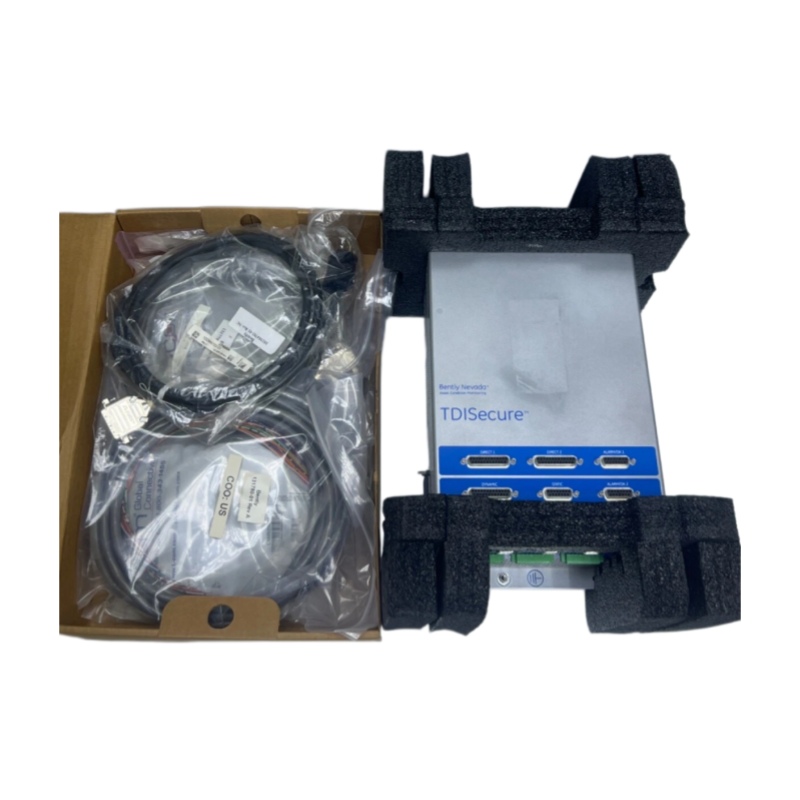

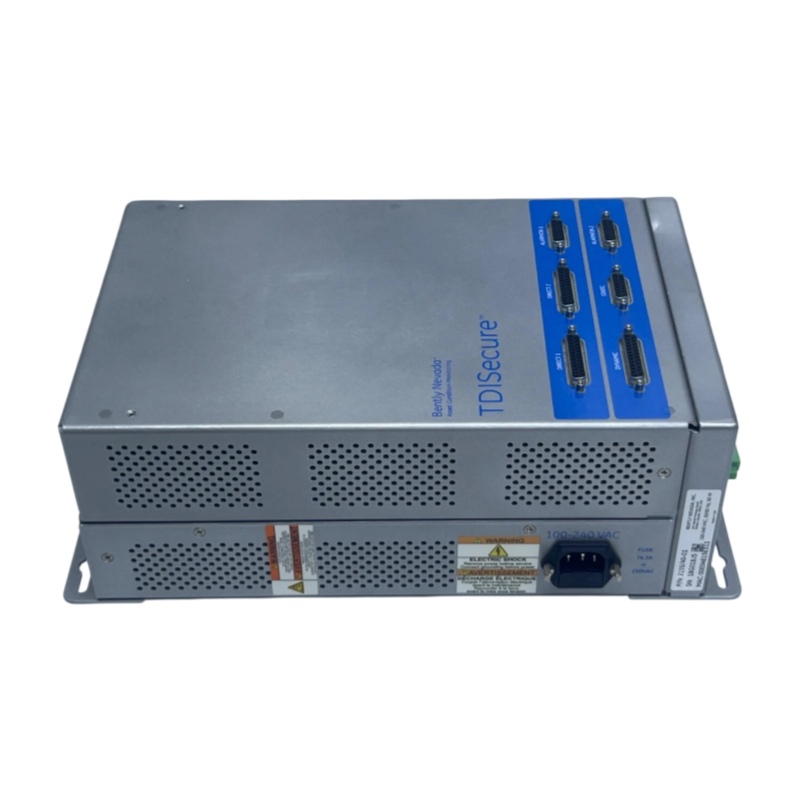

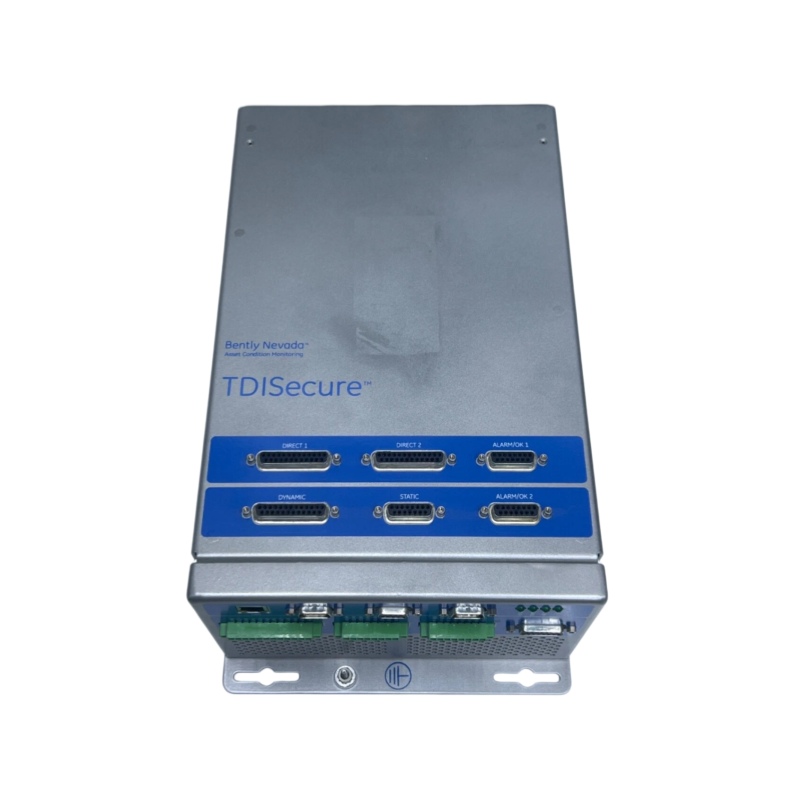

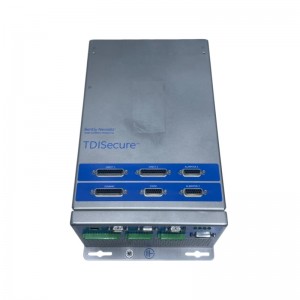

Bently Nevada TDISECURE PN2155-40-01 Detector
Bently Nevada TDISECURE PN2155-40-01
TDISECURE PN:2155/40-01 is an explosion-proof electromagnetic proximity probe launched by Bently Nevada. Specifically designed for use in high-temperature, high-pressure, and potentially explosive environments (such as chemical, oil refining, and thermal power plants), this product measures the axial displacement of rotating machinery (e.g., steam turbines, compressors, pump shafts). It real-time calculates the gap between the rotor and the casing by sensing changes in the shaft’s magnetic field, and is widely used for monitoring the axial movement of rotor shafts, serving as one of the key protective monitoring devices.
______________________________________________________________________________________________
Key Parameters
|
Parameter
|
Specification
|
Description
|
|---|---|---|
|
Rated Voltage
|
24 VDC
|
Low-voltage power supply, conventional connection method
|
|
Cable Length
|
30 meters (optional)
|
Supports long-distance installation to meet on-site needs
|
|
Operating Temperature Range
|
-40℃ to +180℃
|
Adopts anti-corrosion and explosion-proof housing, suitable for extreme environments
|
|
Protection Level
|
IP67
|
Fully dust-proof and waterproof, suitable for harsh on-site conditions
|
|
Output Signal
|
Analog Voltage Signal (0-10V)
|
Compatible with Bently Nevada monitoring systems
|
|
Measurement Range
|
0 – 8 mm
|
High-precision measurement of axial displacement
|
|
Frequency Response
|
5-15 kHz
|
Suitable for dynamic monitoring of high-speed rotating machinery
|
______________________________________________________________________________________________
Product Features
- Explosion-proof Design: Complies with international explosion-proof standards (Ex d IIC T4), ensuring safe operation in flammable and explosive gas environments.
- High-precision Measurement: Adopts the principle of electromagnetic induction, requiring no direct contact with the rotor surface, and can accurately capture tiny changes in axial displacement.
- High-temperature Resistance: Specifically designed for high-temperature environments, it can withstand high temperatures close to bearing temperatures, ensuring long-term stable operation.
- Modular Installation: Compact structure, facilitating quick installation and replacement, and reducing downtime.
______________________________________________________________________________________________
Structure and Composition
- Probe Body: The core measurement unit, including electromagnetic coils and an explosion-proof housing.
- Connection Cable: A dedicated protective cable used to transmit measurement signals and power, usually equipped with a protective sleeve.
- Mounting Bracket: Used to fix the probe position, ensuring the correct measurement distance from the rotor.
______________________________________________________________________________________________
Application Fields
- Power Plants and Gas Turbines: Monitors the axial displacement of steam turbine rotors to prevent mechanical failures caused by axial drift.
- Petrochemical Industry: Used for axial monitoring of centrifugal compressors or pump shafts to prevent leakage or damage.
- Thermal Power Generation: Monitors the axial position of steam turbine shafts to ensure safe operation.
______________________________________________________________________________________________
Installation and Maintenance Recommendations
- Installation Positioning: The probe should be installed perpendicular to the rotor shaft, and the center of the probe should be concentric with the rotor axis to avoid errors caused by eccentricity.
- Connection Inspection: After installation, check whether the cable connections are firm to prevent poor contact due to vibration.
- Regular Calibration: It is recommended to perform zero calibration regularly to ensure measurement accuracy.
- Environmental Inspection: Regularly check whether the explosion-proof housing is damaged or rusted, and replace damaged parts in a timely manner to prevent potential safety hazards.
————————————————————————————————————-
