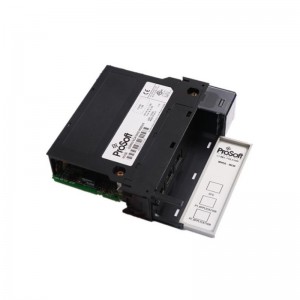

PROSOFT 5207-MNET-HART Gateway Module
PROSOFT 5207-MNET-HART
The ProSoft 5207-MNET-HART is a Modbus TCP/IP to HART Multi-drop Gateway module. It is designed to solve the communication conversion problem between Modbus TCP and HART protocols, enabling HART devices (such as intelligent transmitters) in industrial sites to connect to upper computers or SCADA systems via Ethernet (TCP/IP) for data monitoring and control.
As a member of ProSoft’s “ProLinx” series of gateway products, it is mainly positioned for communication conversion at the Field Level.
2. Core Parameters and Specifications
|
Parameter Item
|
Specification/Description
|
|---|---|
|
Communication Protocol
|
Modbus TCP/IP (Server/Client) and HART Multi-drop
|
|
HART Channels
|
4 independent HART channels (each channel supports up to 64 HART devices)
|
|
Ethernet Interface
|
10/100 Mbps RJ45 interface (supports auto-negotiation)
|
|
Modbus Function Codes
|
Supports standard function codes (Read Coils, Read Holding Registers, etc.) with no function code restrictions
|
|
Power Supply Voltage
|
24V DC (industrial standard power supply)
|
|
Operating Temperature
|
-40°C to +85°C (industrial-grade wide temperature range)
|
|
Protection Level
|
IP20 (non-protected), suitable for indoor cabinet installation
|
|
Communication Distance
|
The communication distance of HART channels depends on the power output of HART devices (up to 1500m)
|
|
Other Features
|
Supports Modbus Server/Client modes, flexible register mapping, independent channel configuration
|
-
3. Product Features
- Simplified Network Architecture: Connect multiple HART devices through a single Ethernet port, greatly reducing the complexity of on-site wiring.
- Seamless Protocol Conversion: Supports bidirectional communication between Modbus TCP and HART Multi-drop protocols with no function code restrictions, enabling complete mapping of all registers and commands of HART devices.
- Independent Channel Configuration: 4 HART channels are independent of each other and can be individually configured with different communication parameters (such as baud rate, offset), suitable for complex on-site environments.
- High Reliability: Adopts industrial-grade chip and circuit design, and supports Ethernet auto-negotiation function to ensure the stability of network connection.
-
4. Installation and Maintenance
Installation
Power Supply and Network Connection:
- Connect the 24V DC power cable to the power terminal of the module.
- Connect the Ethernet cable to the RJ45 port of the module to ensure smooth network connectivity.
HART Device Wiring:
- In accordance with HART Multi-drop specifications, connect HART devices in series to the HART channels of the module (2-wire connection is generally used).
- Pay attention to checking polarity and grounding to avoid electromagnetic interference.
-
Configuration
PC Configuration: Requires the use of ProSoft’s Configuration Builder (PCB) software (or web-based configuration tool).
Parameter Settings:
- Modbus IP Parameters: Set the module’s IP address, subnet mask, gateway, etc.
- HART Channel Parameters: Configure the baud rate, offset, and baud rate type (Master/Slave) for each channel.
- Register Mapping: Map the corresponding Modbus register addresses (usually based on 30001) according to the model of the HART device.
-
Maintenance
- Firmware Upgrade: Regularly check the ProSoft official website for firmware updates to fix potential communication bugs.
- Log Monitoring: The module usually supports error log output; on-site maintenance personnel should pay attention to the communication status of HART channels (such as signal strength, device offline status).
- Environment Check: Ensure operation within the operating temperature range (-40°C to 85°C), and avoid component failure caused by humid or extremely high-temperature environments.
————————————————————————————————————-
