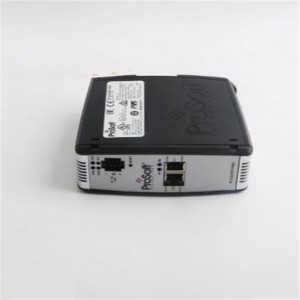

PROSOFT MVI56-DFCMR Expansion Module
PROSOFT MVI56-DFCMR
Core Overview
Positioning: As a member of the MVI56 product line, the MVI56-DFCMR is a high-efficiency communication expansion module designed for ControlLogix series PLCs, and it belongs to the third-generation ProSoft device portfolio.
Primary Functionality: It enables bidirectional data communication with a wide range of external devices (including sensors, transmitters, and other PLCs) via standard serial ports (RS-232/RS-422/RS-485).
Communication Modes: Supporting both Master and Slave modes, the module can either actively request data from connected devices or passively respond to incoming data queries.
Key Specifications
- Supply Current: 0.8A (5V DC). A power supply with a current rating of 3A or above is recommended for high-load operating conditions.
- Communication Speed: Compatible with baud rates ranging from 110 bps to 115,200 bps, ensuring seamless integration with most industrial field devices.
- Operating Temperature: Ranging from -20°C to 60°C, making it suitable for harsh industrial environments.
- Data Storage: Equipped with 10,000 16-bit register mappings (address range: 0–9999) inside the module, supporting user-defined data structures for flexible data management.
Product Features
- Dual Serial Port Design: Integrated with two independently configurable serial ports, the module supports simultaneous operation in Master-Slave, dual-Master, or dual-Slave modes, significantly enhancing the flexibility of on-site communication deployment.
- Flexible Configuration: Users can directly configure register mappings and communication protocols (such as Modbus, ASCII, DeviceNet, etc.) within the PLC program via RSLogix 5000 software, eliminating the need for additional hardware components.
- Customizable Memory: The module’s memory is fully user-definable, and it supports hot-swappable configuration backup (e.g., via CF card), greatly simplifying on-site maintenance and troubleshooting processes.
- Diagnostic Capabilities: With LED status indicators and menu-driven hardware diagnostics, the module can display communication errors and module status in real time, facilitating quick fault identification.
Structure and Components
- Single-Slot Structure: Adopting a compact single-slot design, the module is fully compatible with the 1756 ControlLogix backplane for easy installation.
- Port Layout: Typically equipped with two DB9 serial ports (supporting RS-232/RS-422/RS-485) and one 10/100 Mbps Ethernet debugging port, which is convenient for on-site debugging and firmware updates.
- Internal Components: Consists of a communication processing chip, register mapping storage unit, photoelectric isolators (to prevent electromagnetic interference), and LED indicator lights.
Typical Application Fields
- Process Control: Connects to analog or digital field devices such as temperature transmitters and pressure transmitters to enable real-time data collection and control.
- Valve Control: Controls solenoid valves and control valves via serial ports to achieve precise fluid regulation.
- Device Networking: Implements cascaded communication with other PLCs (e.g., SLC 500 series) or connects to upper-level SCADA systems for centralized data acquisition.
- Fieldbus Bridging: Acts as a bridge between various fieldbuses (e.g., Modbus, DeviceNet) and PLCs, enabling the integration of devices from different manufacturers.
Installation and Maintenance Recommendations
- Installation: It is recommended to install the module at the rear or side of the ControlLogix chassis, and secure it with M4 screws to ensure stable fixation.
- Power Supply: Ensure the power supply can provide sufficient current (3A or above is recommended), and use filter capacitors to eliminate power supply noise.
- Configuration: Configure module parameters such as baud rate, parity bit, and data bit through RSLogix 5000 software according to on-site communication requirements.
- Maintenance: Utilize the module’s LED indicators and hardware diagnostic functions to quickly locate communication errors. Regularly check the module’s heat dissipation status to prevent communication interruptions caused by overheating.
————————————————————————————————————-
